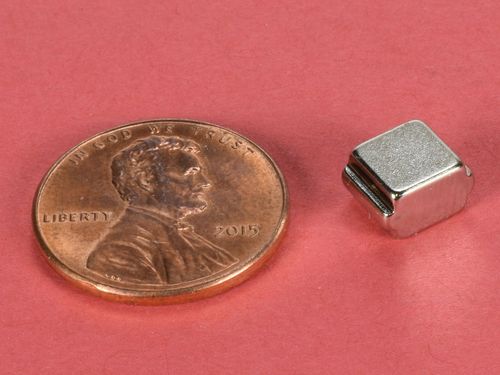

> SB443-OUT - Neodymium Rare Earth Stepped Block Magnet

1/4 x 1/4 x 3/16 Inch Neodymium Rare Earth Stepped Block Magnet N42 PN: SB443-OUT

sb443-out-neodymium-rare-earth-stepped-block-magnet

sb443-out-neodymium-rare-earth-stepped-block-magnet--thumbnail-1

sb443-out-neodymium-rare-earth-stepped-block-magnet--thumbnail-2

$0.94

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.94	1-24
$0.91	25-49	3%
$0.90	50-99	4%
$0.88	100-249	6%
$0.85	250-499	10%
$0.84	500-999	11%
$0.82	1000-2499	13%
$0.79	2500-4999	16%
$0.78	5000-9999	17%
$0.76	10000-24999	19%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1/4" length x 1/4" width x 3/16" thick , with step OUT
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight:0.055 oz. (1.57 g)
Pull Force, Case 1: 4.04 lbs
Pull Force, Case 2: 5.58 lbs
Surface Field: 5159 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

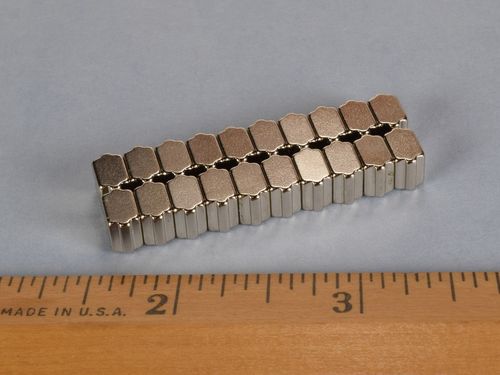

These stepped block magnets combine great holding power with outset steps on two sides. This often asked-for feature enables the use of many methods of securing the magnet in your assembly. For those trying to avoid the use of adhesives, this magnet is the answer.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
