> DE01 - Neodymium Rare Earth Disc Magnet

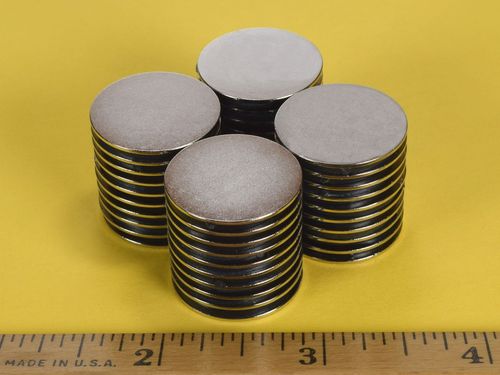

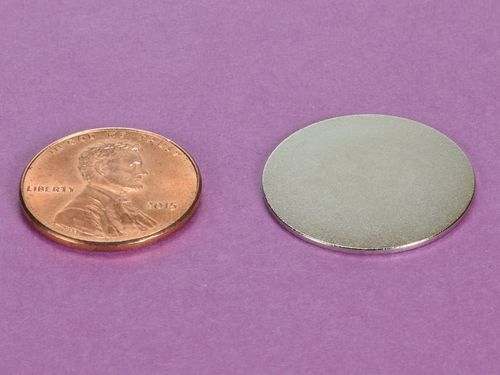

7/8 x 1/32 Inch Neodymium Rare Earth Disc Magnet N42 PN: DE01

de01-neodymium-rare-earth-disc-magnet

de01-neodymium-rare-earth-disc-magnet--thumbnail-1

de01-neodymium-rare-earth-disc-magnet--thumbnail-2

$1.36

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.36	1-9
$1.32	10-24	3%
$1.30	25-49	4%
$1.26	50-99	7%
$1.24	100-249	9%
$1.20	250-499	12%
$1.18	500-999	13%
$1.14	1000-2499	16%
$1.12	2500-4999	18%
$1.08	5000-9999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 7/8" dia. x 1/32" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.081 oz. (2.31 g)
Pull Force, Case 1: 2.08 lbs
Pull Force, Case 2: 37.00 lbs
Surface Field: 470 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This is another difficult-to-find size. These ultra-thin discs have a great strength-to-size ratio. Very useful wherever you need a thin disc with a lot of holding power.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
