> DE1 - Neodymium Rare Earth Disc Magnet

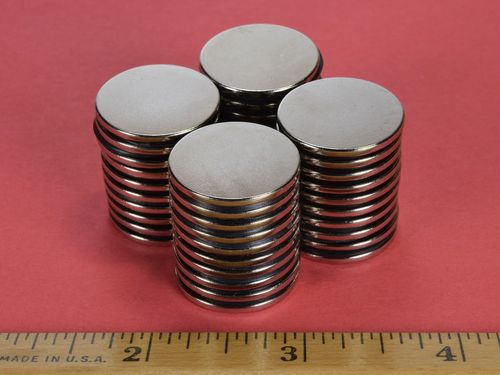

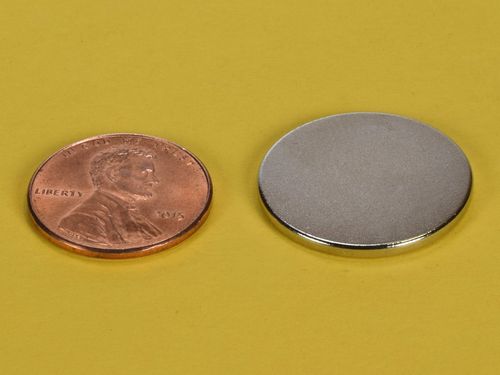

7/8 x 1/16 Inch Neodymium Rare Earth Disc Magnet N42 PN: DE1

7/8 x 1/16 Inch Neodymium Rare Earth Disc Magnet N42

7/8 x 1/16 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-1

7/8 x 1/16 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-2

$1.94

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.94	1-9
$1.90	10-24	2%
$1.86	25-49	4%
$1.81	50-99	7%
$1.78	100-249	8%
$1.73	250-499	11%
$1.69	500-999	13%
$1.64	1000-2499	15%
$1.61	2500-4999	17%
$1.56	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 7/8" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.163 oz. (4.62 g)
Pull Force, Case 1: 5.50 lbs
Pull Force, Case 2: 43.50 lbs
Surface Field: 933 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This is another difficult-to-find size. These thin discs have a great strength-to-size ratio. They are useful wherever you need a thin disc with a lot of holding power.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
