> DE6 - Neodymium Rare Earth Disc Magnet

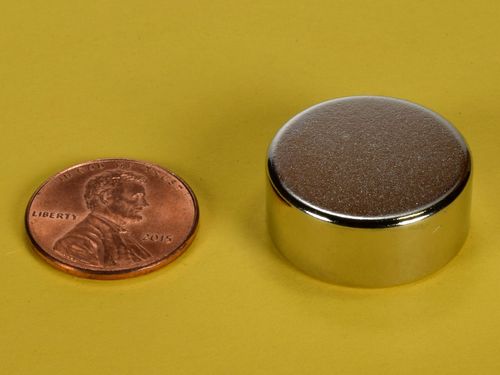

7/8 x 3/8 Inch Neodymium Rare Earth Disc Magnet N42 PN: DE6

7/8 x 3/8 Inch Neodymium Rare Earth Disc Magnet N42

7/8 x 3/8 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-1

7/8 x 3/8 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-2

$7.78

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$7.78	1
$7.61	2-4	2%
$7.43	5-9	4%
$7.26	10-24	7%
$7.08	25-49	9%
$6.91	50-99	11%
$6.73	100-249	13%
$6.56	250-499	16%
$6.38	500-999	18%
$6.22	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 7/8" dia. x 3/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.978 oz. (27.7 g)
Pull Force, Case 1: 31.85 lbs
Pull Force, Case 2: 46.90 lbs
Surface Field: 4295 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The DE6 is a great, all-purpose, 7/8" disc magnet. Useful when a 3/4" disc just won't cut it and a 1" is just too big. Incredibly powerful!

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
