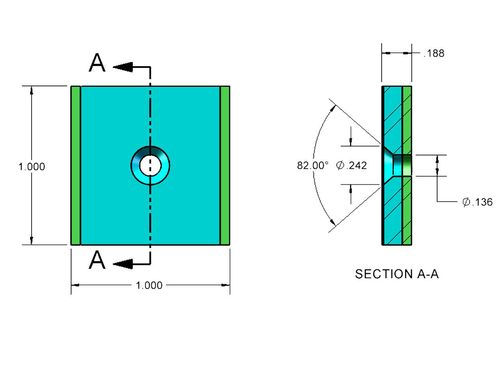

- Dimensions:
Length= 1"
Width= 1"
Height= 3/16" (0.188")
Hole sized for #4 flat-head screw - Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.81 oz. (23 g)
- Pull Force: 35.6 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

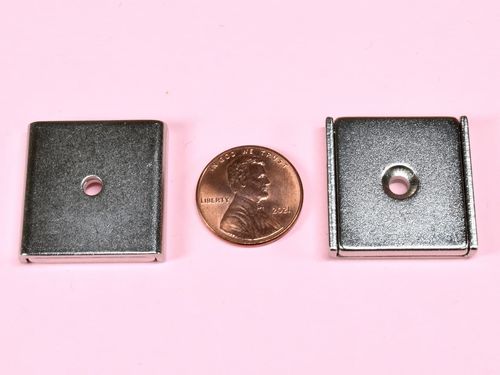

This magnet has a tapered hole to recess a #4 screw head. It can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
 | Click this link to download a PDF Specification Sheet. |
 | Click this link to download a PDF drawing of this product. |
 | Click this link to download a Certificate of Compliance for this product. |
 | Click this link to download a RoHS Statement of Compliance for this product. |
 | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
 | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
 | Click this link to download a Certificate of Origin for this product. |
 | Click this link for a REACH compliance statement. |
 | Click this link to download a .STEP file (3D model). |
 | Click this link to download an .IGS file (3D model). |
