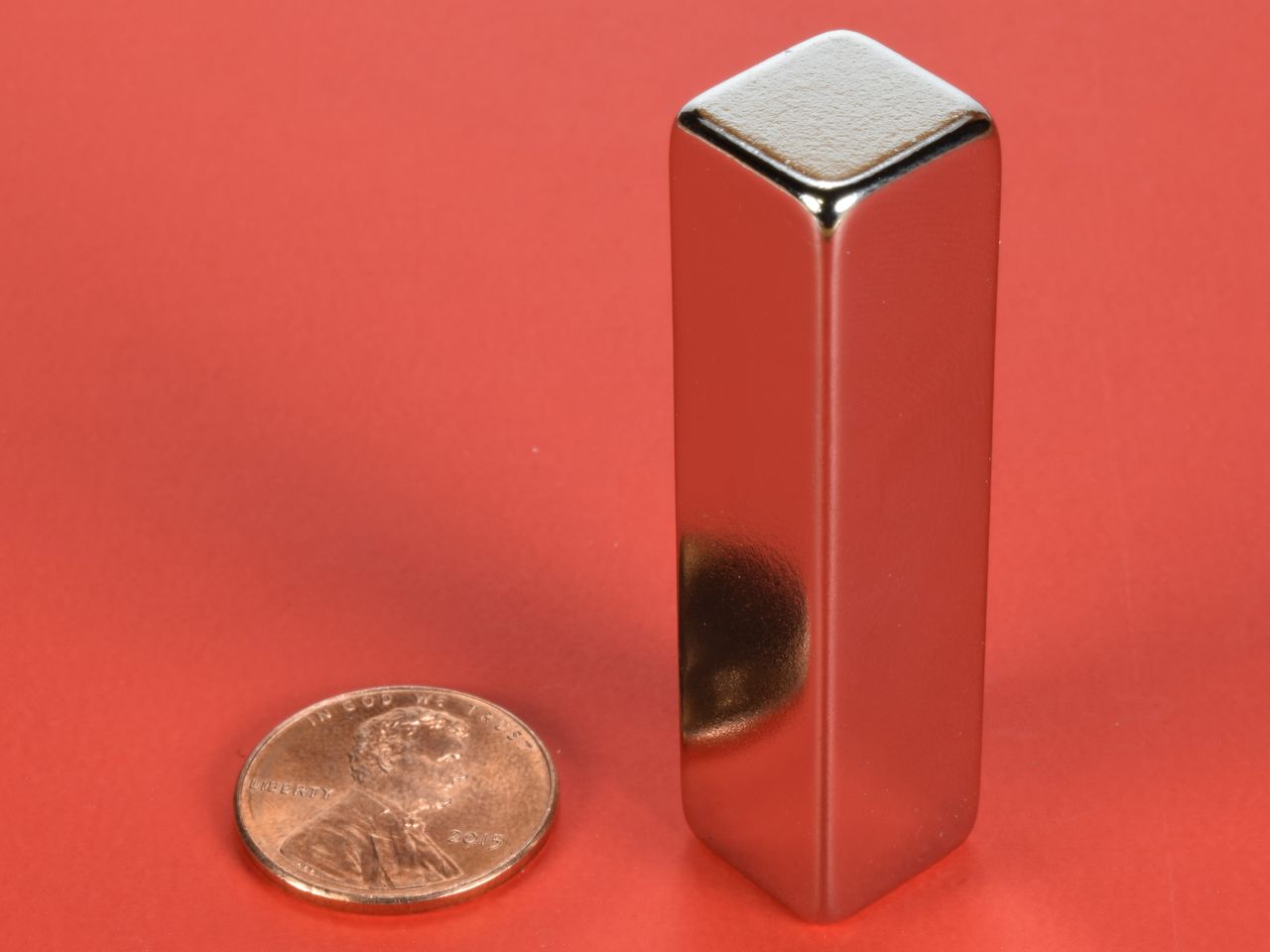

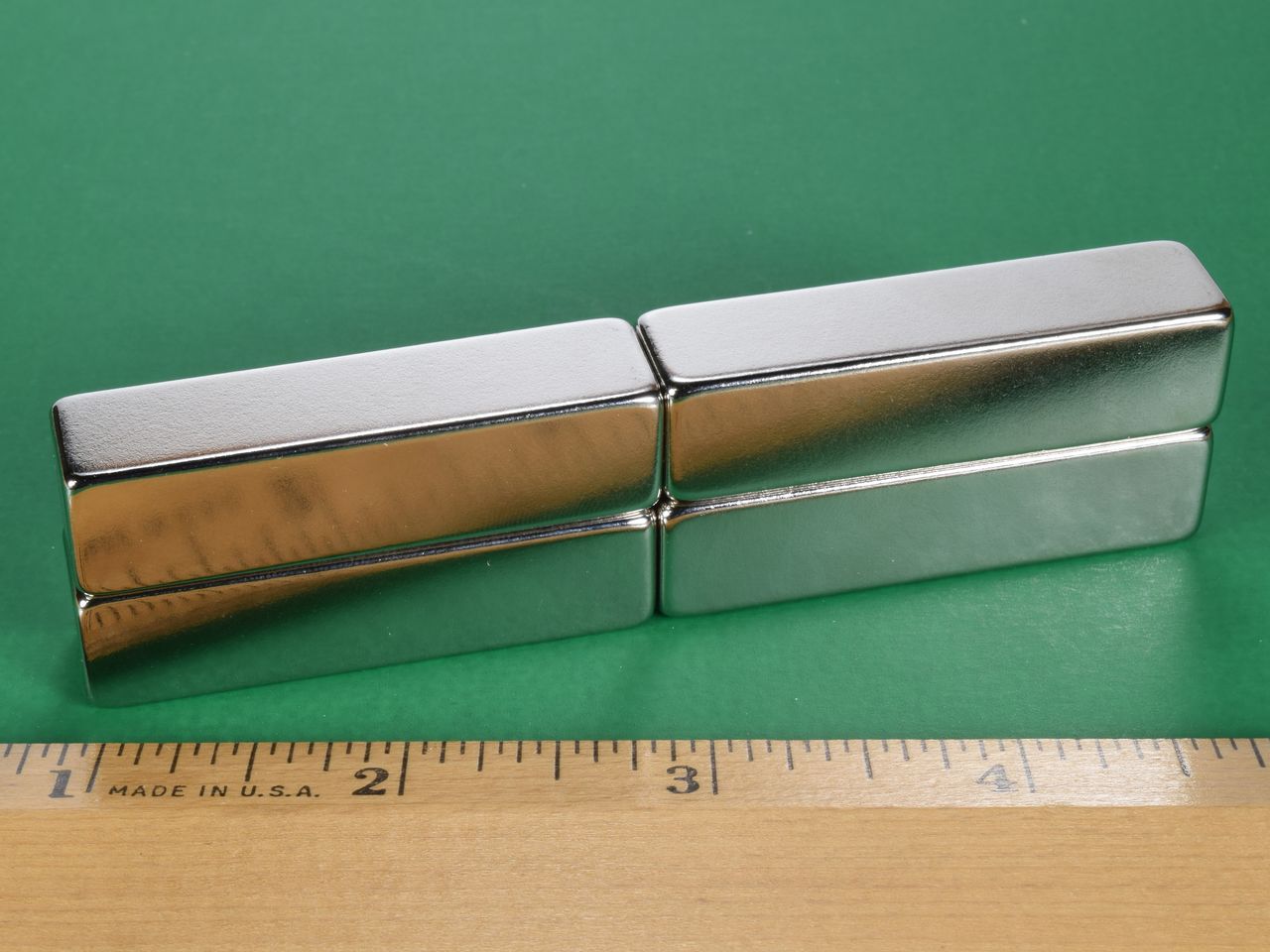

B88Y0 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1/2" x 1/2" x 2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 2.19 oz. (61.46 g)
Pull Force, Case 1: 22.29 lbs
Pull Force, Case 2: 22.29 lbs
Surface Field: 6535 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The B88Y0 is magnetized through it's longest dimension, which means the poles are located on the 1/2" x 1/2" ends. This makes them easy to grab and work with. Great for sorting out precious metals to determine their worth.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $14.58

Quantity:

Qty:

Price ea.	Qty
$14.58	1
$14.26	2
$13.93	3-4
$13.61	5-9
$13.28	10-24
$12.96	25-49
$12.63	50-99
$12.31	100-249
$11.98	250-499
$11.66	500-999
For pricing at higher order quantities, please email us!
