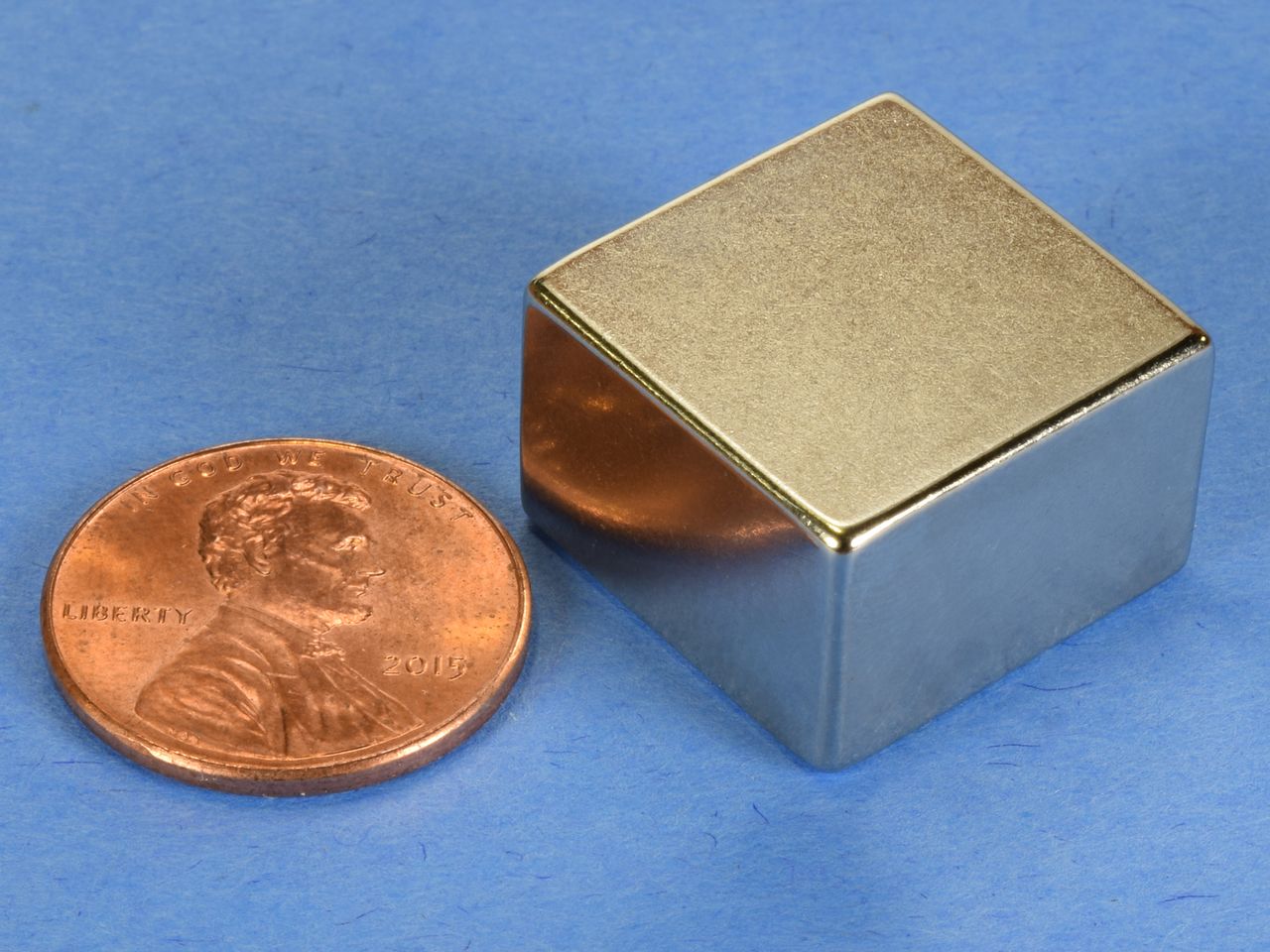

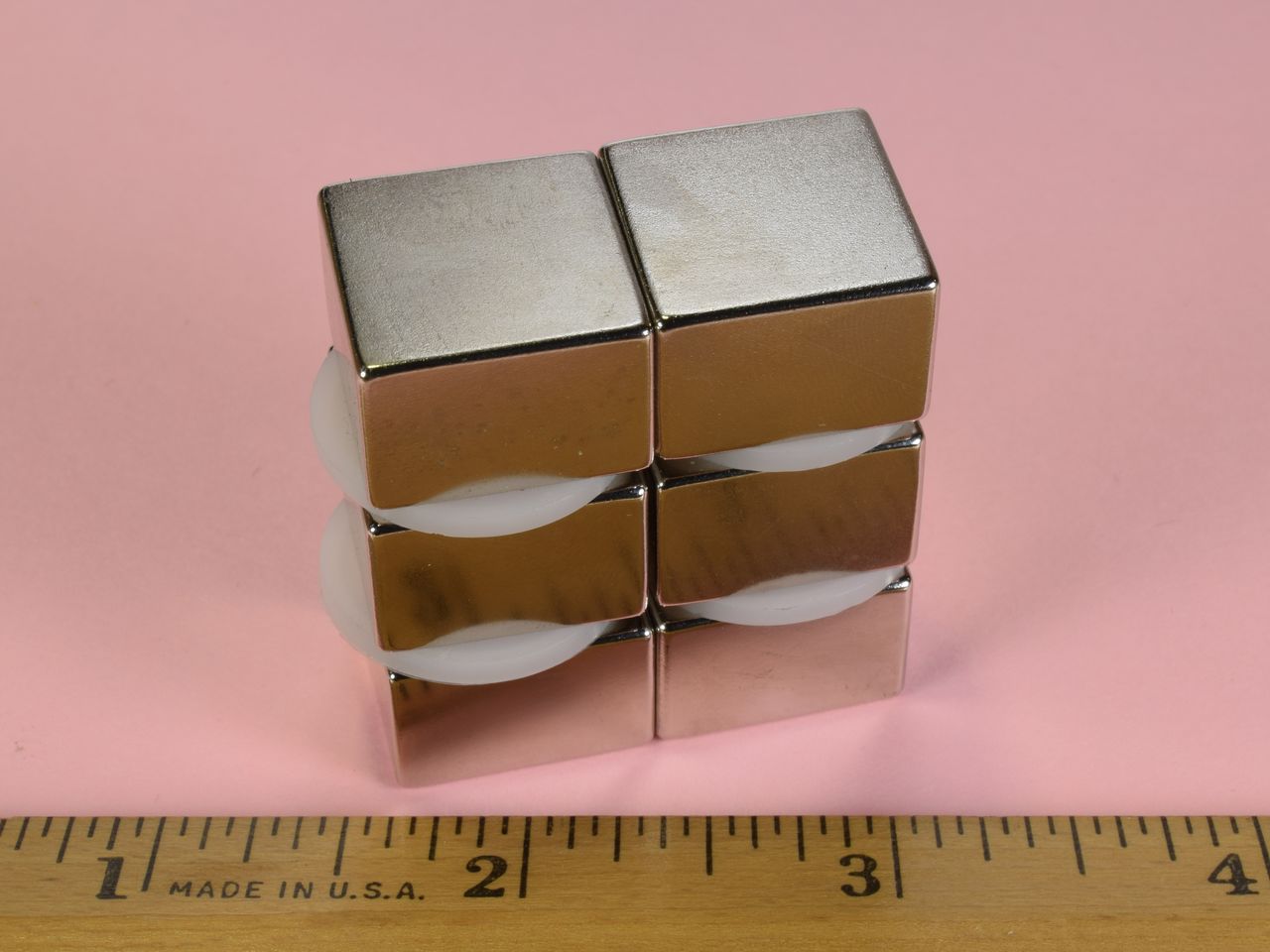

BCC8-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 3/4" x 3/4" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.22 oz. (34.57 g)
Pull Force, Case 1: 42.66 lbs
Pull Force, Case 2: 55.18 lbs
Surface Field: 5665 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

The BCC8-N52 is very sturdy and strong block magnet. This magnet is very powerful for its size and can be used for a wide variety of magnetic applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $10.49

Quantity:

Qty:

Price ea.	Qty
$10.49	1
$10.26	2-4
$10.02	5-9
$9.79	10-24
$9.56	25-49
$9.32	50-99
$9.09	100-249
$8.86	250-499
$8.62	500-999
$8.39	1000-2499
For pricing at higher order quantities, please email us!
