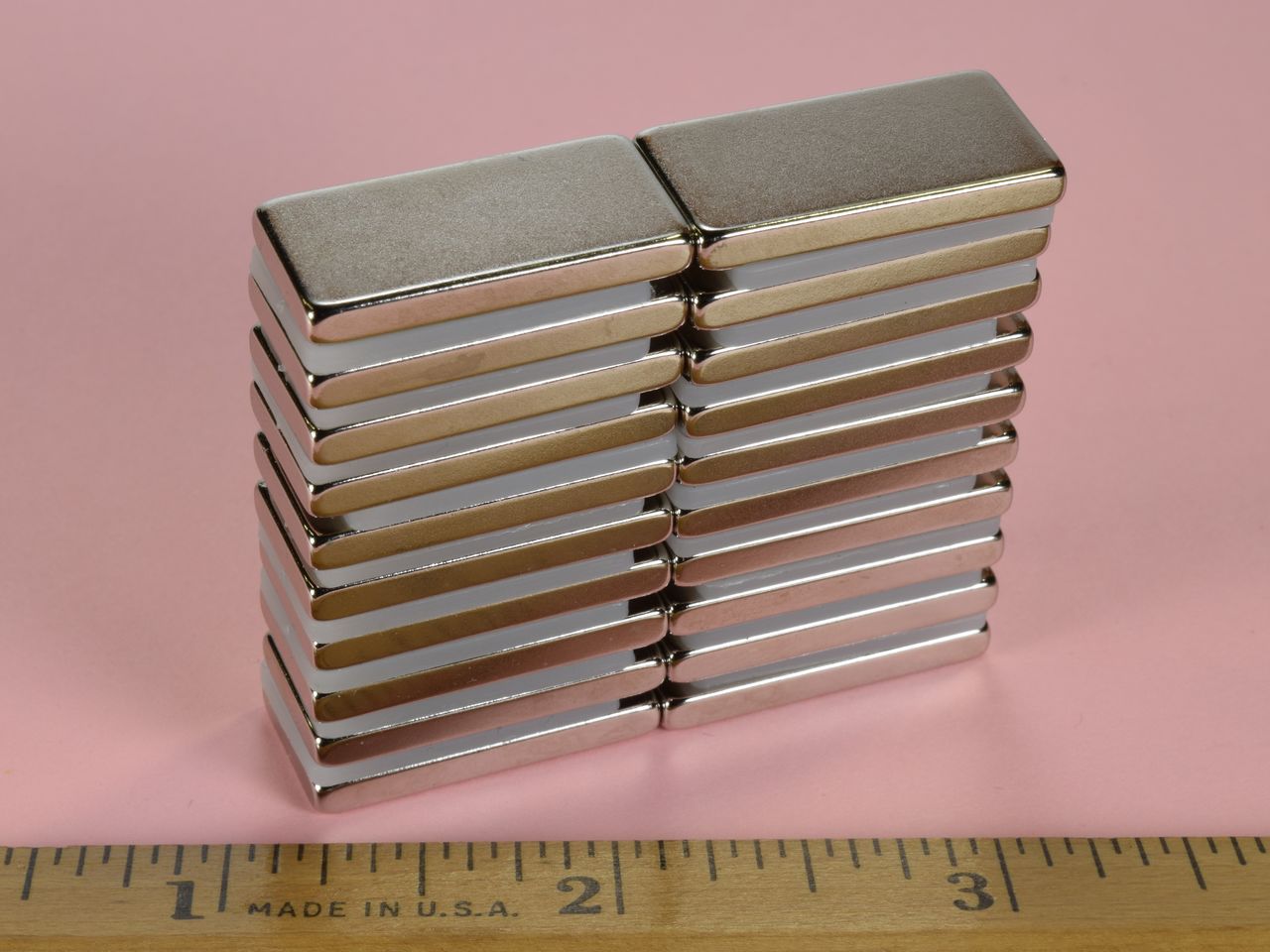

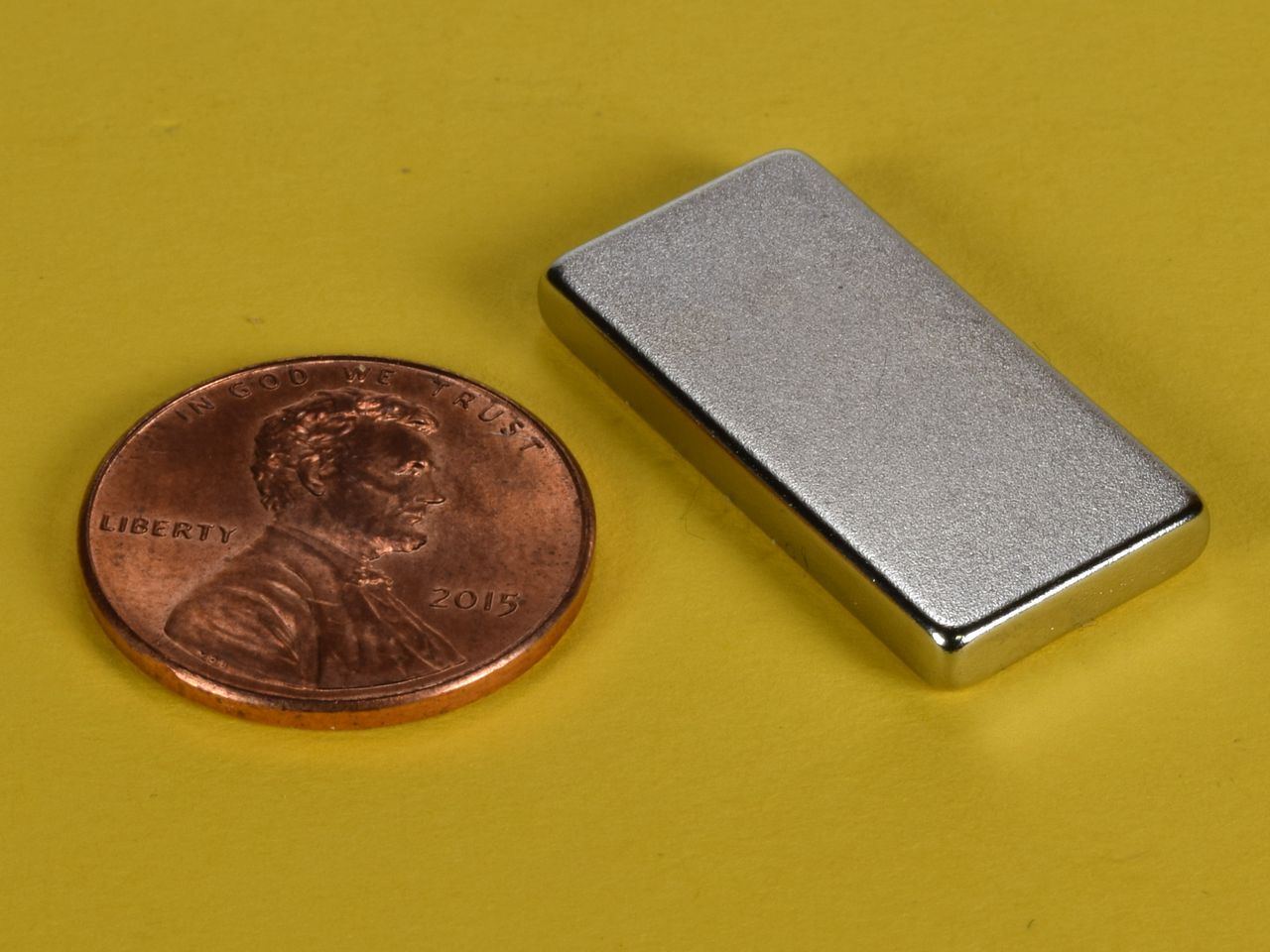

BX082-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1" x 1/2" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 12.80 lbs
Pull Force, Case 2: 49.60 lbs
Surface Field: 2451 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

This is a very strong and popular size of flat, block magnet in grade N52. They are not really toys because they will break if allowed to slam together, but they very strong and useful for holding, hanging or joining things.

This size is also available in grade N42 as part number BX082 and in High Temp material as BX082SH.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.84

Quantity:

Qty:

Price ea.	Qty
$2.84	1-4
$2.78	5-9
$2.71	10-24
$2.65	25-49
$2.59	50-99
$2.52	100-249
$2.46	250-499
$2.40	500-999
$2.33	1000-2499
$2.27	2500-4999
For pricing at higher order quantities, please email us!
