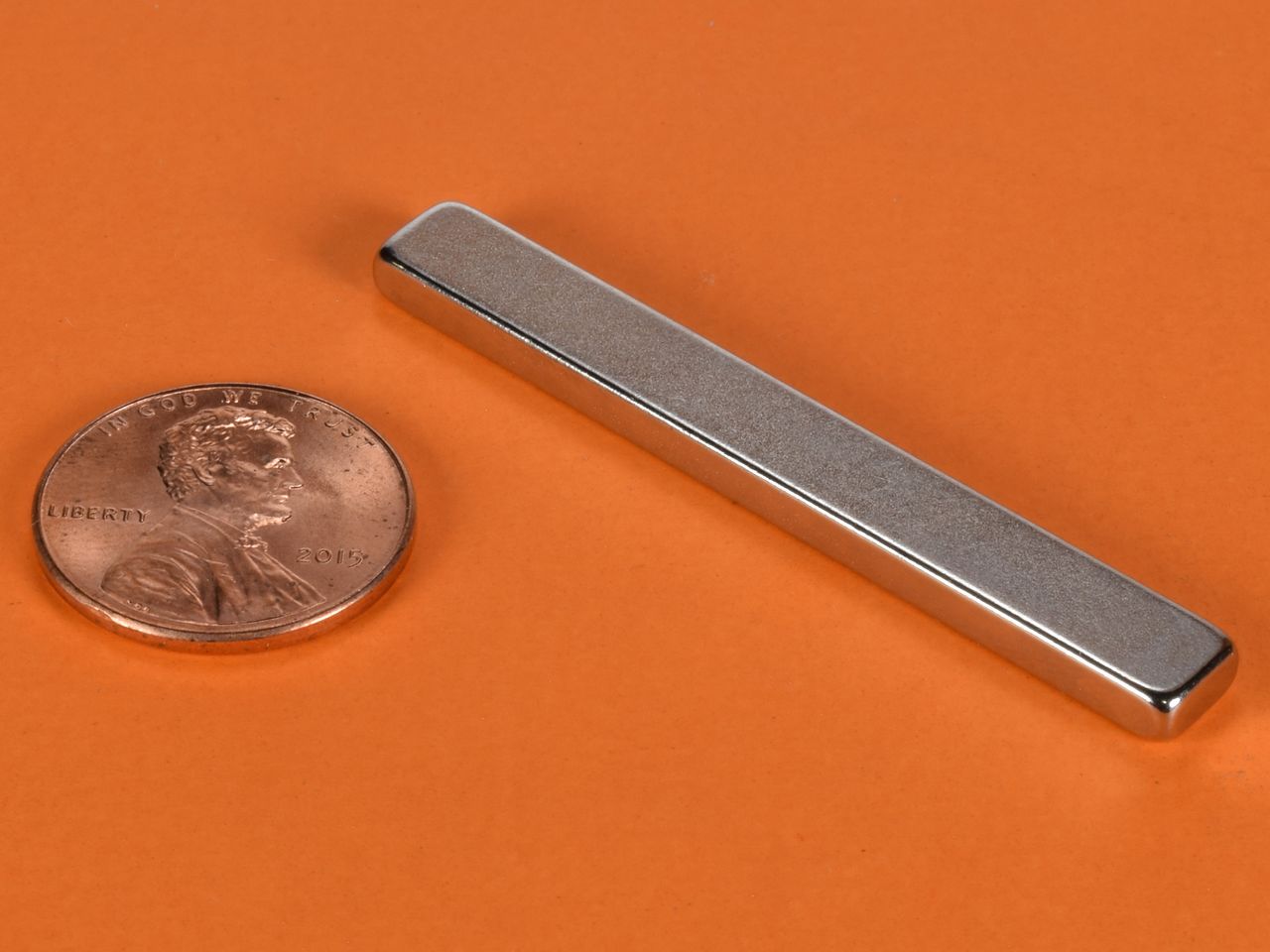

BY042-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 2" x 1/4" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 12.80 lbs
Pull Force, Case 2: 49.60 lbs
Surface Field: 3736 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These long blocks are great for a variety of applications. The BY042-N52 is a very powerful block that will pinch fingers and/or break if mishandled.

This size is also available in grade N42 as part number BY042 and a High Temp N42SH as part number BY042SH.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.90

Quantity:

Qty:

Price ea.	Qty
$2.90	1-4
$2.84	5-9
$2.77	10-24
$2.71	25-49
$2.64	50-99
$2.58	100-249
$2.51	250-499
$2.45	500-999
$2.38	1000-2499
$2.32	2500-4999
For pricing at higher order quantities, please email us!
