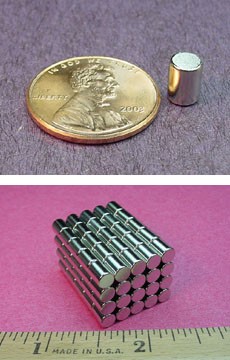

D34-N52 - Neodymium Cylinder Magnet

Description
Technical
Downloads

Dimensions: 3/16" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.030 oz. (0.849 g)
Pull Force, Case 1: 2.44 lbs
Pull Force, Case 2: 2.58 lbs
Surface Field: 6929 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Strong little cylinders in grade N52 that can be used for a wide variety of applications. It is also a great magnet for hanging things because its length makes it easy to grab, remove and handle.

This size is also available in grade N42 as part number D34.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.47

Quantity:

Qty:

Price ea.	Qty
$0.47	1-49
$0.46	50-99
$0.45	100-249
$0.44	250-499
$0.43	500-999
$0.42	1000-2499
$0.41	2500-4999
$0.40	5000-9999
$0.39	10000-24999
$0.38	25000-49999
For pricing at higher order quantities, please email us!
