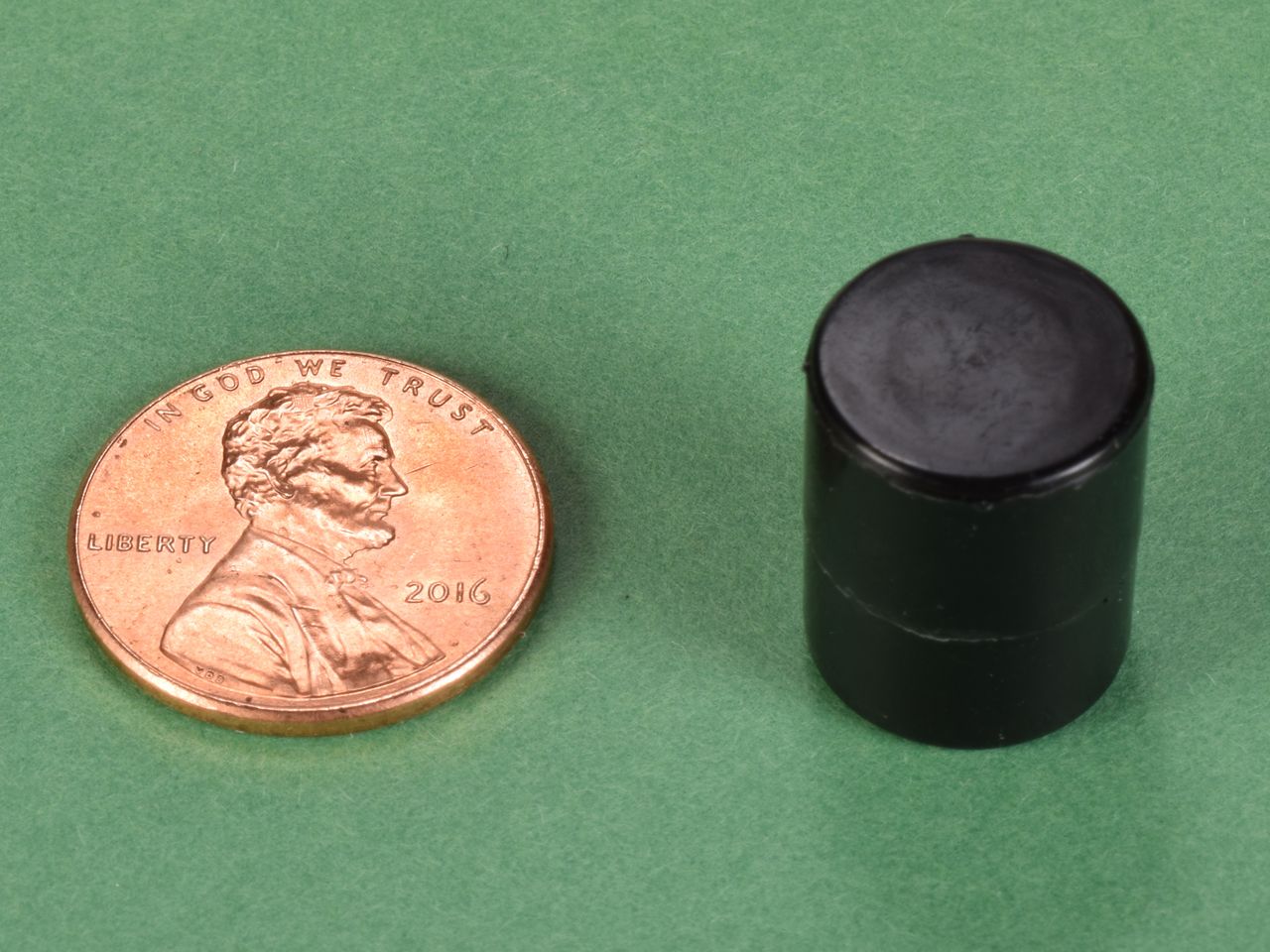

D8APC-BLK - Plastic Coated Magnet

• Dimensions: 1/2" dia. x 5/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni-Plastic
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.393 oz. (11.1 g)
• Pull Force, Case 1: 5.79 lbs
• Pull Force, Case 2: 7.19 lbs
• Surface Field: 5299 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

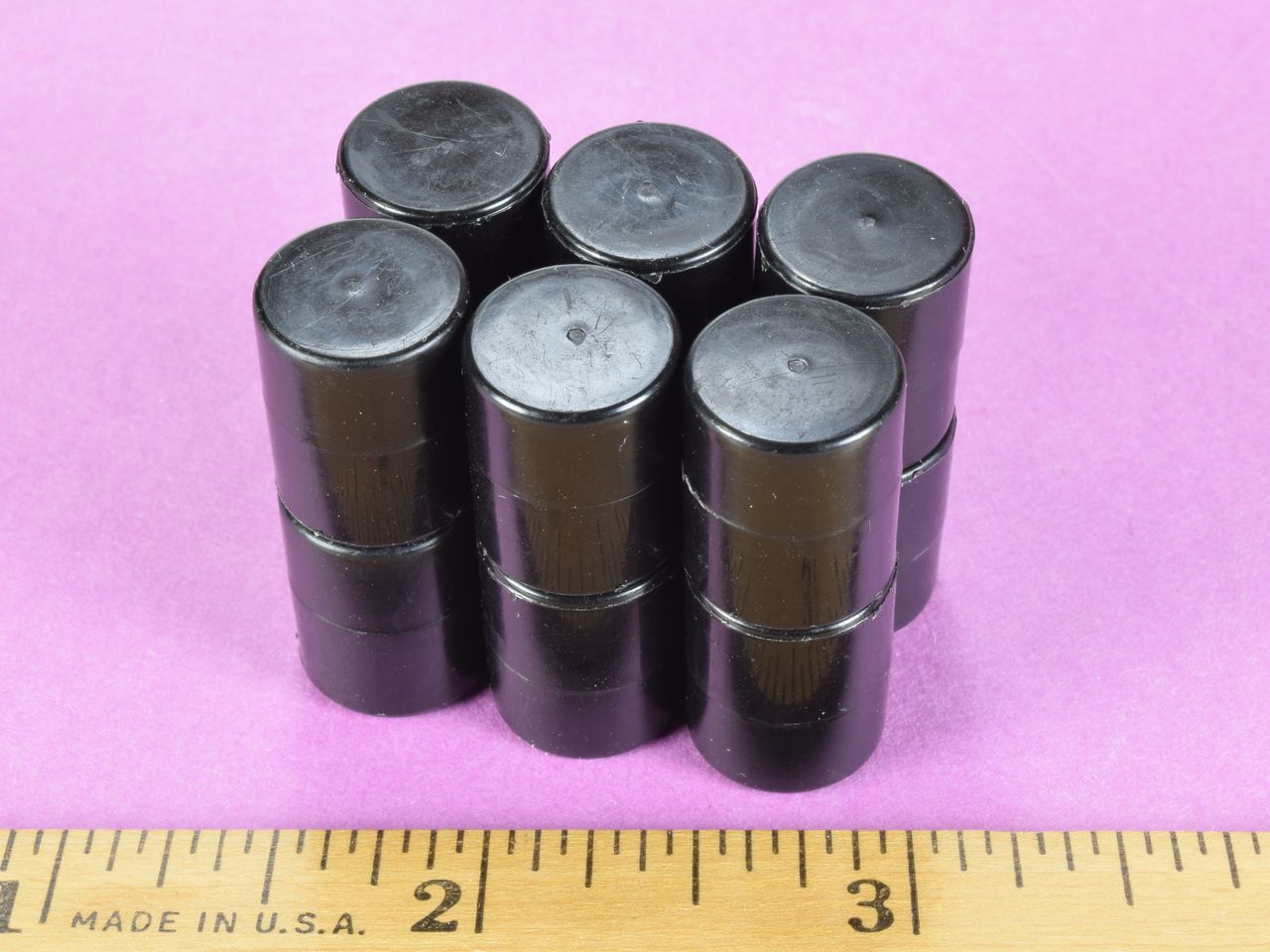

These great magnets are coated with a durable layer of plastic. The 1/2" x 5/8" dimensions are the finished dimensions of the plastic coating. These cylinders are easy to handle and can be slammed together many times without damage. They won't mark or scratch surfaces they come in contact with. They are also completely weatherproof. These magnets are our first choice for finding studs in a wall.

Please note: Slight color variation may occur from order to order.
