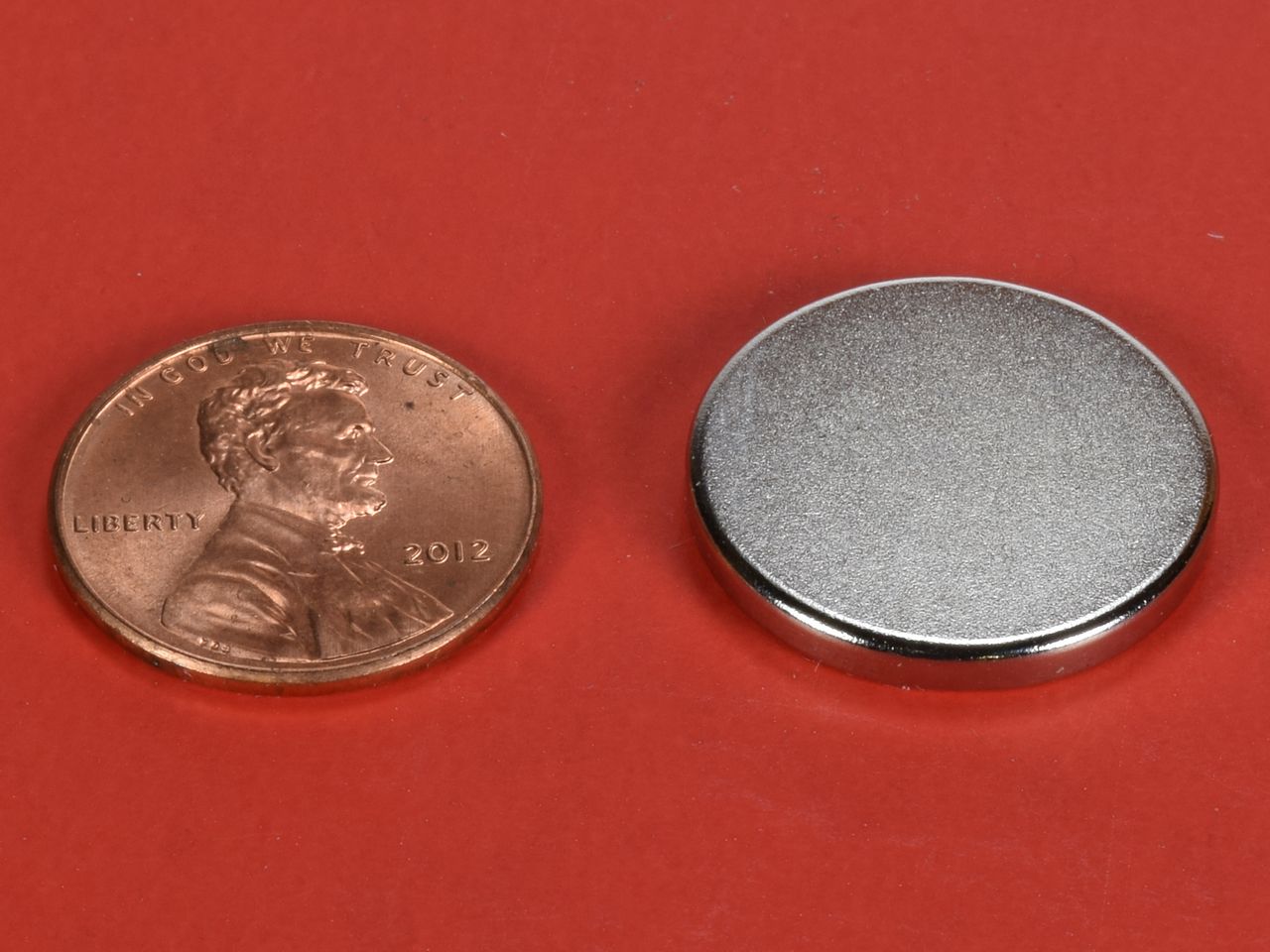

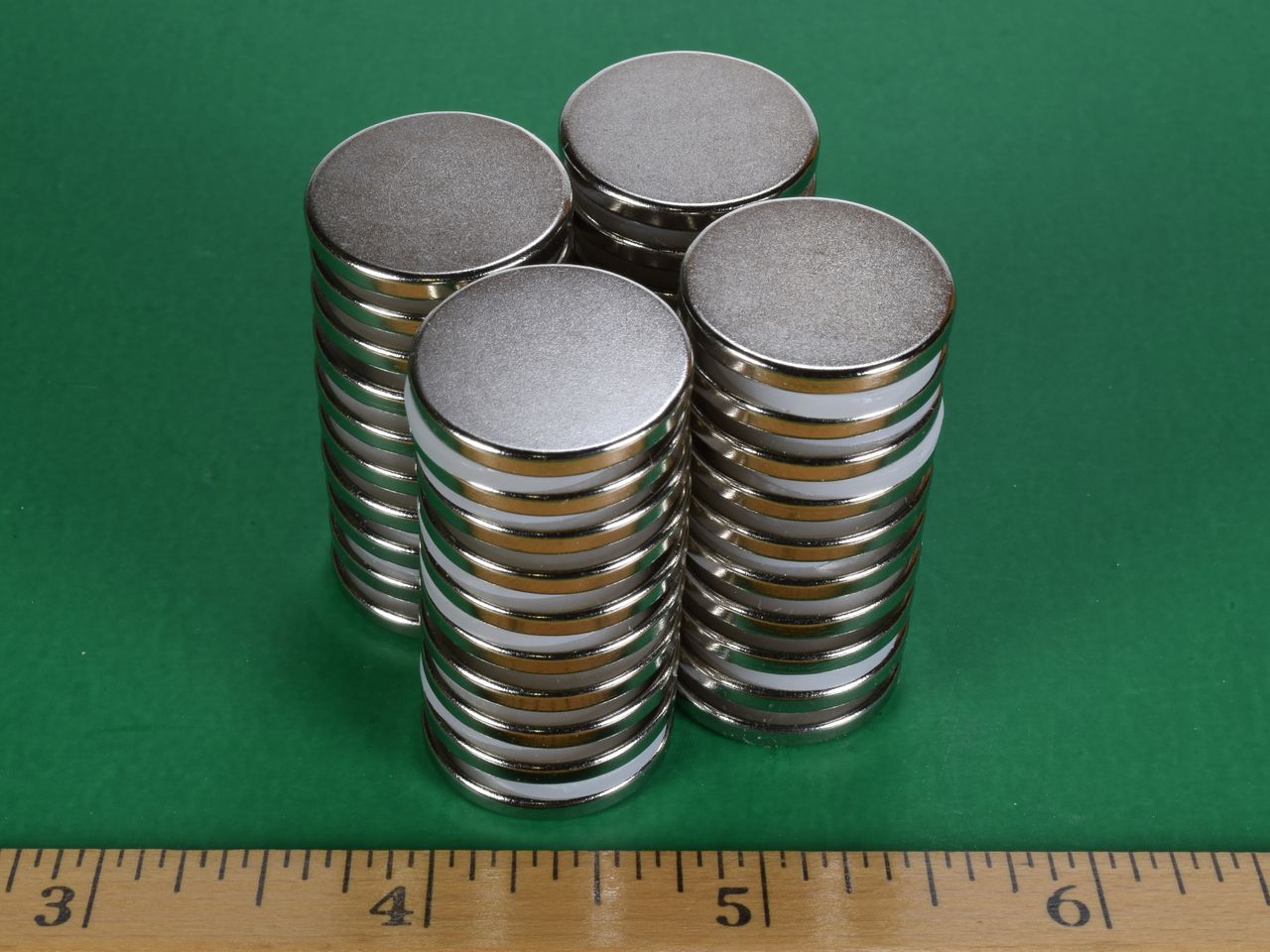

DDH1 - Neodymium Disc Magnet

• Dimensions: 13/16" dia. x 1/10" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.23 oz. (6.37 g)
• Pull Force, Case 1: 7.99 lbs
• Pull Force, Case 2: 40.86 lbs
• Surface Field: 1578 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The DDH1 is an extremely rare combination of 13/16" diameter and 1/10" thickness that you'll only find at K&J Magnetics.  A true 0.100" +/-0.004" Perfect for those tight spots in special projects.
