- Description
- Downloads

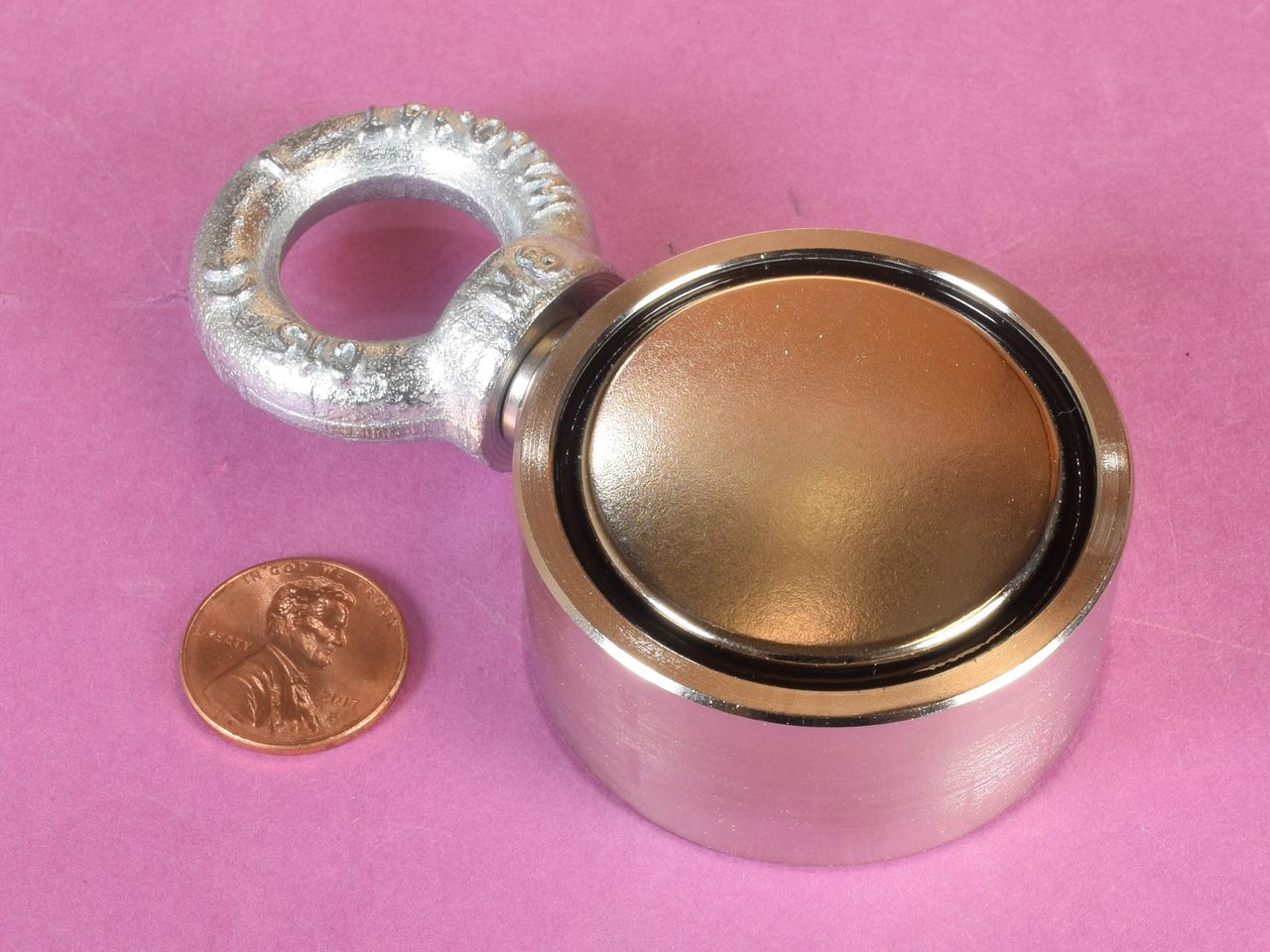

- Dimensions:
D=48mm (1.89")
H=63mm (2.48")
M=8mm (0.32") (M8 Coarse threaded hook) - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 12.83 oz
- Pull Force: 230 lbs (on each side)
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
Click this link to download a PDF Specification Sheet. | |
Click this link to download a PDF drawing of this product. | |
Click this link to download a Certificate of Compliance for this product. | |
Click this link to download a RoHS Statement of Compliance for this product. | |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. | |
Click this link to download a Conflict Minerals Reporting Template (CMRT). | |
Click this link to download a Certificate of Origin for this product. | |
Click this link to download a .STEP file (3D model). | |
Click this link to download an .IGS file (3D model). |
