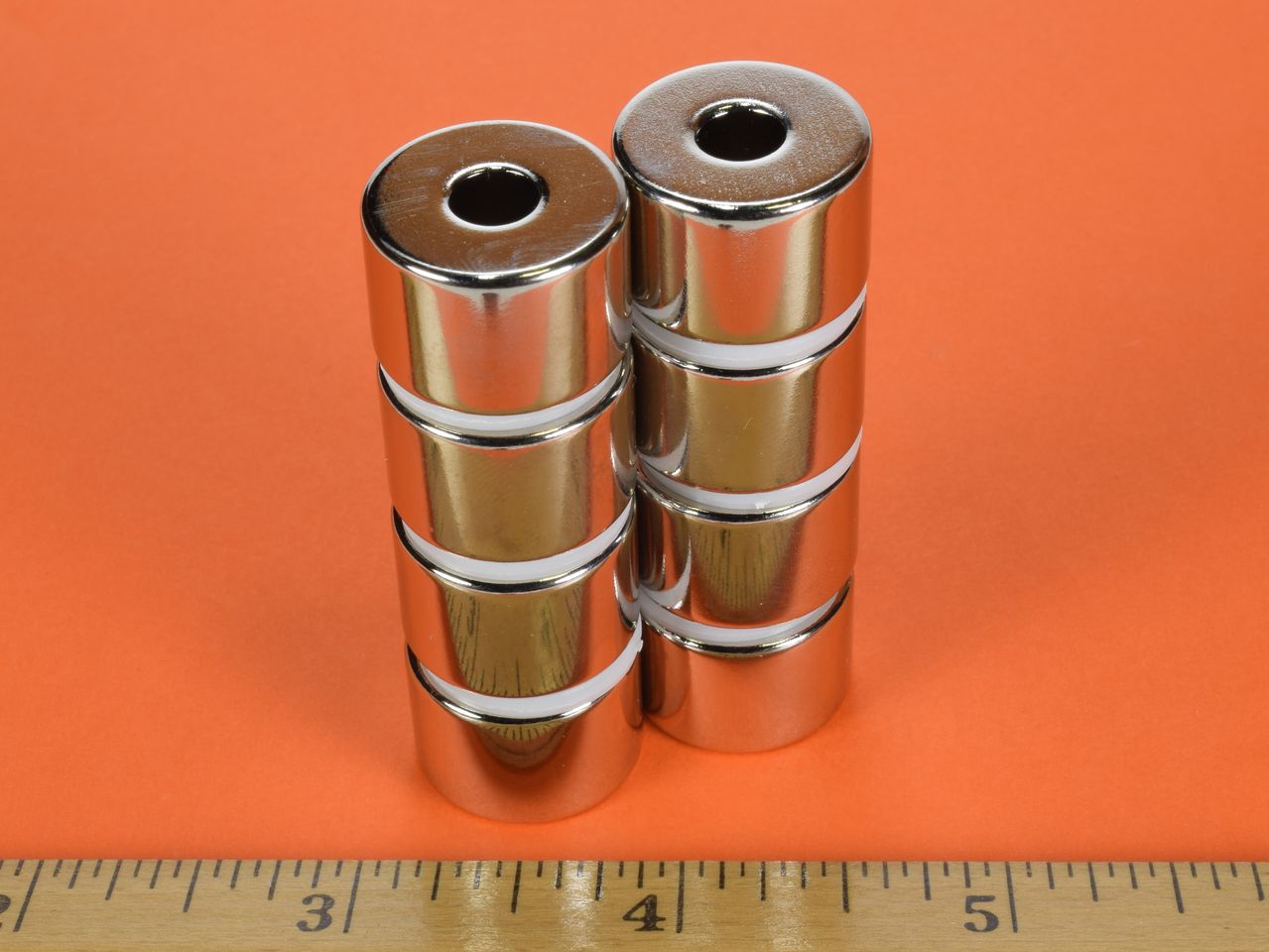

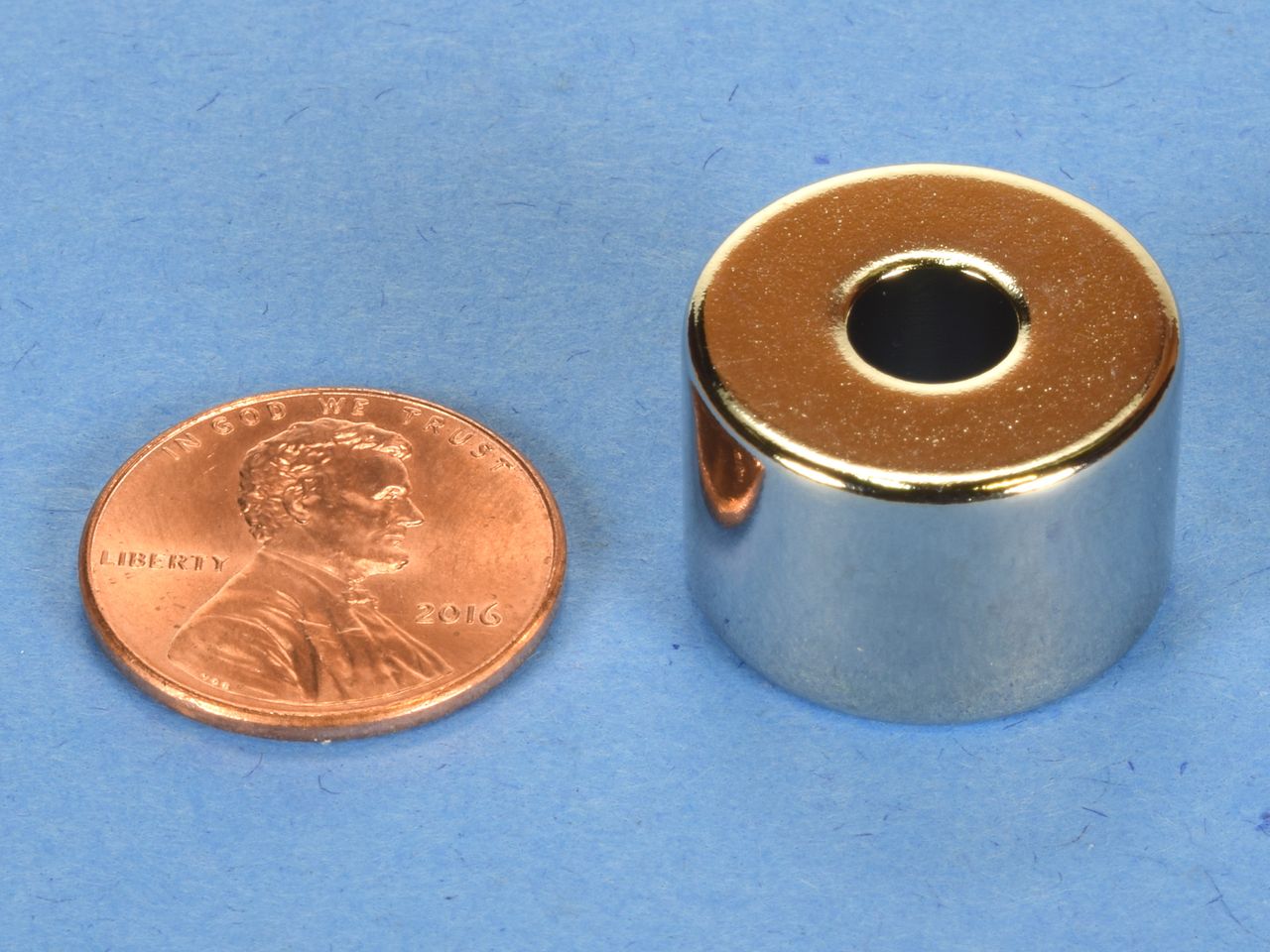

RC48 - Neodymium Ring Magnet

Description
Technical
Downloads

Dimensions: 3/4" od x 1/4" id x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.851 oz. (24.1 g)
Pull Force, Case 1: 25.88 lbs
Pull Force, Case 2: 33.04 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Our RC48 rings are great for science demonstrations. They can be mounted using a fastener through the hole or suspended by a rope or string for hanging ferromagnetic objects.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $5.87

Quantity:

Qty:

Price ea.	Qty
$5.87	1
$5.74	2-4
$5.61	5-9
$5.48	10-24
$5.35	25-49
$5.22	50-99
$5.09	100-249
$4.96	250-499
$4.83	500-999
$4.70	1000-2499
For pricing at higher order quantities, please email us!
