5/8 x 1/10 Inch Steel Washer for Magnets NSW82

NSW82 Specifications

• Size: Size is the physical dimensions of the product using the standard unit of measure inches.

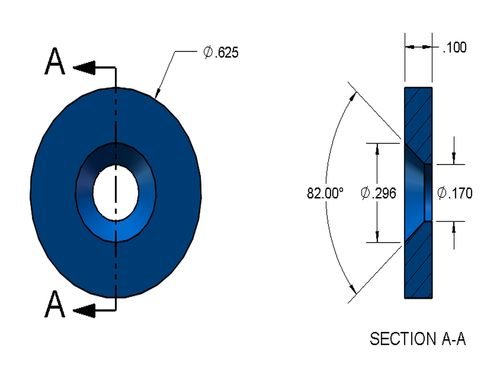

  0.625 x 0.1 Inch ( Diameter x Thickness )
• Metric Size: Metric size is the physical dimensions of the product in metric millimeters.
  15.88 x 2.54 mm ( Diameter x Thickness )
• Material: This lists the name of the material each product is composed of.
  Nickel plated steel
• Coating: Most neodymium magnets are plated or coated in order to protect the magnet material from corrosion. Check out our Custom Magnets for unplated magnets and other coatings not stocked for this size magnet. Learn more about all available platings and coating in our What Magnet Coating Should I Use? article.
  Nickel-Copper-Nickel (Ni-Cu-Ni)
• Weight: This is the weight of a single magnet in ounces and grams.
  0.1256 oz (3.56 g)
• Color: The color of the coating or plating on the product.
  Silver
• Accessories: List of things included or not included with product.
  Hardware not included

These parts are not magnets.

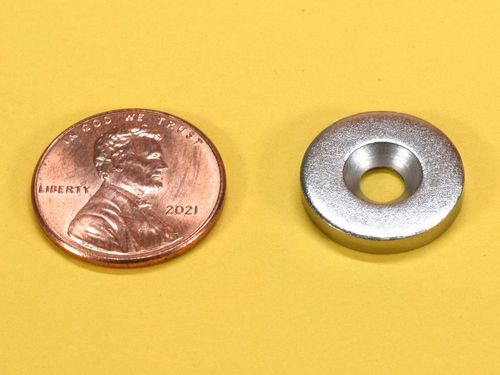

These washers are designed for use with our NSC82 steel cups and D82 disc magnets. They can be used to create a clean, modern latch assembly for doors and hatches. The washer is countersunk to accept a wood or metal screw to provide a flat surface area for magnet contact. Magnets and mounting screws not included with this part. Magnets can be purchased separately.
