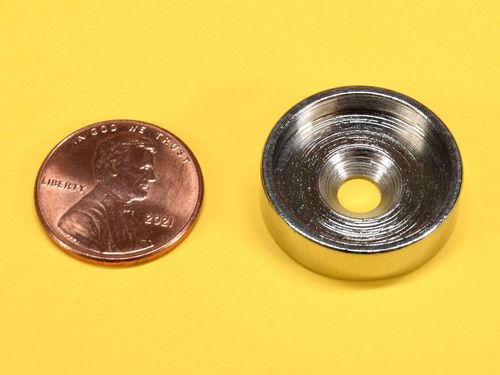

Nickel-plated Steel Cup
Holds 3/4" x 1/8" Disc Magnet
7/8" o.d. x 1/4" thick overall
These steel cups are perfect for wood and metal projects. They can be recessed to provide a flush magnet mount for latches. The corresponding steel washers can be used to create a clean, modern latch assembly for doors and hatches. The cup is countersunk to accept a wood or metal screw that will be covered by the magnet.
These parts are not magnets. Magnets and mounting screws not included with this part. Magnets can be purchased separately. This size cup is designed for use with our DC2 disc magnet. Our RC22CS-N and RC22CS-S countersunk ring magnets can also be used with this steel cup.
Holds 3/4" x 1/8" Disc Magnet
7/8" o.d. x 1/4" thick overall
These steel cups are perfect for wood and metal projects. They can be recessed to provide a flush magnet mount for latches. The corresponding steel washers can be used to create a clean, modern latch assembly for doors and hatches. The cup is countersunk to accept a wood or metal screw that will be covered by the magnet.
These parts are not magnets. Magnets and mounting screws not included with this part. Magnets can be purchased separately. This size cup is designed for use with our DC2 disc magnet. Our RC22CS-N and RC22CS-S countersunk ring magnets can also be used with this steel cup.
|

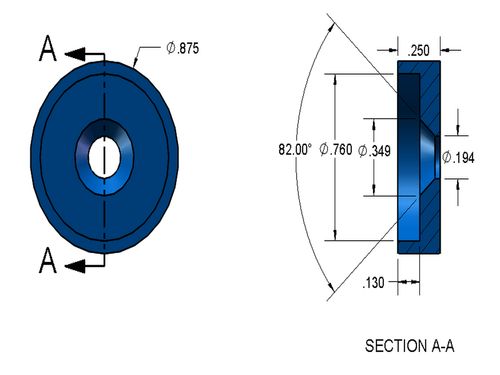

Click this link to download a PDF drawing of this product. |
|
Click this link to download a Certificate of Compliance for this product. |
|
Click this link to download a RoHS Statement of Compliance for this product. |
|
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
|
Click this link to download a Certificate of Origin for this product. |
|
Click this link for a REACH compliance statement. |
|
Click this link to download a .STEP file (3D model). |
|
Click this link to download an .IGS file (3D model). |
