![](/images/magdir/BCC4DCS.png)

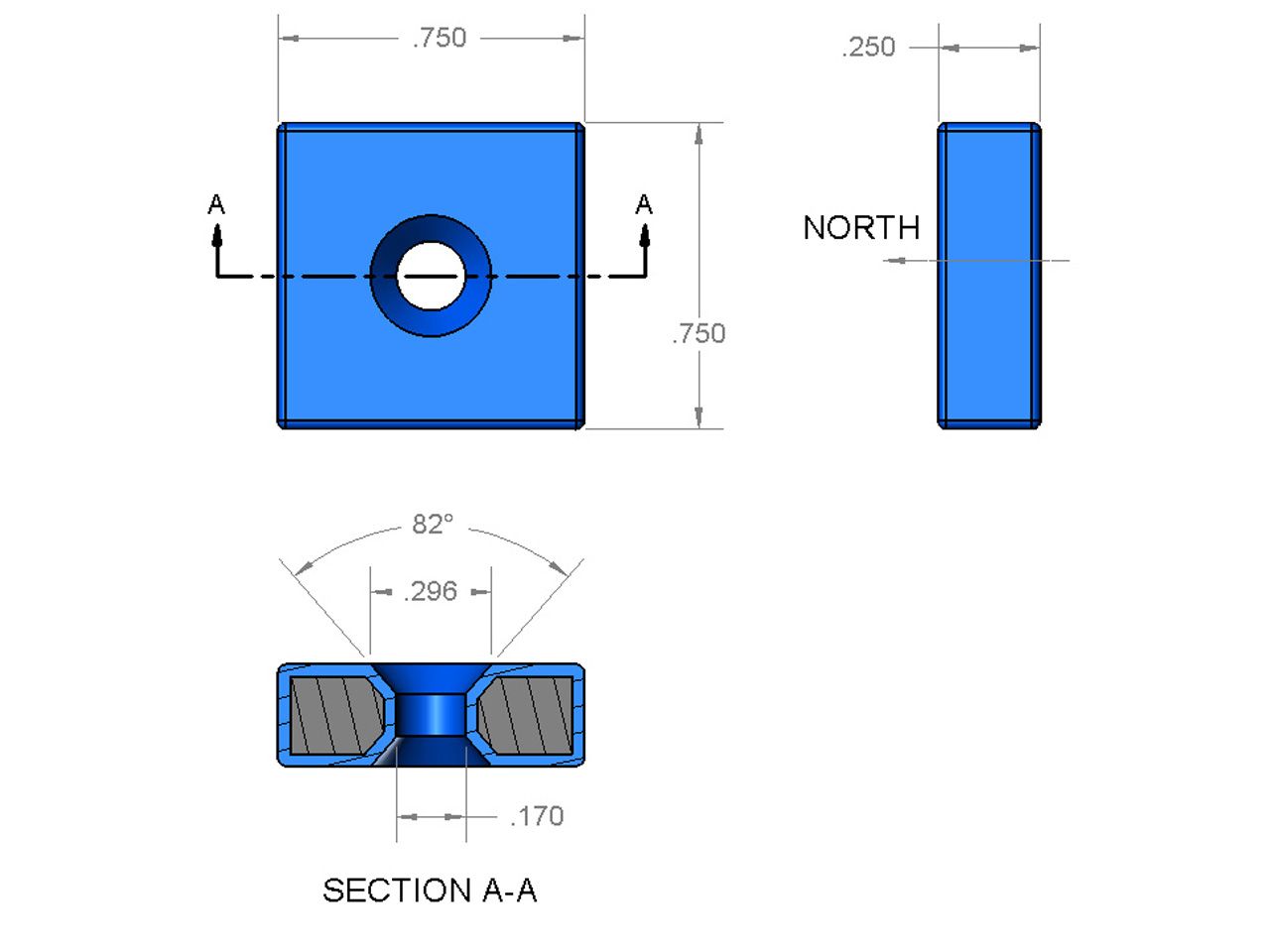

- Dimensions: 3/4" x 3/4" x 1/4" thick w/ hole to accept a #6 screws
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Black Plastic
- Magnetization Direction: Thru Thickness
- Weight: 0.377 oz. (10.7 g)
- Pull Force, Case 1: 8.14 lbs
- Pull Force, Case 2: 17.76 lbs
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

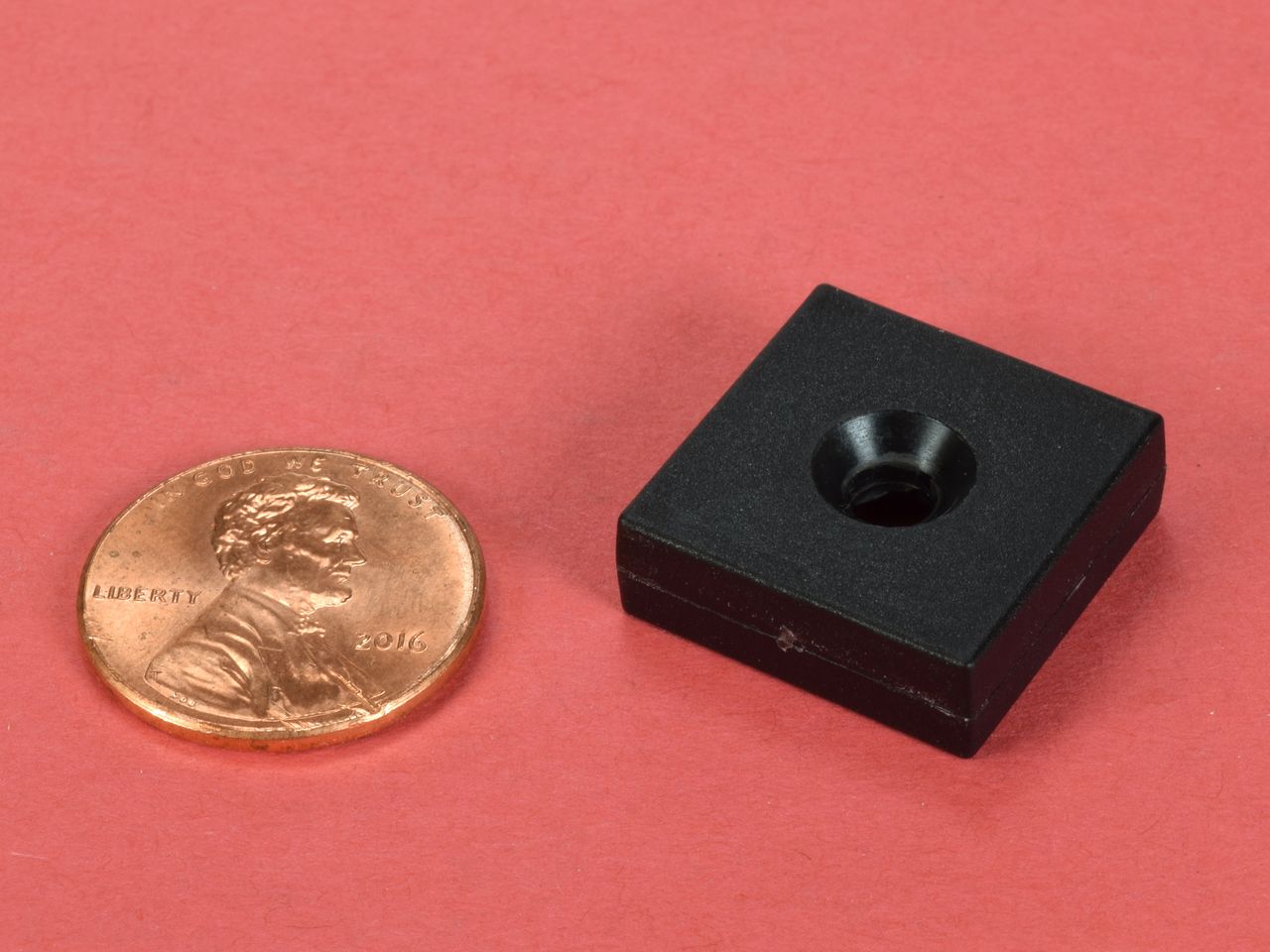

We've designed these powerful blocks with a hole that's countersunk on both sides, making them some of the most versatile magnets we carry. Perfect for aquariums, marine environments, construction sites, outdoor applications and so much more! Super strong and super tough!
![]() | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() | View B-H curves for this magnet. |
![]() | Click here to download a PDF Specification Sheet. |
![]() | Click here to download a PDF drawing of this product. |
![]() | Click here to download a Certificate of Compliance for this product. |
![]() | Click here to download a RoHS Statement of Compliance for this product. |
![]() | Click here to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click here to download a Conflict Minerals Reporting Template (CMRT). |
![]() | Click here to download a Certificate of Origin for this product. |
![]() | Click here for a REACH compliance statement. |
![]() | Click here to download a .STEP file (3D model). |
![]() | Click here to download an .IGS file (3D model). |
