BY0X0X0 - Neodymium Block Magnet

Description
Technical
Downloads

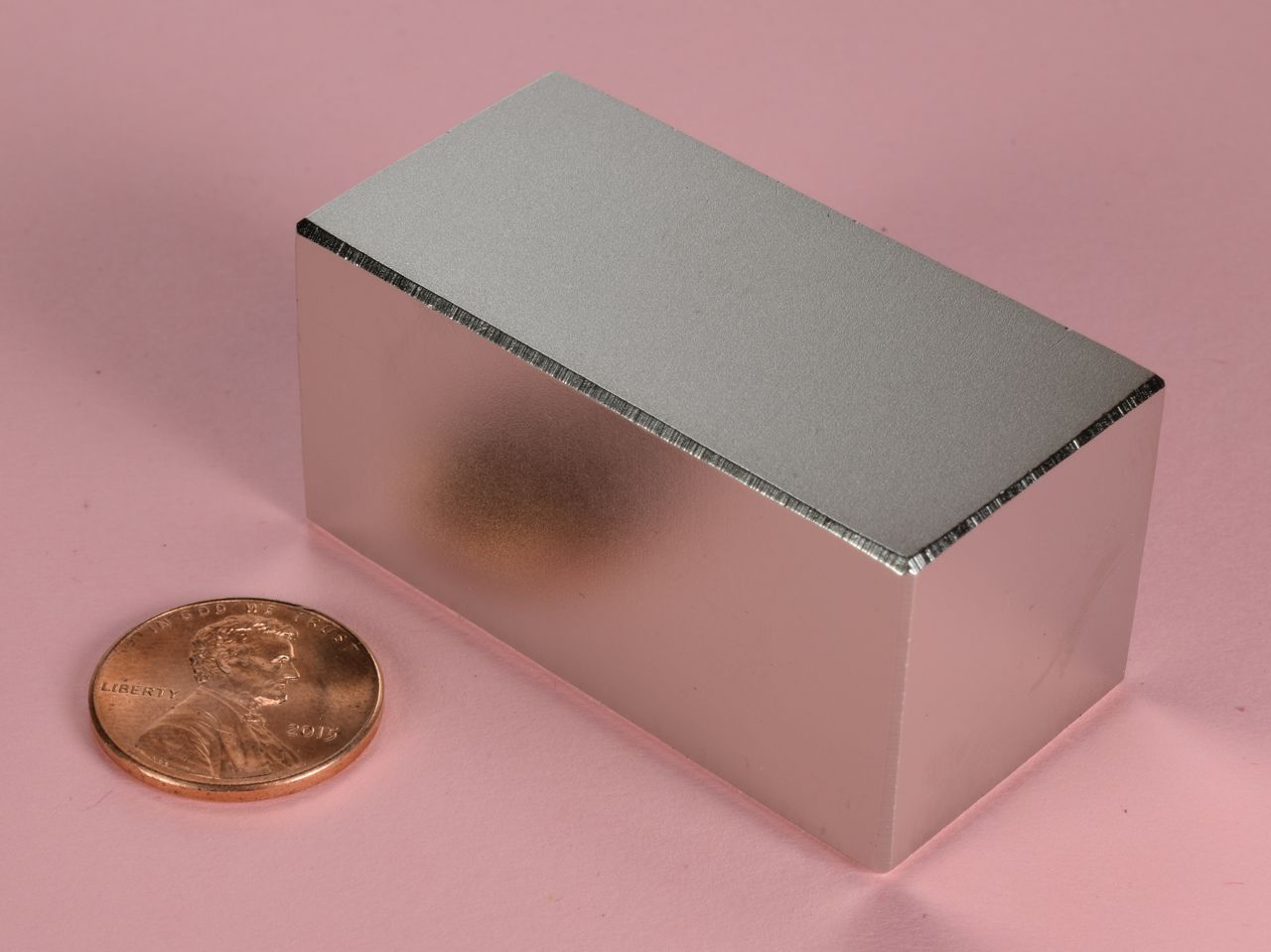

Dimensions: 2" x 1" x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 8.67 oz. (245.8 g)
Pull Force, Case 1: 137.7 lbs
Pull Force, Case 2: 137.7 lbs
Surface Field: 5248 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

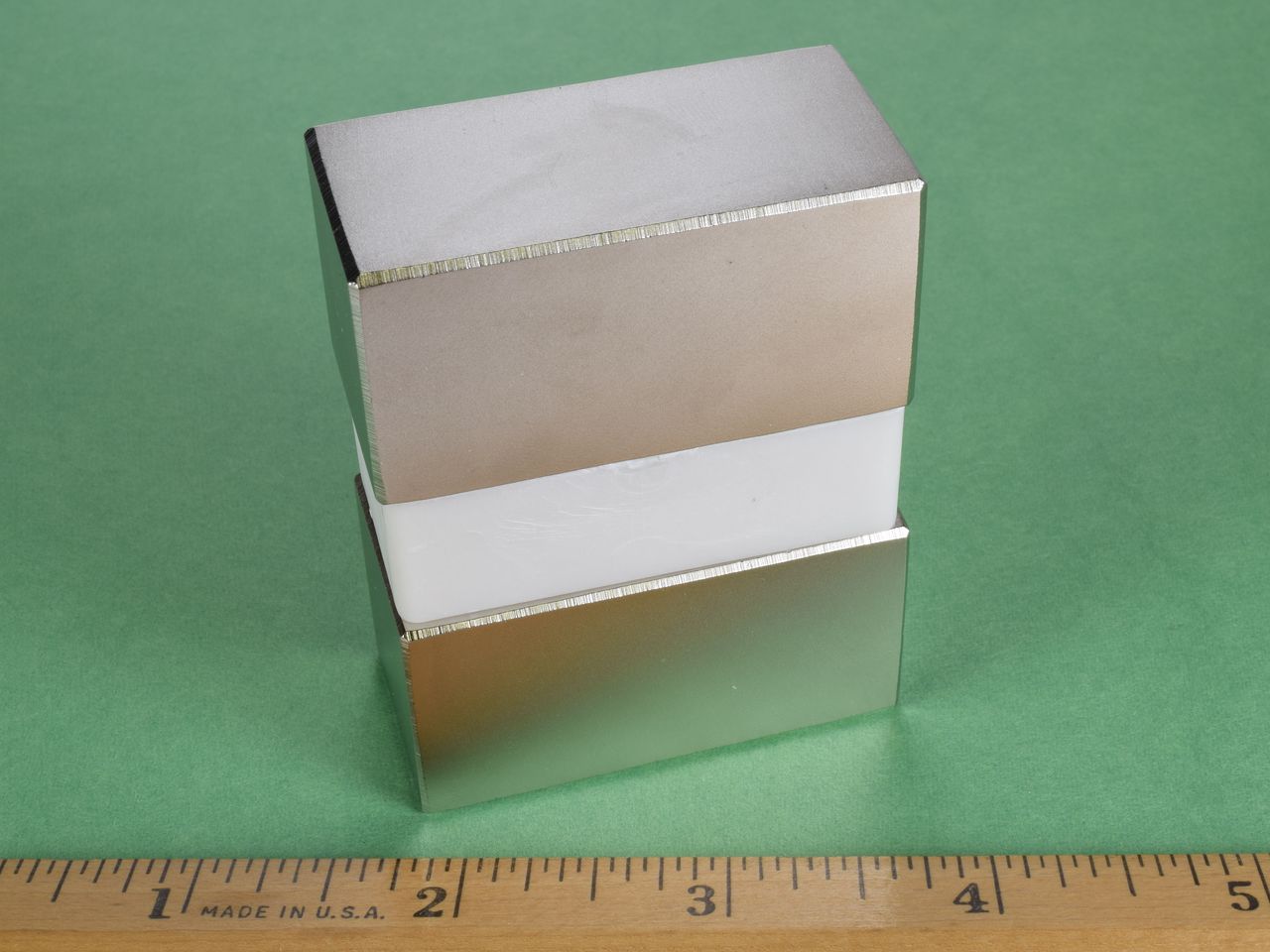

These heavyweight blocks are extremely powerful and must be handled with caution. They can pinch very hard if you get between two of them or one and a piece of metal. They are heavy, sturdy, and unbelievably strong.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $50.92

Quantity:

Qty:

Price ea.	Qty
$50.92	1
$49.79	2
$48.66	3-4
$47.52	5-6
$46.39	7-9
$45.26	10-24
$44.13	25-49
$42.99	50-99
$41.86	100-249
$40.73	250-499
For pricing at higher order quantities, please email us!
