S2 - Neodymium Sphere Magnet - 1/8" Dia

• Dimensions: 1/8" diameter
• Tolerances: ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: NiCuNi (Nickel)
• Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
• Weight: 0.004 oz (0.13 g)
• Pull Force, Case 1: 0.41 lbs
• Pull Force, Case 2: 0.48 lbs
• Surface Field: 8815 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

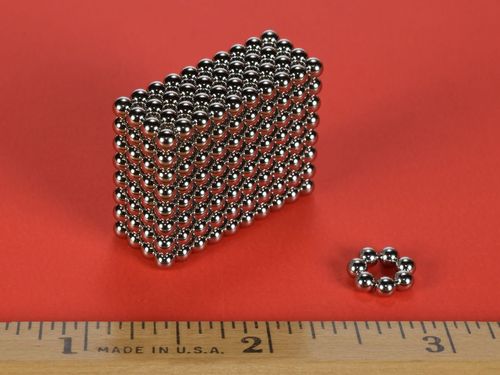

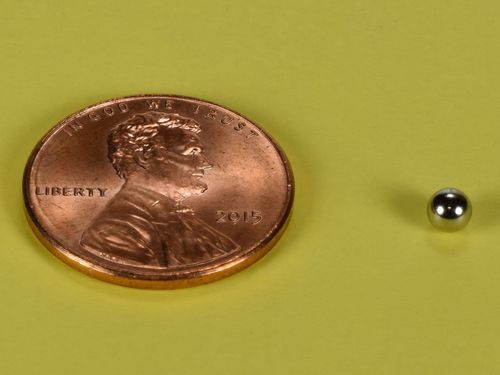

These 1/8" spheres are tiny! They are small but surprisingly strong, despite their diminutive size.



	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
