7/16 Inch Neodymium Rare Earth Sphere Magnet N42 PN: S7

7/16 Inch Neodymium Rare Earth Sphere Magnet N42

7/16 Inch Neodymium Rare Earth Sphere Magnet N42 --thumbnail-1

7/16 Inch Neodymium Rare Earth Sphere Magnet N42 --thumbnail-2

$2.68

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.68	1-4
$2.62	5-9	2%
$2.56	10-24	4%
$2.50	25-49	7%
$2.44	50-99	9%
$2.38	100-249	11%
$2.32	250-499	13%
$2.26	500-999	16%
$2.20	1000-2499	18%
$2.14	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 7/16" diameter
Tolerances: ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.190 oz (5.4 g)
Pull Force, Case 1: 4.97 lbs
Pull Force, Case 2: 5.99 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

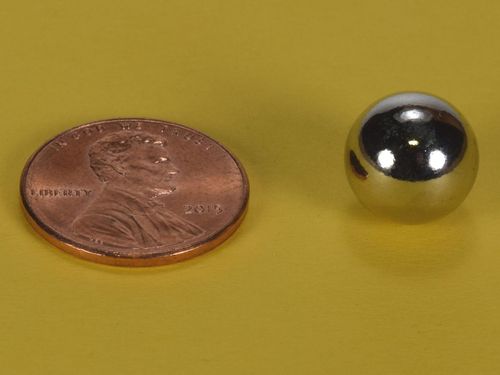

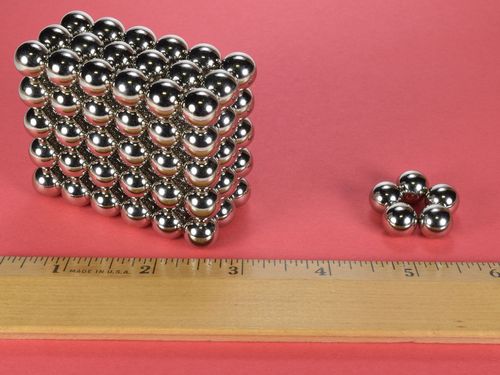

These sphere-shaped magnets are 7/16" in diameter. They are quite a bit stronger than our 1/4" spheres and might even pinch a little if you're not careful.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
