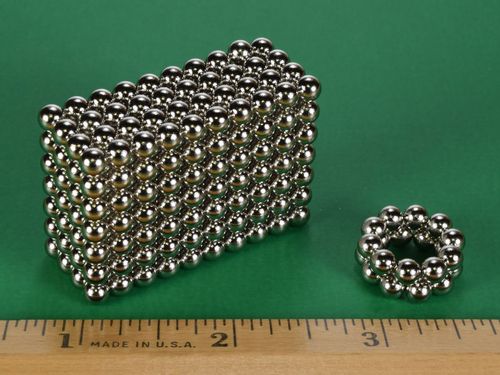

S3 - Neodymium Sphere Magnet

s3-neodymium-sphere-magnet

s3-neodymium-sphere-magnet--thumbnail-1

s3-neodymium-sphere-magnet--thumbnail-2

$0.52

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.52	1-49
$0.51	50-99	2%
$0.50	100-249	4%
$0.48	250-499	8%
$0.47	500-999	10%
$0.46	1000-2499	12%
$0.45	2500-4999	13%
$0.43	5000-9999	17%
$0.42	10000-24999	19%
$0.41	25000-49999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/16" diameter
Tolerances: ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.015 oz (0.42 g)
Pull Force, Case 1: 0.91 lbs
Pull Force, Case 2: 1.10 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

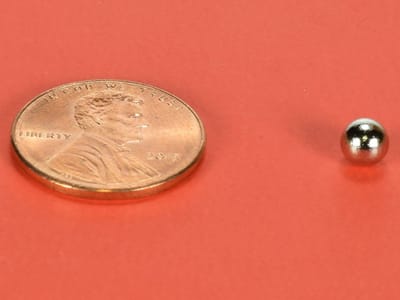

These sphere shaped magnets are 3/16" in diameter. The north and south poles are located at opposite sides of the sphere.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
