1/4 Inch Neodymium Rare Earth Sphere Magnet N42 PN: S4

1/4 Inch Neodymium Rare Earth Sphere Magnet N42

1/4 Inch Neodymium Rare Earth Sphere Magnet N42 --thumbnail-1

1/4 Inch Neodymium Rare Earth Sphere Magnet N42 --thumbnail-2

$0.95

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.95	1-24
$0.92	25-49	3%
$0.90	50-99	5%
$0.89	100-249	6%
$0.86	250-499	9%
$0.84	500-999	12%
$0.82	1000-2499	14%
$0.80	2500-4999	16%
$0.78	5000-9999	18%
$0.76	10000-24999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Magnetization direction

Dimensions: 1/4" diameter
Tolerances: ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.035 oz (1.01 g)
Pull Force, Case 1: 1.63 lbs
Pull Force, Case 2: 1.96 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

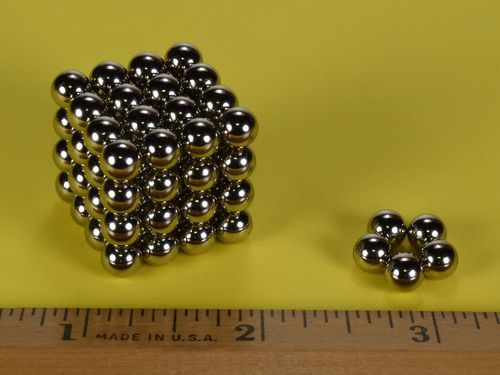

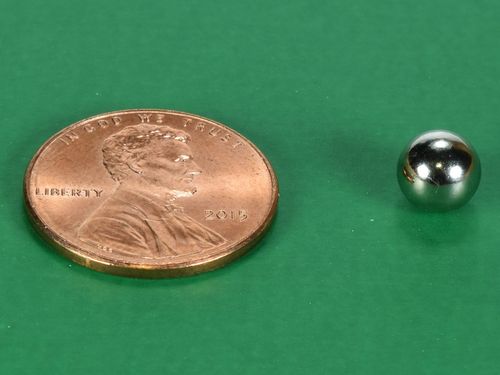

These spheres are one of our favorite magnets. These sphere shaped magnets are 1/4" in diameter. The north and south poles are located at opposite sides of the sphere.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
