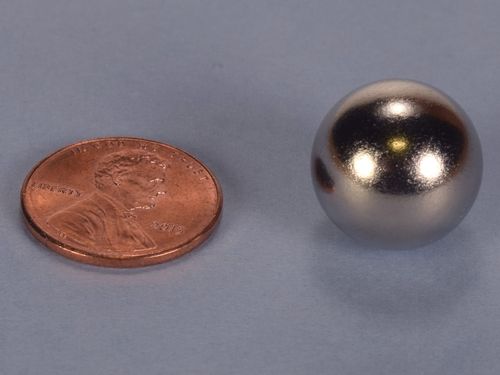

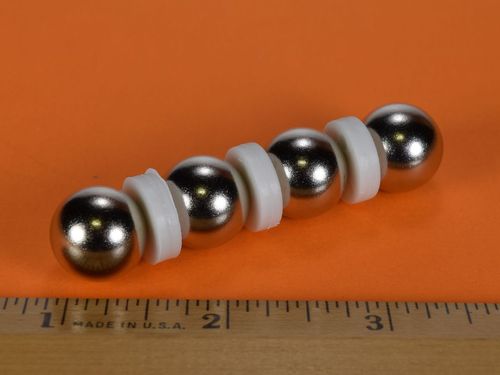

- Dimensions: 5/8" diameter
- Tolerances: ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: NiCuNi (Nickel)
- Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
- Weight: 0.554 oz (15.7 g)
- Pull Force, Case 1: 10.24 lbs
- Pull Force, Case 2: 12.15 lbs
- Surface Field: 8815 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
 | Click this link for a depiction of the magnetic field. |
 | View B-H curves for this magnet. |
 | Click this link to download a PDF Specification Sheet. |
 | Click this link to download a Certificate of Compliance for this product. |
 | Click this link to download a RoHS Statement of Compliance for this product. |
 | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
 | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
 | Click this link to download a Certificate of Origin for this product. |
 | Click this link for a REACH compliance statement. |
 | Click this link to download a .STEP file (3D model). |
 | Click this link to download an .IGS file (3D model). |
