B888-3PE
B888-3PE

B888-3PE
  • Description
  • Technical
  • Downloads

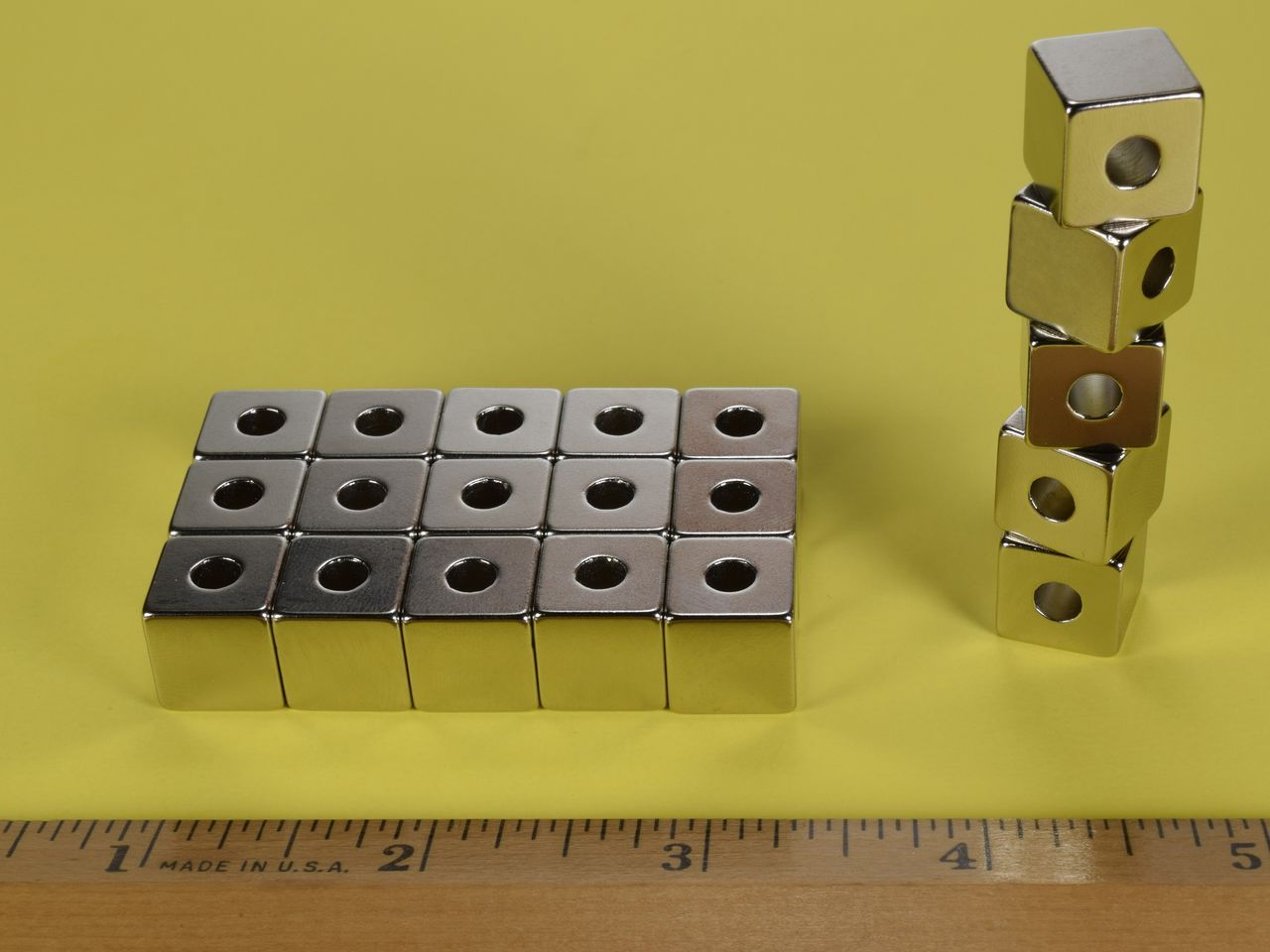

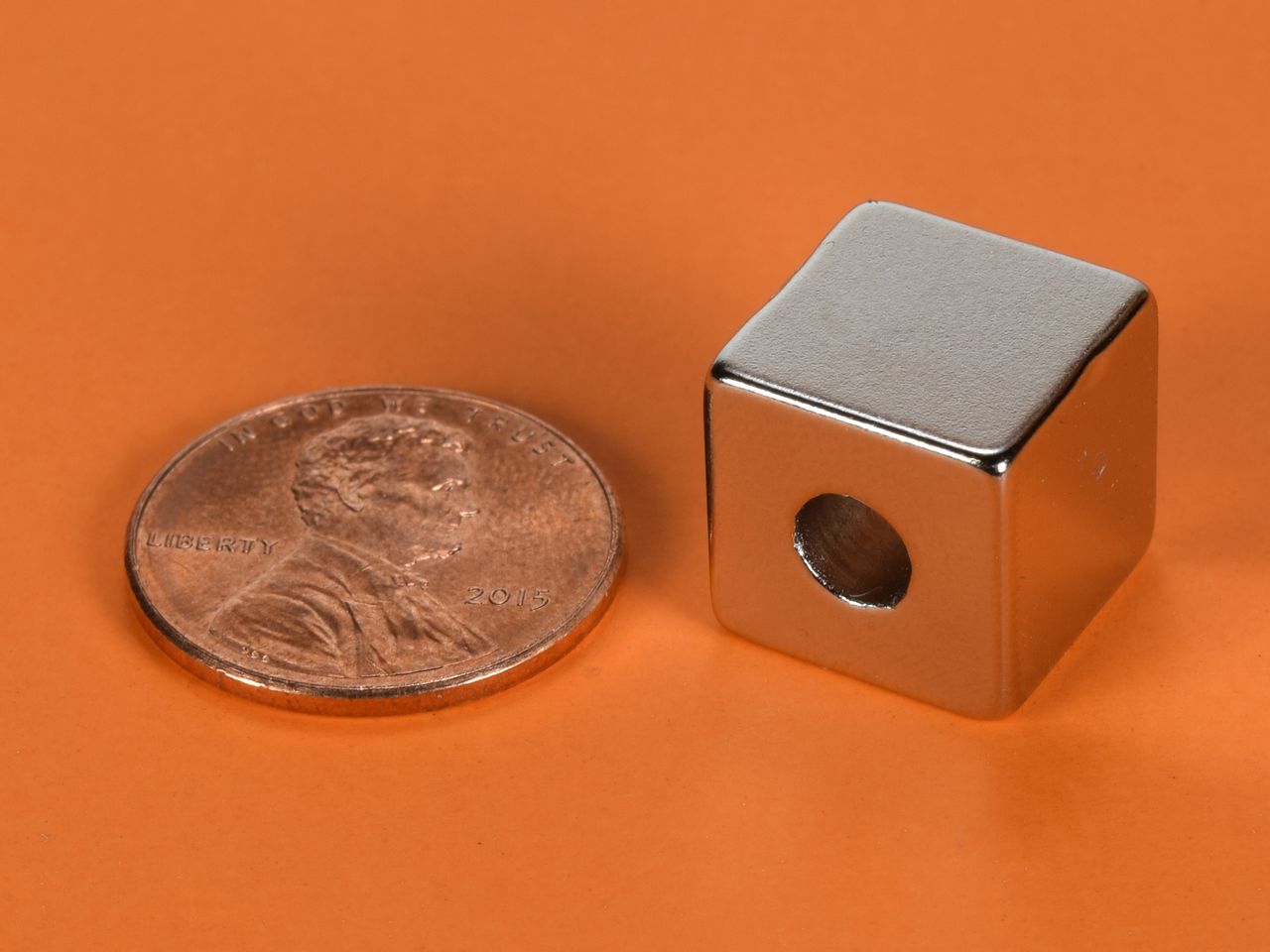

These handy 1/2" cubes have a 3/16" hole through the center which is perpendicular to the magnetization direction. This means that the poles are located on two opposing sides without the holes. These cubes are great for suspending metal objects and signs from a string. They can also be used to hang a string from a metal ceiling or beam. The string can be knotted or looped through the cube to secure it. These cubes have thousands of applications.

If you are looking for part number B888-3, here it is! Same magnet, new part number.

Case1 Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
Case2 Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
Case3 Pull Force, Case 3 vs. distance: Magnet to Magnet.
Case4 Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
Magnetic Field Click here for a depiction of the magnetic field.
BH Curves View B-H curves for this magnet.

SpecSheet Click here to download a PDF Specification Sheet.
Drawing Click here to download a PDF drawing of this product.
Cert Click here to download a Certificate of Compliance for this product.
RoHS Click here to download a RoHS Statement of Compliance for this product.
MSDS Click here to download a Material Safety Data Sheet (MSDS) for this product.
CMRT Click here to download a Conflict Minerals Reporting Template (CMRT).
Origin Click here to download a Certificate of Origin for this product.
STEP Click here to download a .STEP file (3D model).
IGS Click here to download an .IGS file (3D model).



   Download the free Adobe Acrobat Reader
 Price: $4.03

Quantity:
Qty:
 Add to cart

Price ea.Qty
$4.03 1-4
$3.94 5-9
$3.85 10-24
$3.76 25-49
$3.67 50-99
$3.58 100-249
$3.49 250-499
$3.40 500-999
$3.31 1000-2499
$3.22 2500-4999
