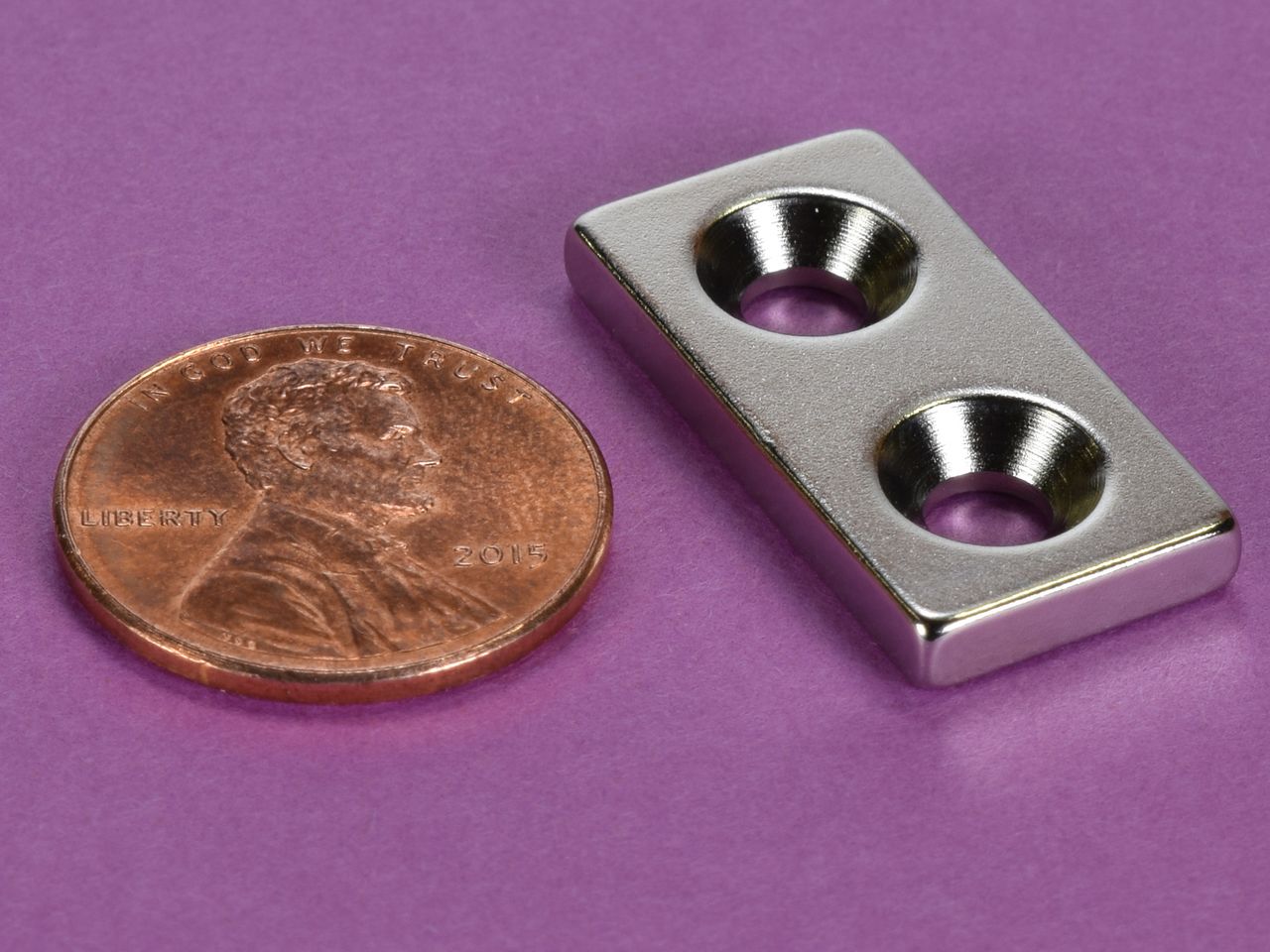

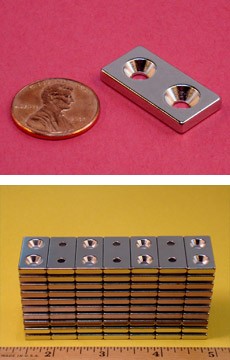

BX082CS-S - Neodymium Countersunk Block Magnet

bx082cs-s-neodymium-countersunk-block-magnet--thumbnail-1bx082cs-s-neodymium-countersunk-block-magnet--thumbnail-2
$2.23
-
+
Buy more, Save more!

Quantity based discounts

Price ea.QtyDiscount
$2.23 1-4
$2.185-92%
$2.1310-244%
$2.0825-497%
$2.0350-999%
$1.98100-24911%
$1.93250-49913%
$1.88500-99916%
$1.831000-249918%
$1.782500-499920%
Email us for even bigger discounts on higher order quantities
  • product description icon   Description
  • product technical icon   Technical
  • product download icon   Downloads
Magnetization directionHere we offer the popular size of 1" x 1/2" in 1/8" thickness with holes for two #6 flathead screws to allow for easy fastening. The BX082CS-S is magnetized with the south pole on the countersink side.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.

NOTE: As of May 2014, this product accepts #6 screws.

Case1Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
Case2Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
Case3Pull Force, Case 3 vs. distance: Magnet to Magnet.
Case4Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
BH CurvesView B-H curves for this magnet.

SpecSheetClick this link to download a PDF Specification Sheet.
DrawingClick this link to download a PDF drawing of this product.
CertClick this link to download a Certificate of Compliance for this product.
RoHSClick this link to download a RoHS Statement of Compliance for this product.
MSDSClick this link to download a Material Safety Data Sheet (MSDS) for this product.
CMRTClick this link to download a Conflict Minerals Reporting Template (CMRT).
OriginClick this link to download a Certificate of Origin for this product.
REACHClick this link for a REACH compliance statement.
STEPClick this link to download a .STEP file (3D model).
IGSClick this link to download an .IGS file (3D model).
