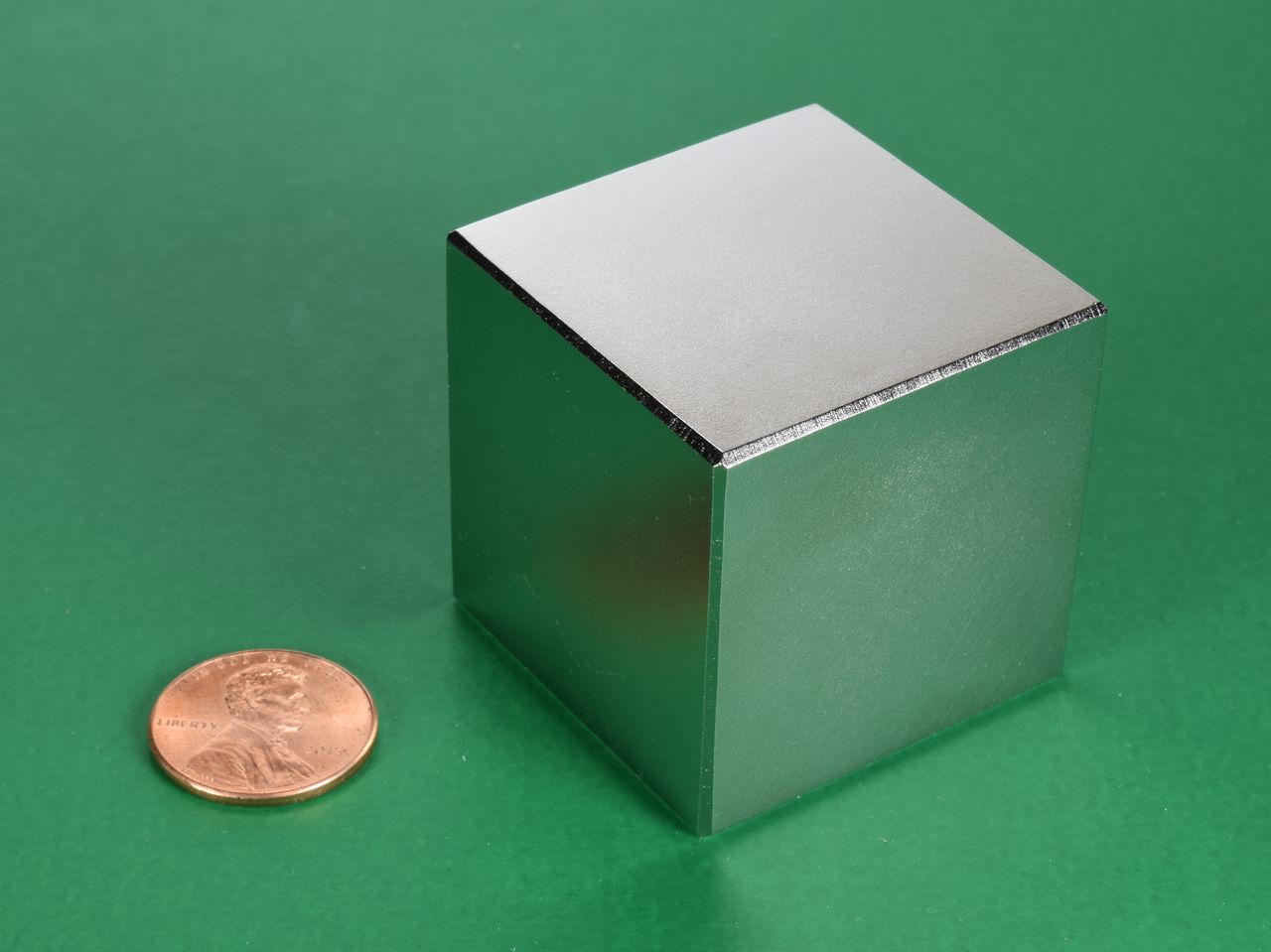

BX8X8X8 - Neodymium Block Magnet

• Dimensions: 1 1/2" x 1 1/2" x 1 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 14.6 oz. (415 g)
• Pull Force, Case 1: 192.4 lbs
• Pull Force, Case 2: 192.4 lbs
• Surface Field: 5754 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

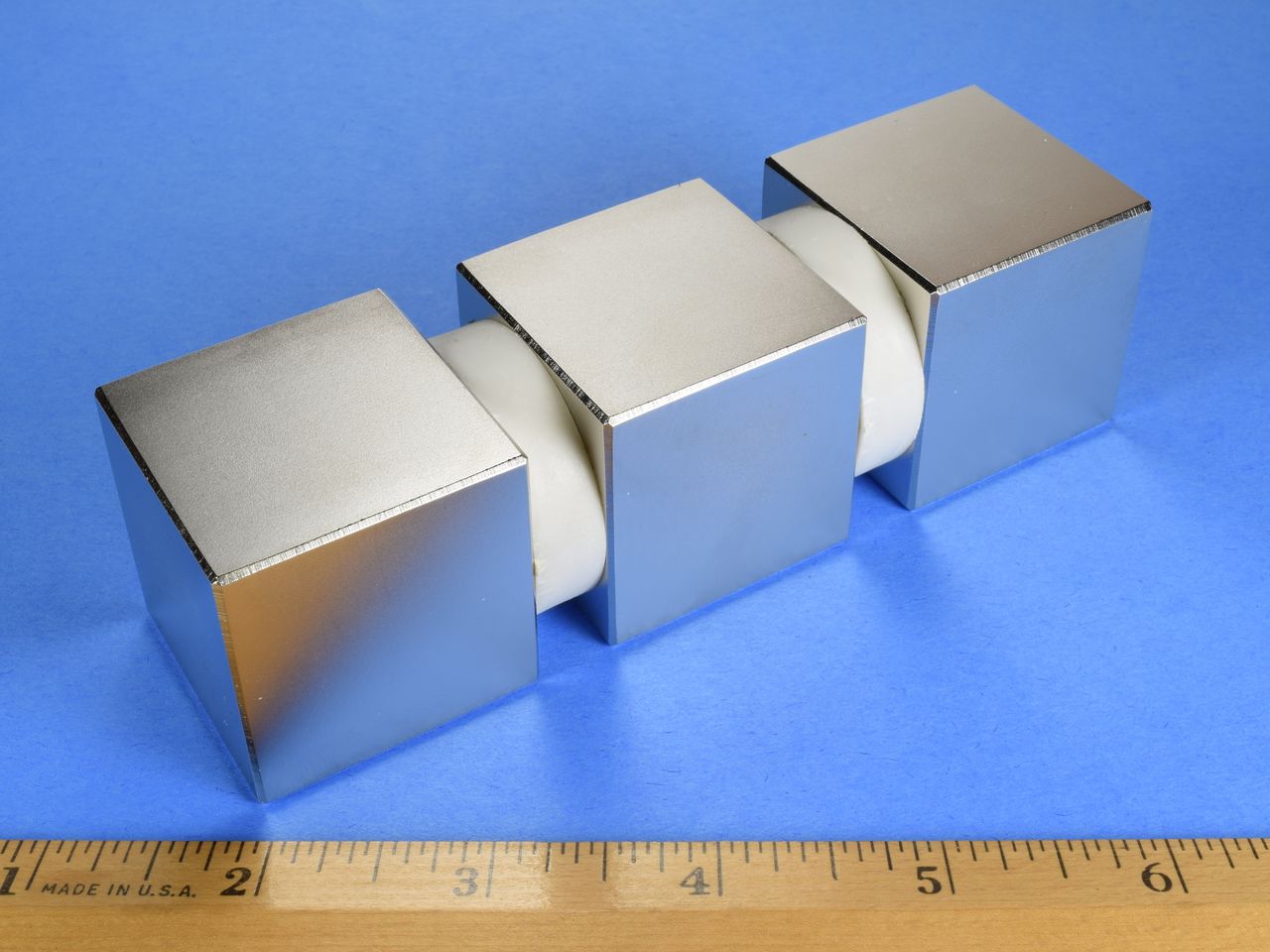

These 1 1/2" cubes are incredibly powerful and must be handled with care to avoid personal injury and damage to the magnets.  Two of these cubes stuck together are impossible to separate by hand.

This size is also available in grade N52 as part number BX8X8X8-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
