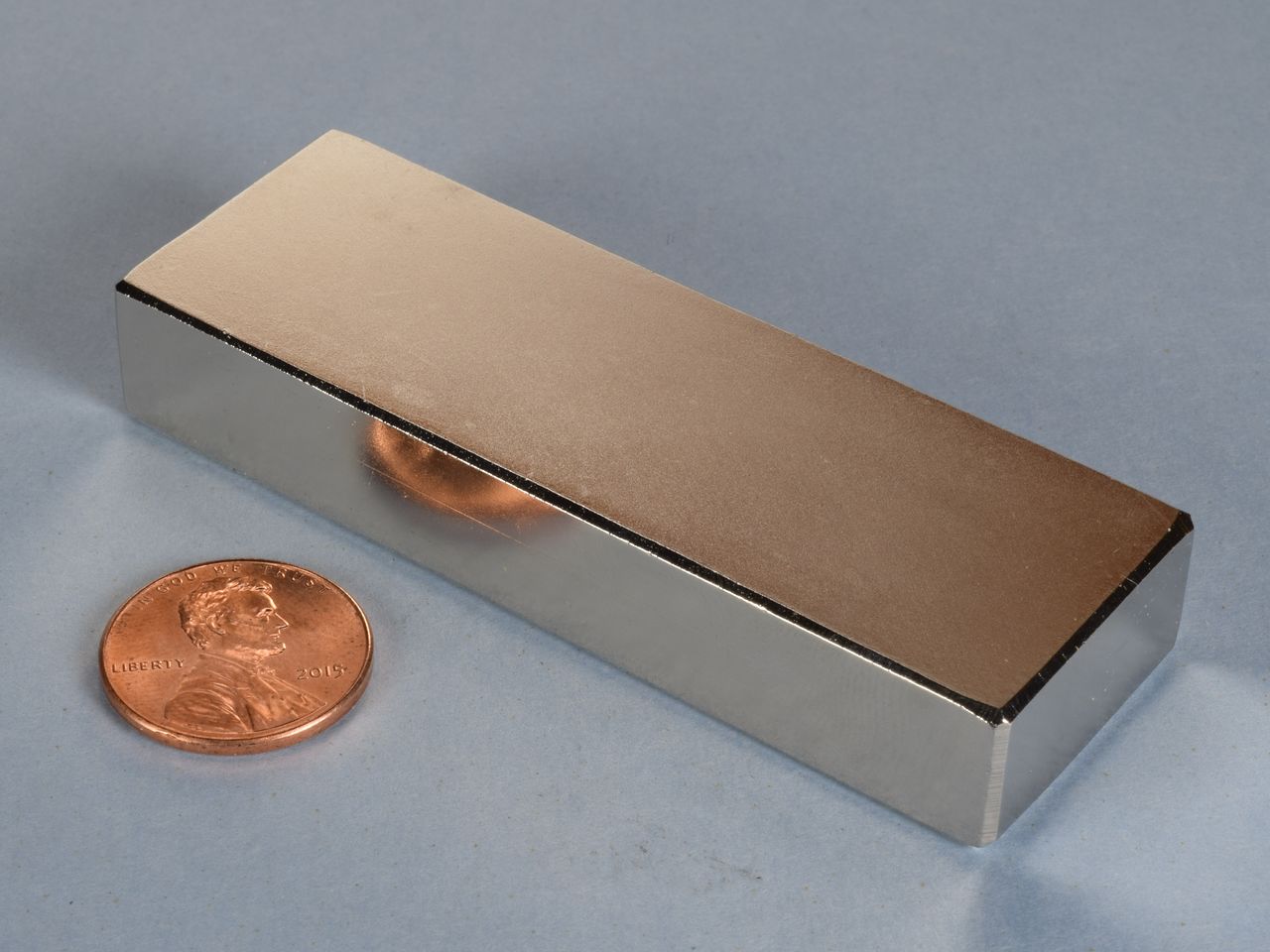

BZ0X08 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 3" x 1" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 6.50 oz. (184.4 g)
Pull Force, Case 1: 99.50 lbs
Pull Force, Case 2: 198.6 lbs
Surface Field: 3510 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

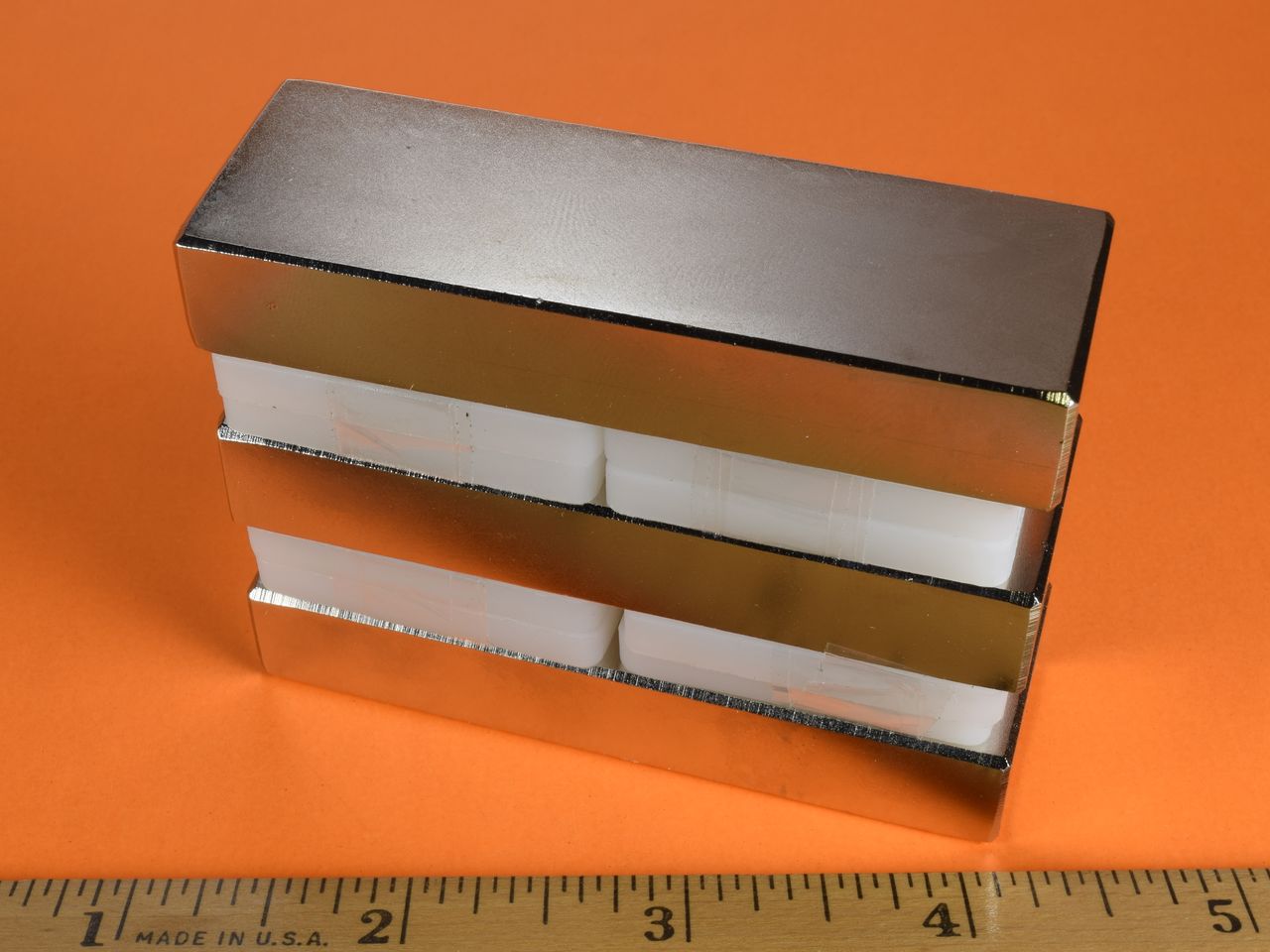

These 3" long blocks are very strong. They have an incredible amount of holding power. If they are attached to a flat, metal surface, they will be very difficult to remove. Handle with caution!

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $39.17

Quantity:

Qty:

Price ea.	Qty
$39.17	1
$38.30	2
$37.43	3-4
$36.56	5-6
$35.69	7-9
$34.82	10-24
$33.95	25-49
$33.08	50-99
$32.21	100-249
$31.34	250-499
For pricing at higher order quantities, please email us!
