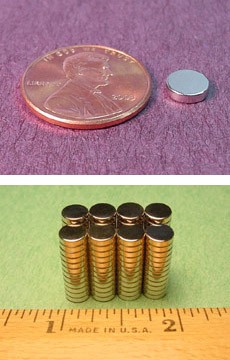

D41 - Neodymium Disc Magnet

Description
Technical
Downloads
Video

Dimensions: 1/4" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0133 oz. (0.377 g)
Pull Force, Case 1: 1.19 lbs
Pull Force, Case 2: 3.57 lbs
Surface Field: 2952 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Thin little 1/4" magnets. Very strong and very handy. Like most of the smaller magnets we sell, these are fascinating, reasonably easy to handle and aren't dangerous to fingers. Great multi-purpose size.

This size is also available in grade N52 as part number D41-N52, in grade N52 with a Gold finish as part number D41G-N52 and in High Temp grade N42SH as part number D41SH.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.23
