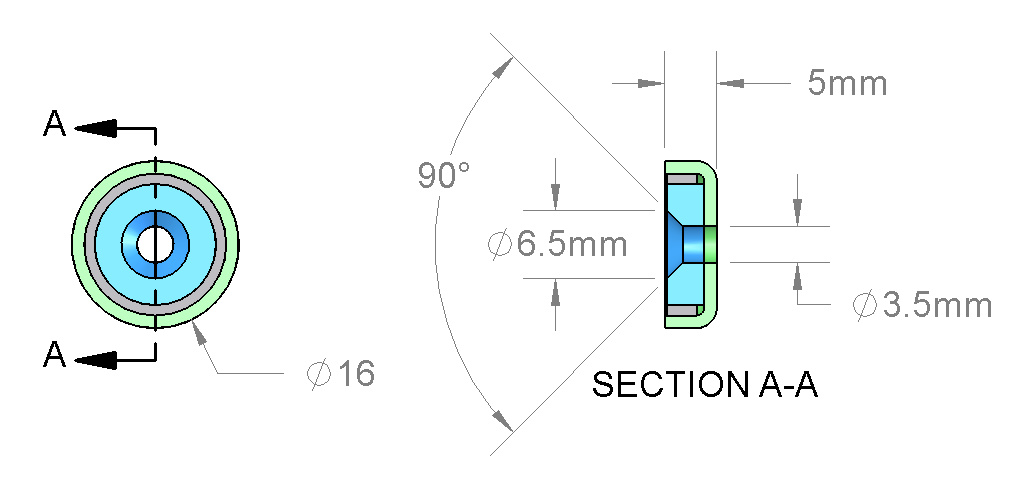

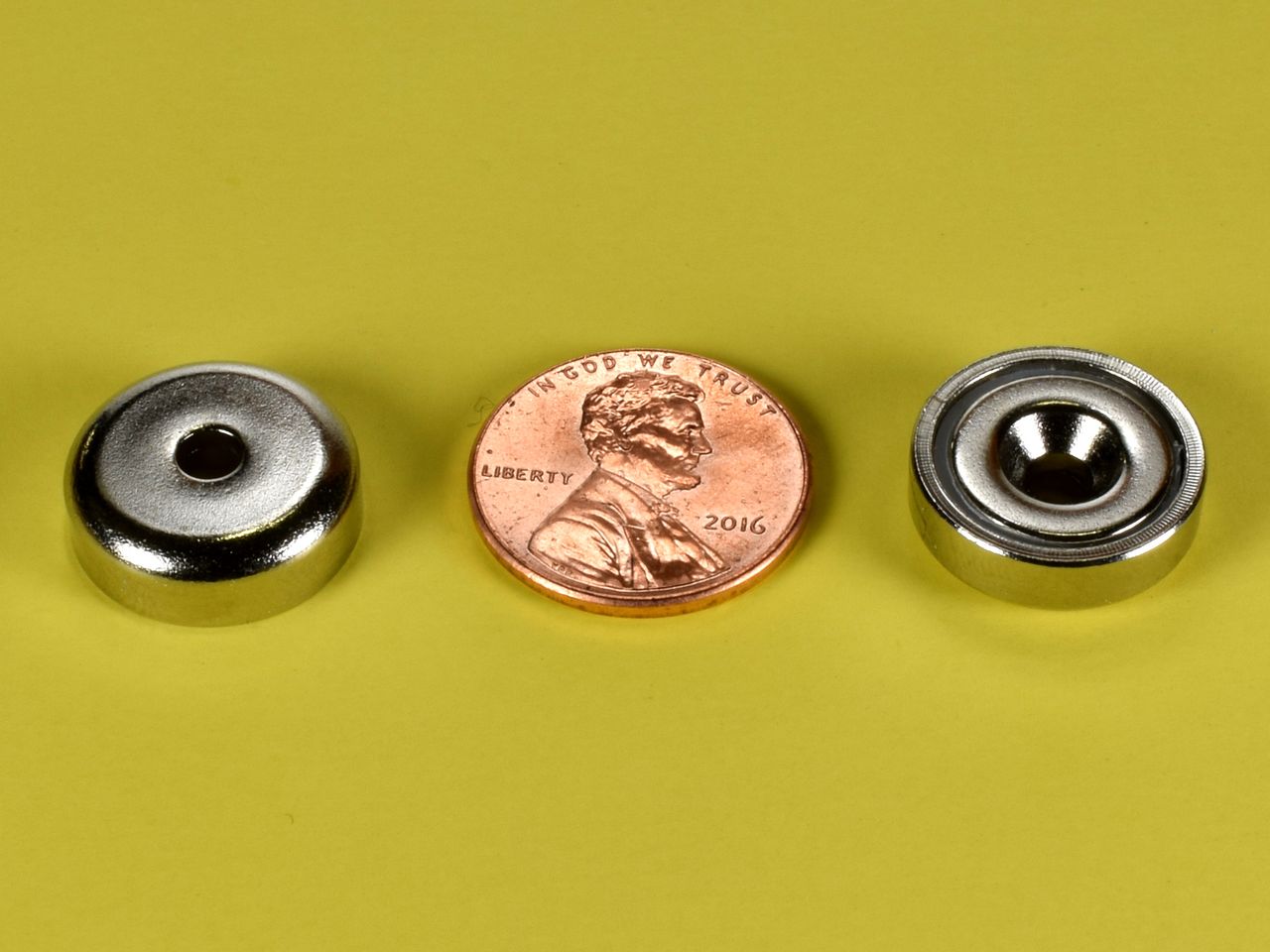

- Dimensions:
D=16mm (0.63")
d1=3.5mm (0.14") (Sized for M3 screw)
d2=6.5mm (0.26") (Tapered countersunk hole)
h=5mm (0.20") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.23 oz. (6.52 g)
- Pull Force: 11.00 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
