RA22CS-P-N52

Description
Technical
Downloads

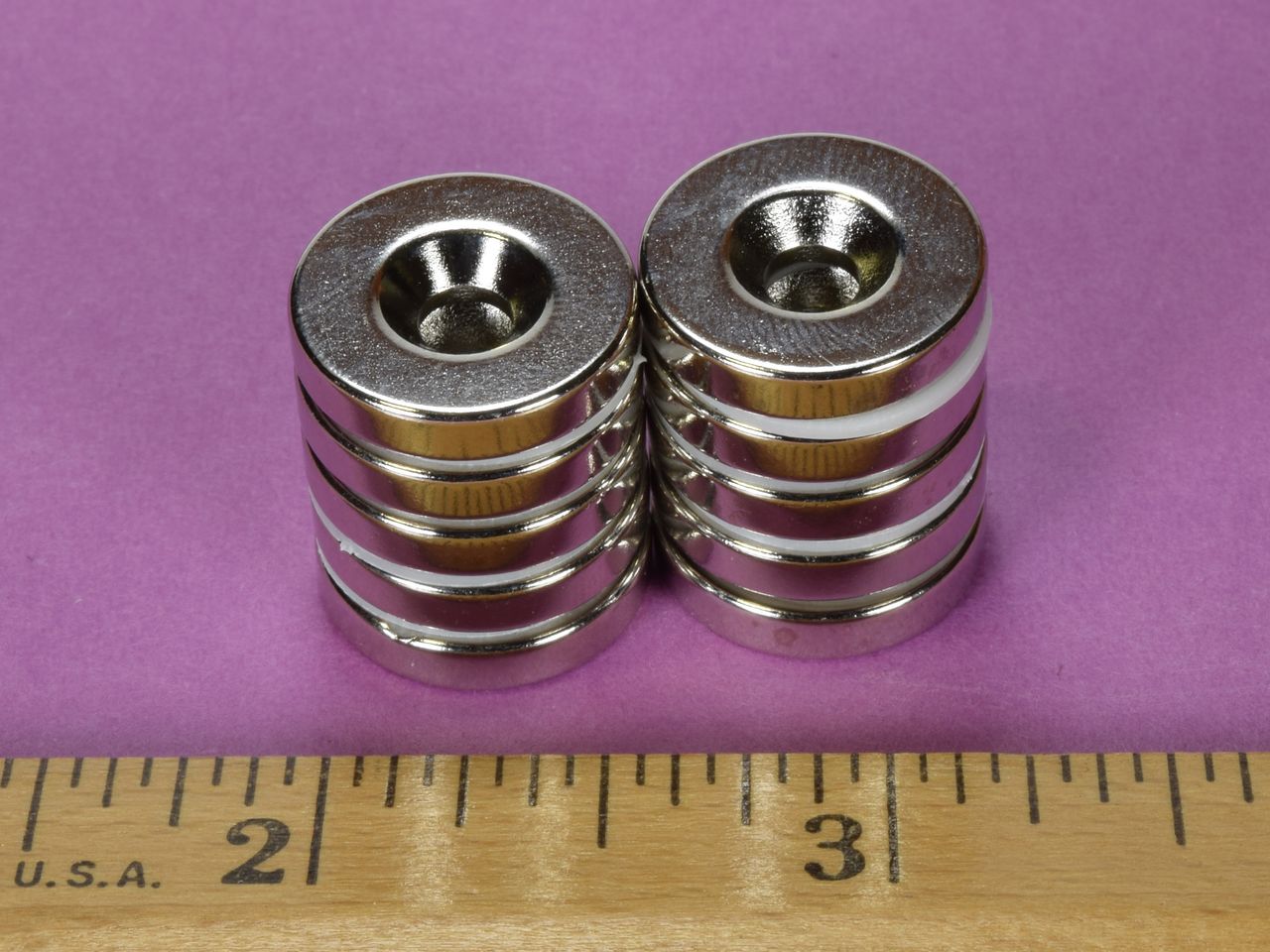

Dimensions: 5/8" od x 1/8" thick with countersunk hole for #6 screw
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.296 oz. (8.36 g) (per pair)
Pull Force, Case 1: 8.58 lbs
Pull Force, Case 2: 24.14 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

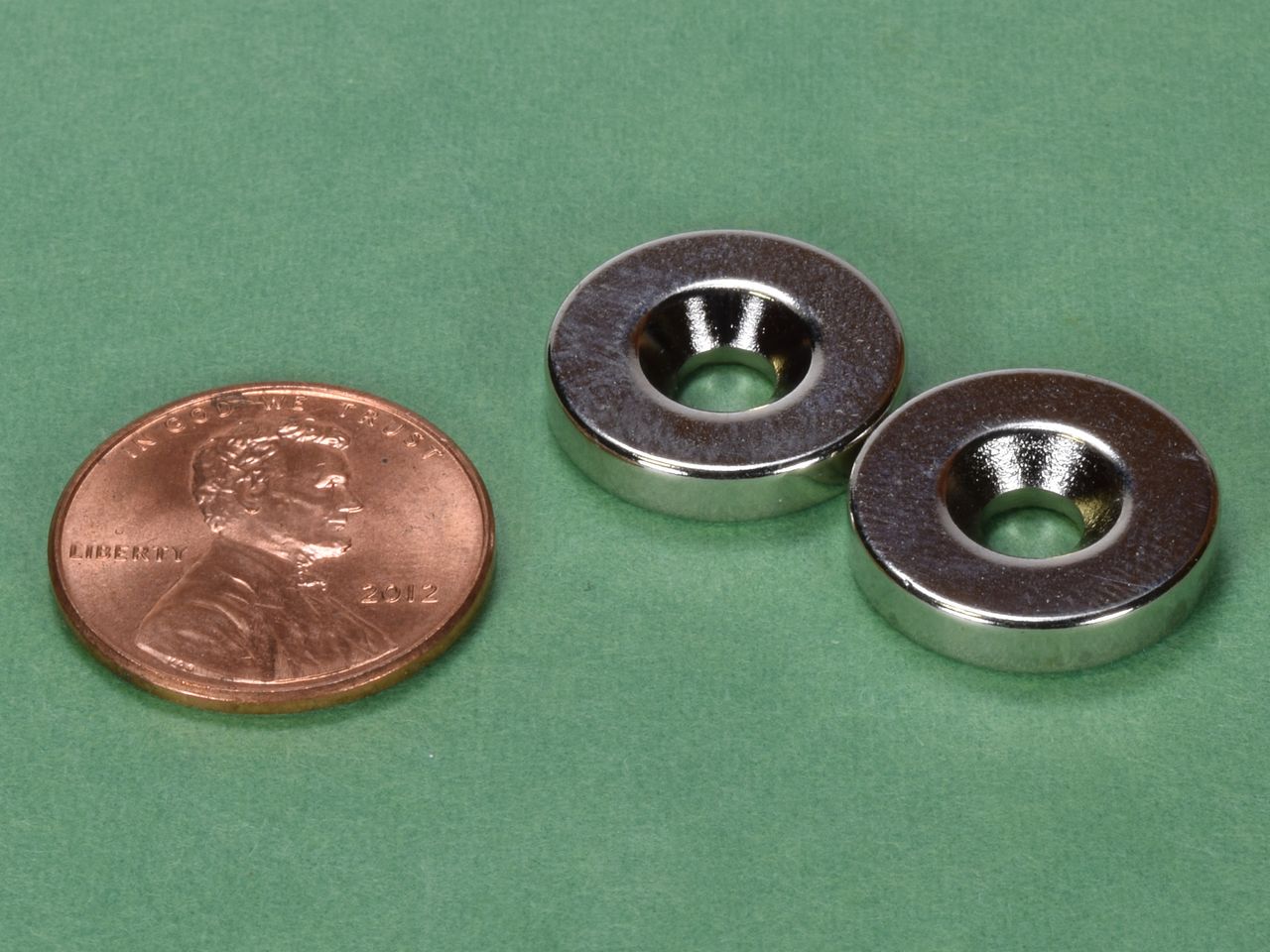

These rings are sold by the pair. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.

These countersunk rings can be used for a wide range of applications including door closures and tool hangers.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $3.47

Quantity:

Qty:

Price ea.	Qty
$3.47	1-4
$3.39	5-9
$3.31	10-24
$3.24	25-49
$3.16	50-99
$3.08	100-249
$3.00	250-499
$2.93	500-999
$2.85	1000-2499
$2.77	2500-4999
For pricing at higher order quantities, please email us!
