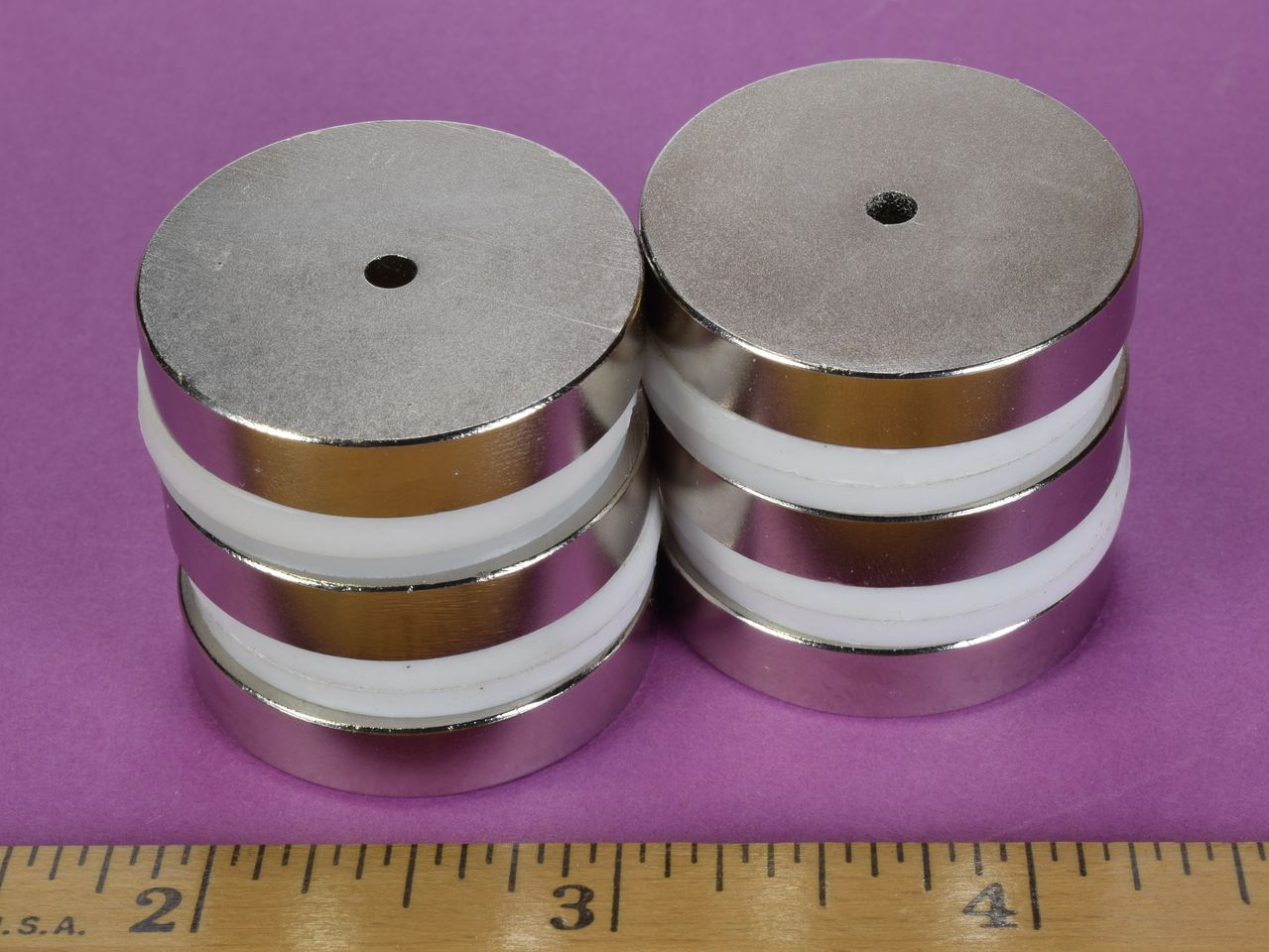

RX424

RX424

RX424

Description
Technical
Downloads

Dimensions: 1 1/4" od x 1/8" id x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.32 oz. (37.3 g)
Pull Force, Case 1: 30.76 lbs
Pull Force, Case 2: 88.57 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

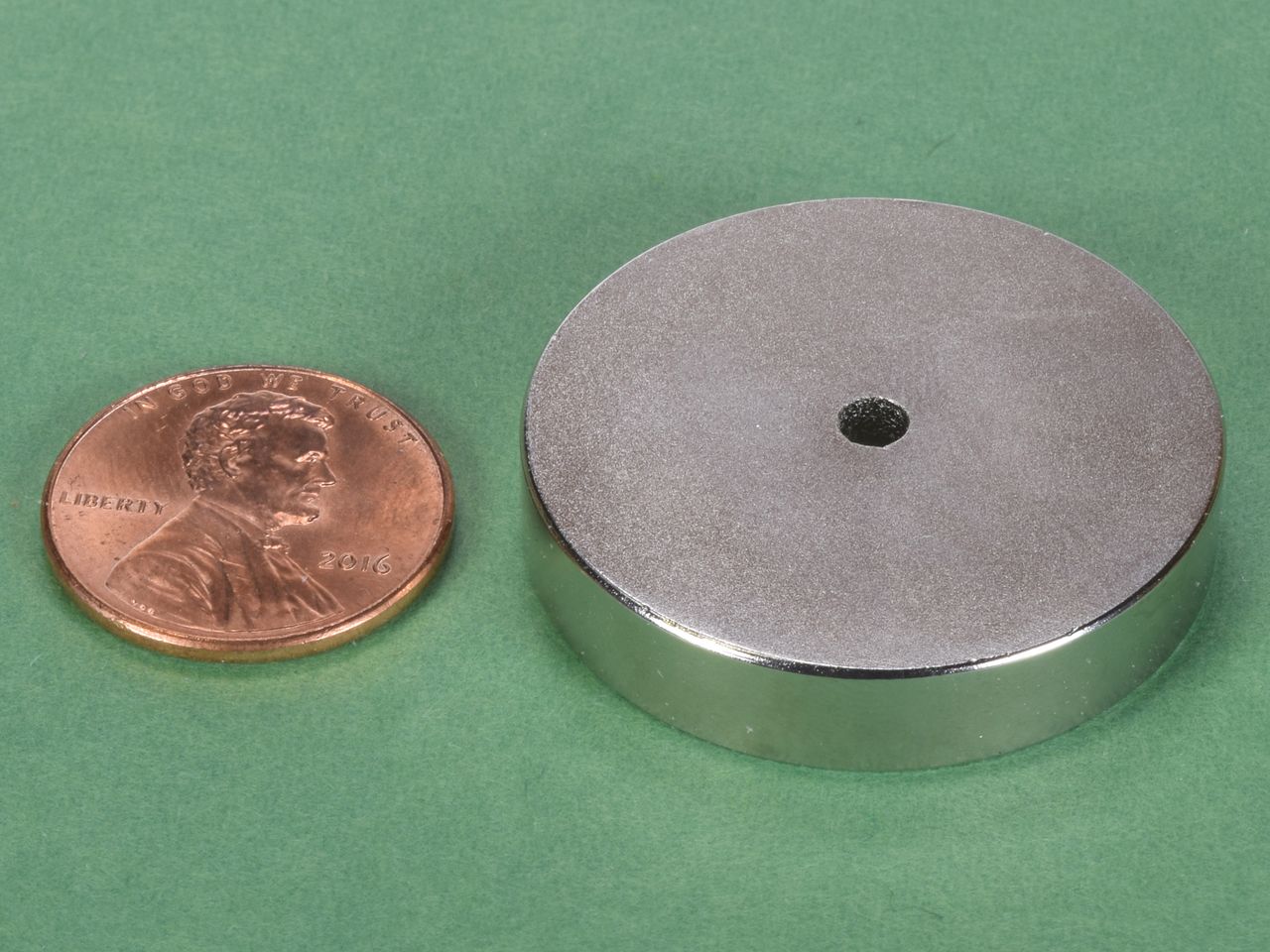

The RX424 is wide and flat. Its strength is quite impressive for its compact size. The 1/4" thickness of this ring makes it very sturdy as well. Great for science demonstrations and magnetic bearing appplications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $8.80

Quantity:

Qty:

Price ea.	Qty
$8.80	1
$8.60	2-4
$8.41	5-9
$8.21	10-24
$8.02	25-49
$7.82	50-99
$7.63	100-249
$7.43	250-499
$7.24	500-999
$7.04	1000-2499
For pricing at higher order quantities, please email us!
