B632 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 3/8" x 3/16" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.04 oz. (1.08 g)
Pull Force, Case 1: 3.13 lbs
Pull Force, Case 2: 5.83 lbs
Surface Field: 4404 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

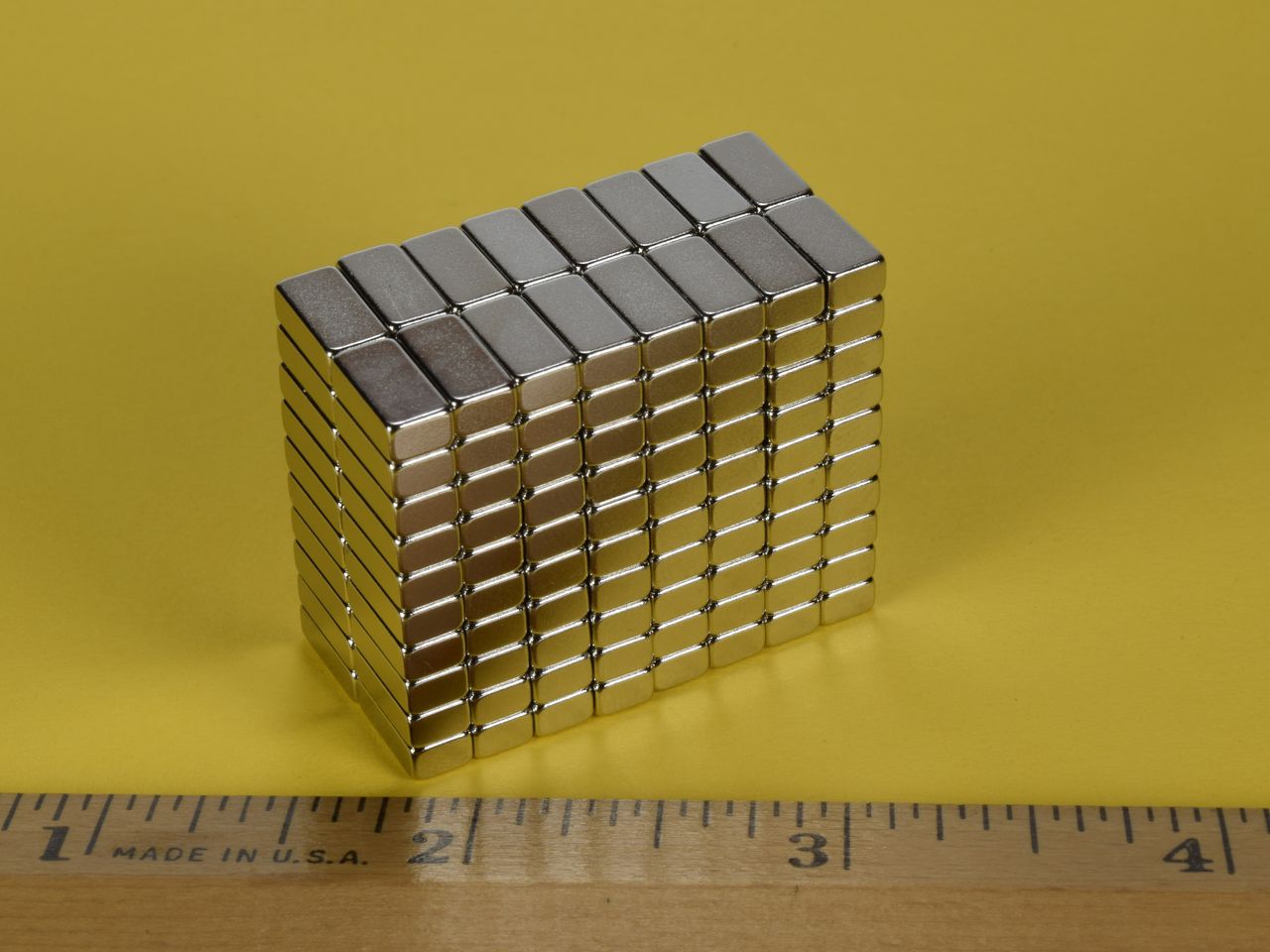

These amazing little blocks can be used for many applications where a small block magnet is needed. Great for light-duty projects such as crafts and models.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.45

Quantity:

Qty:

Price ea.	Qty
$0.45	1-49
$0.44	50-99
$0.43	100-249
$0.42	250-499
$0.41	500-999
$0.40	1000-2499
$0.39	2500-4999
$0.38	5000-9999
$0.37	10000-24999
$0.36	25000-49999
For pricing at higher order quantities, please email us!
