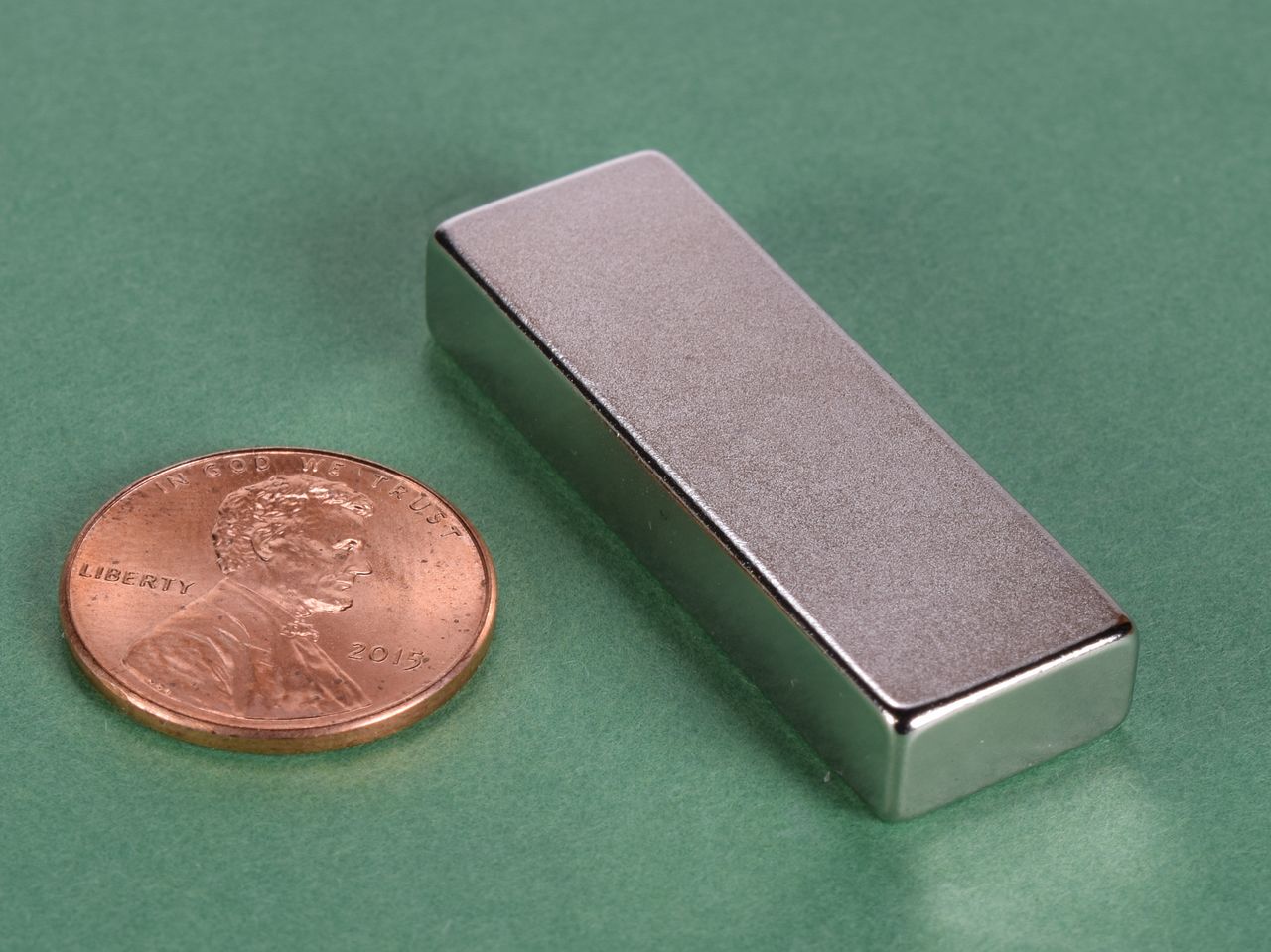

BX884 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1 1/2" x 1/2" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.813 oz. (23.0 g)
Pull Force, Case 1: 26.41 lbs
Pull Force, Case 2: 56.78 lbs
Surface Field: 3510 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

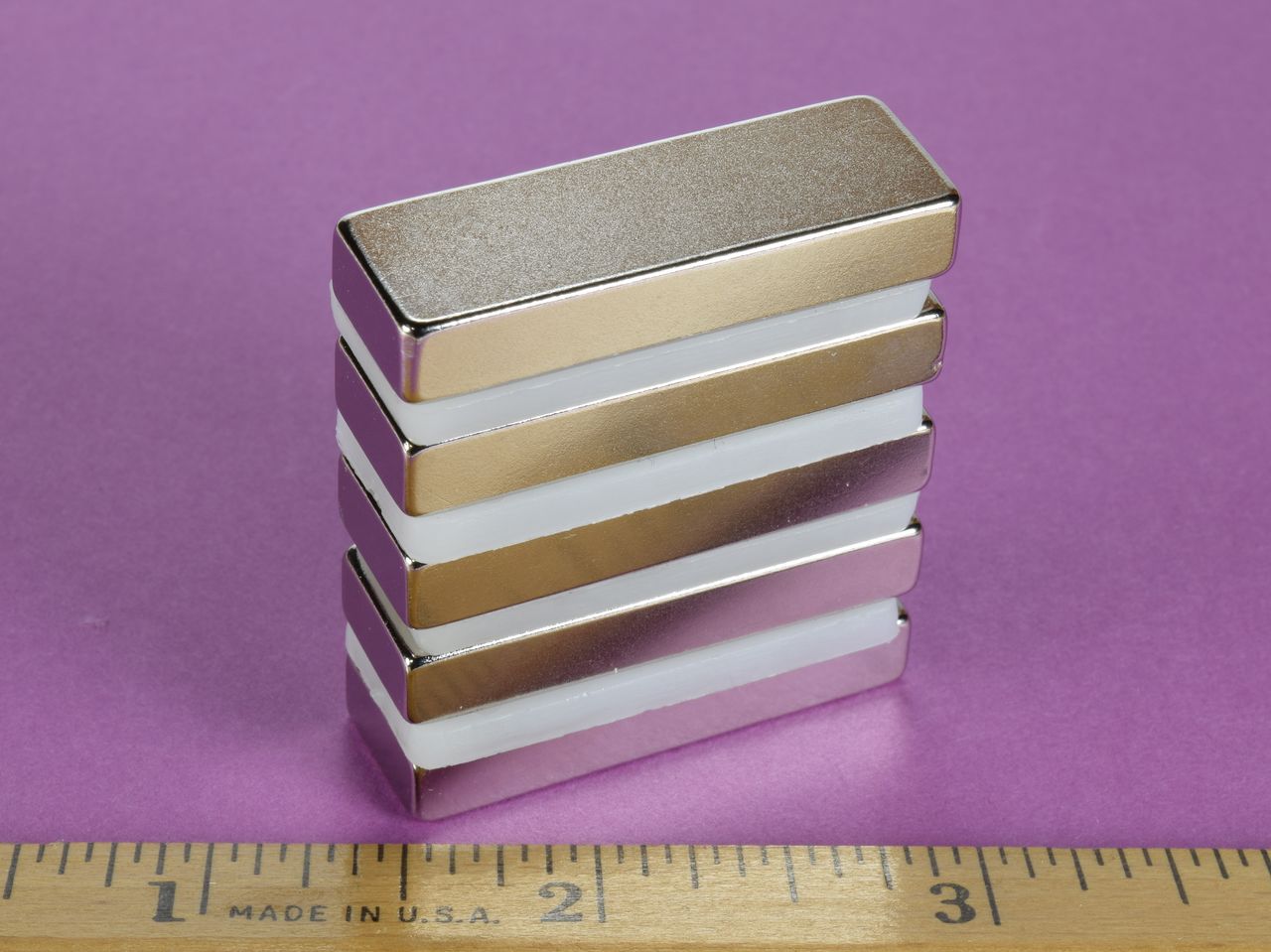

1.5" long block magnets in the popular 1/2" width and 1/4" thickness. Lots of uses!

This size is also available with 2 countersunk holes as part number BX884DCS.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $5.67

Quantity:

Qty:

Price ea.	Qty
$5.67	1
$5.54	2-4
$5.42	5-9
$5.29	10-24
$5.17	25-49
$5.04	50-99
$4.92	100-249
$4.79	250-499
$4.67	500-999
$4.54	1000-2499
For pricing at higher order quantities, please email us!
