DCC-N52

Description
Technical
Downloads

Dimensions: 3/4" dia. x 3/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.44 oz. (40.7 g)
Pull Force, Case 1: 40.24 lbs
Pull Force, Case 2: 45.19 lbs
Surface Field: 6619 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

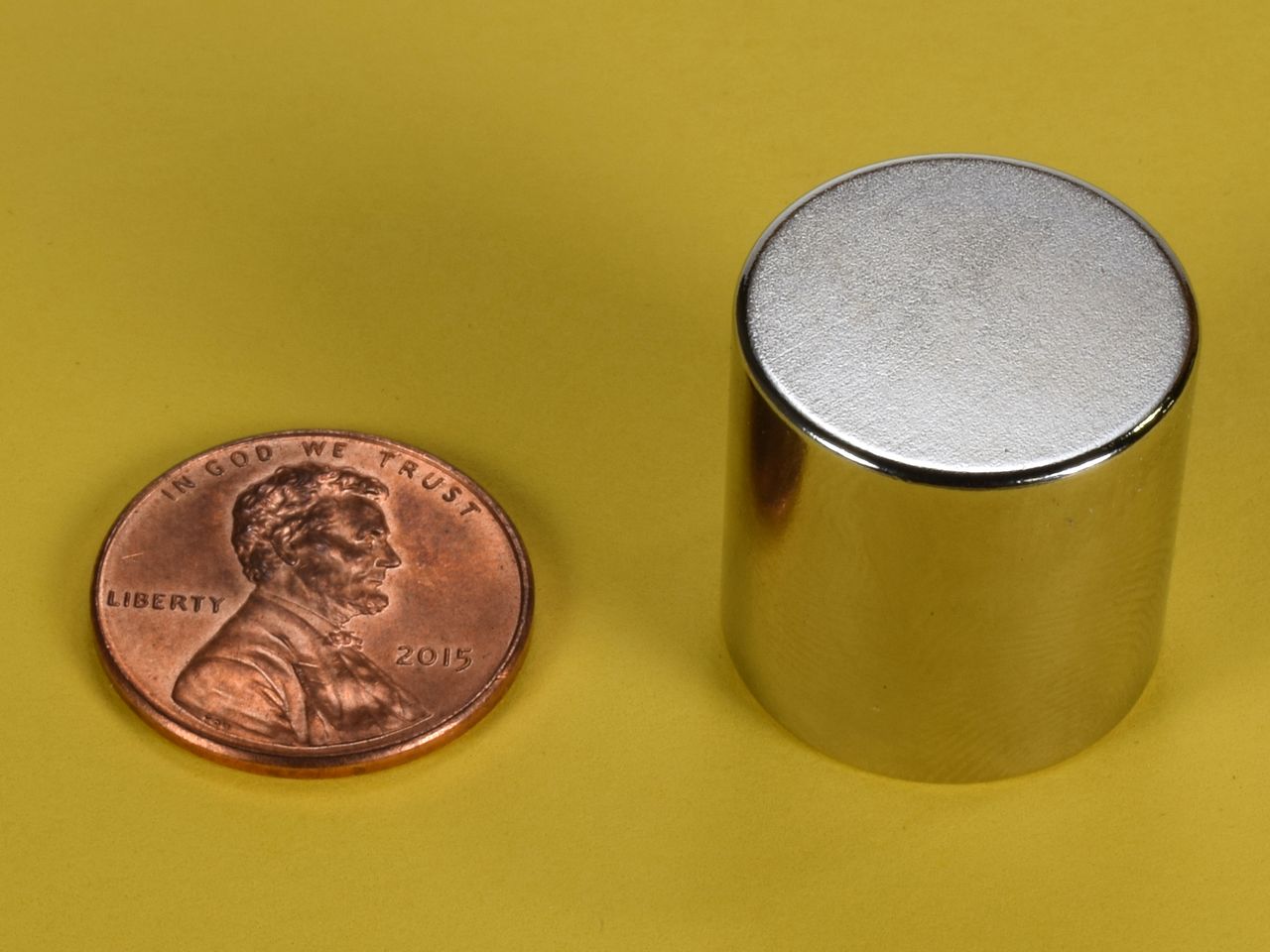

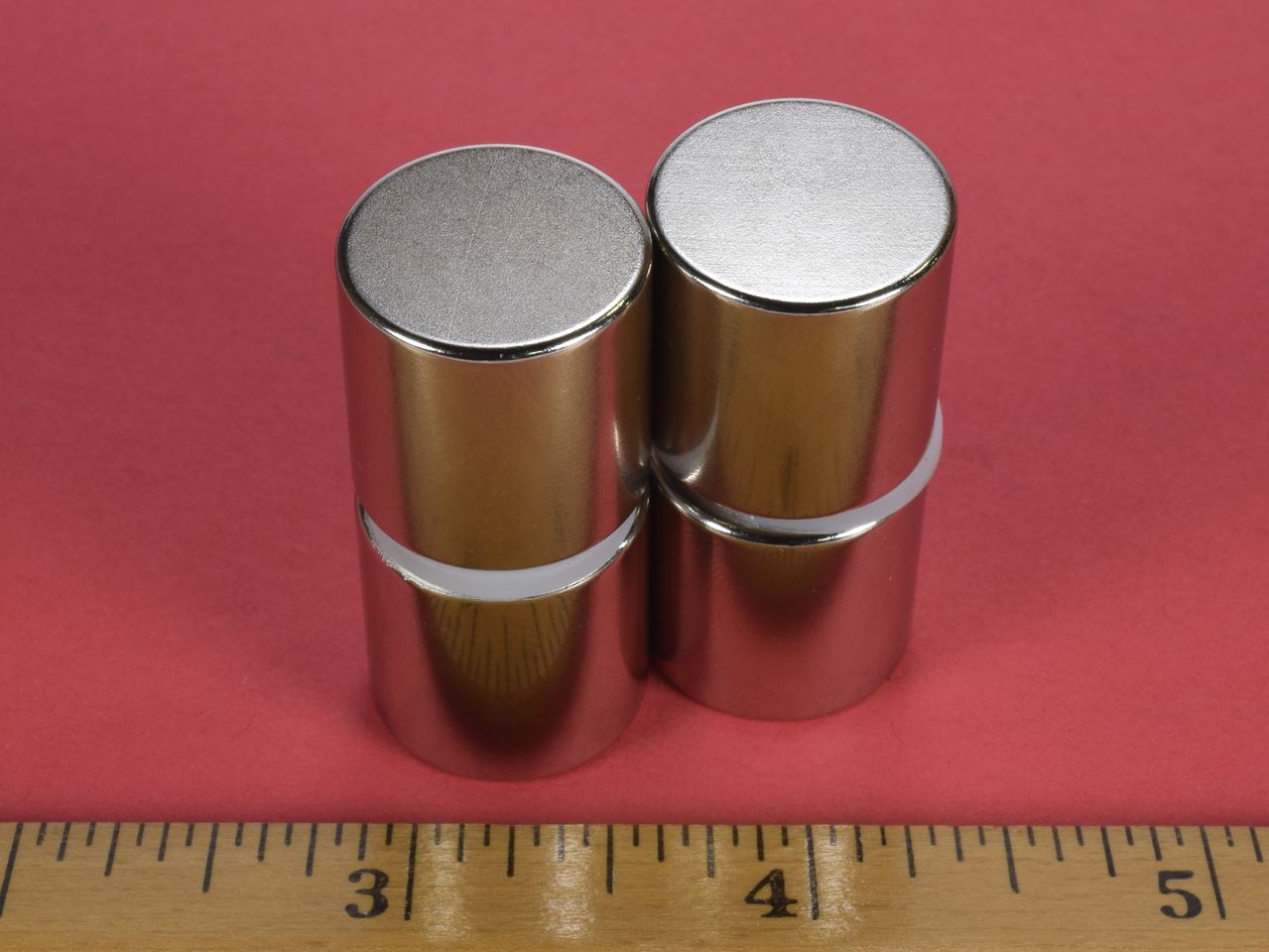

The DCC-N52 is one powerful cylinder magnet. They are amazingly strong and must always be handled with care. A great choice for heavier holding applications.

Also available in this size: DCC (Grade N42, Axially Magnetized) and DCCDIA (Grade N42, Diametrically Magnetized)

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $12.15

Quantity:

Qty:

Price ea.	Qty
$12.15	1
$11.88	2
$11.61	3-4
$11.34	5-9
$11.07	10-24
$10.80	25-49
$10.53	50-99
$10.26	100-249
$9.99	250-499
$9.72	500-999
For pricing at higher order quantities, please email us!
