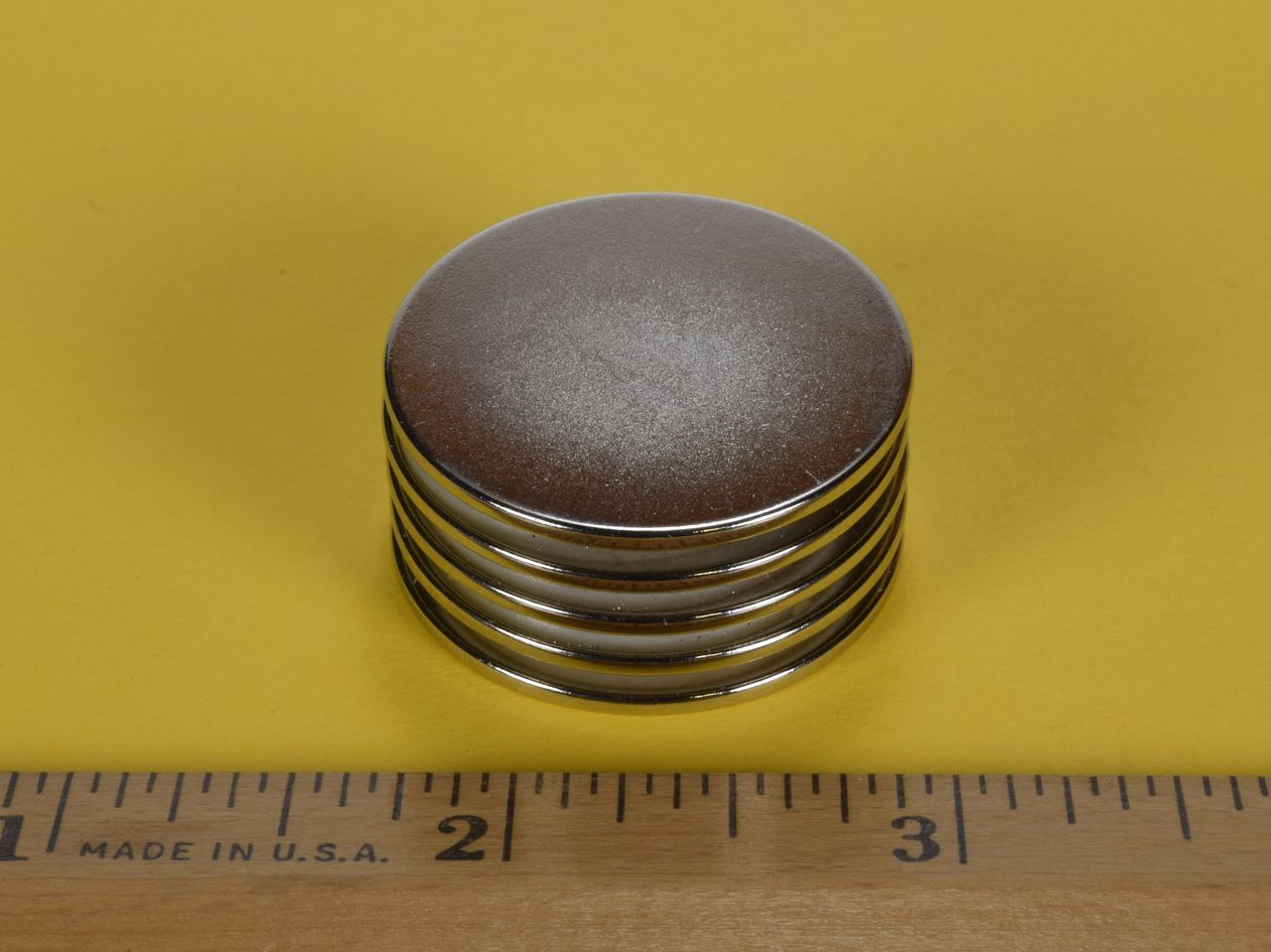

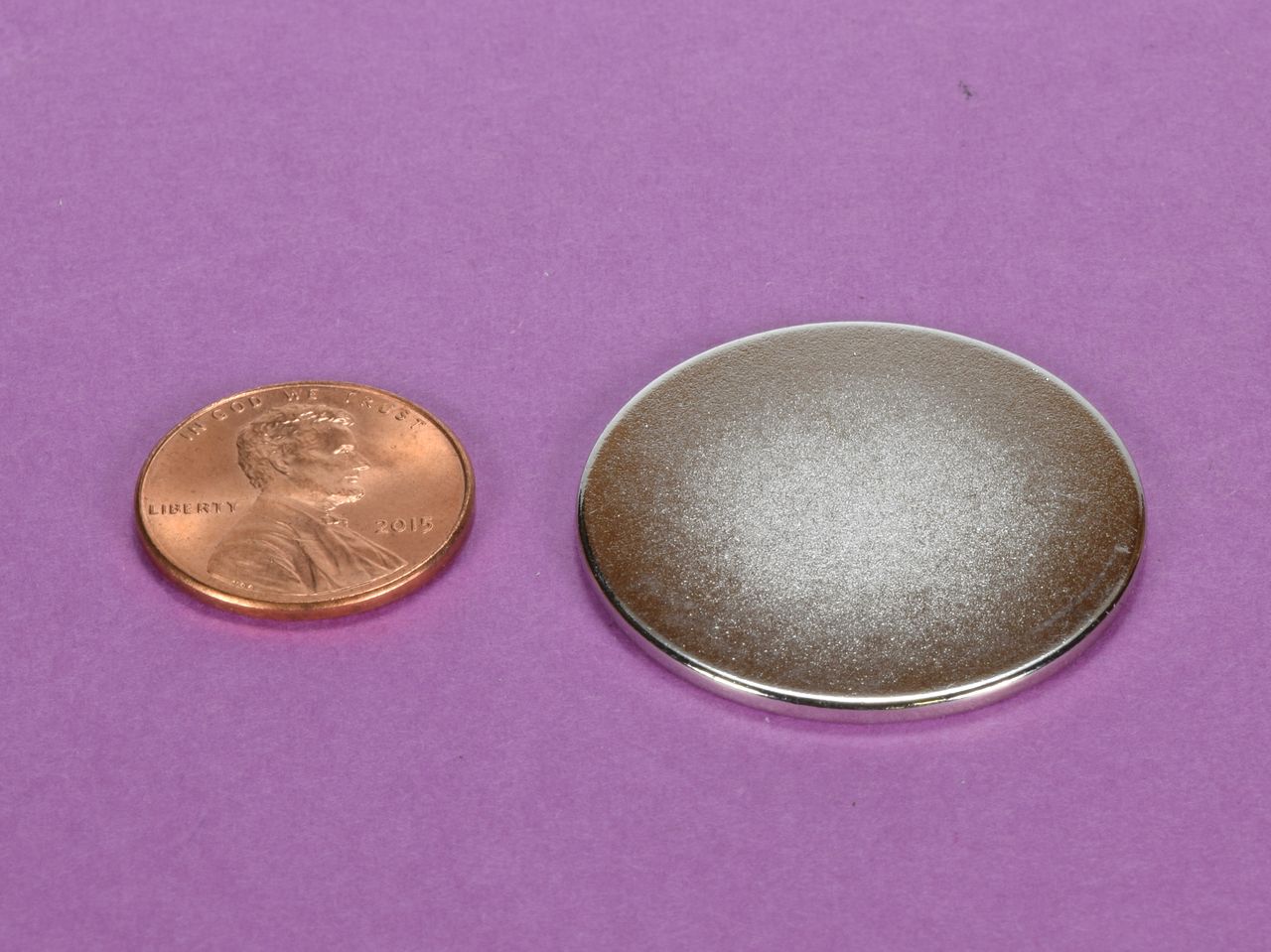

DX41 - Neodymium Disc Magnet

• Dimensions: 1 1/4" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.332 oz. (9.43 g)
• Pull Force, Case 1: 7.26 lbs
• Pull Force, Case 2: 80.55 lbs
• Surface Field: 662 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These strong, thin discs are a great solution for a wide range of applications. They are quite powerful and amazingly useful. The DX41 should always be handled with care so as not to damage this thin, but magnetically mighty disc.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
