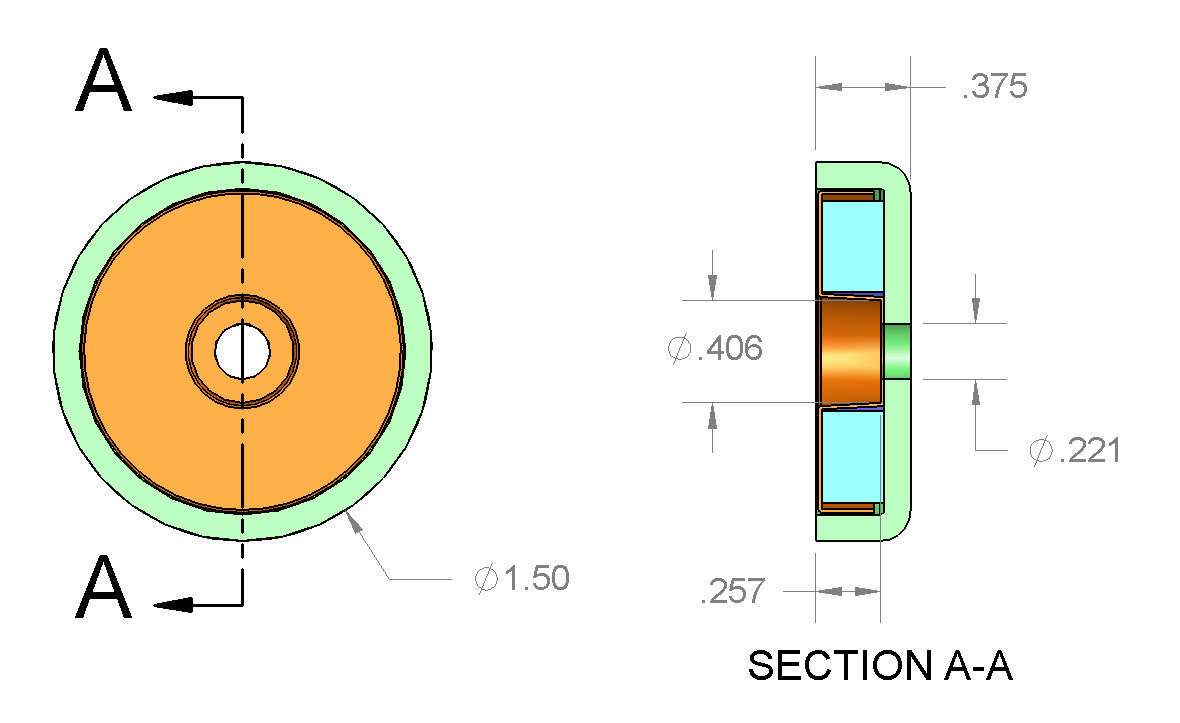

Dimensions:
Diameter = 1 1/2" (1.5")
Hole Size = #10 Screw
Height = 3/8" (0.375") -
Material: Assembly of:
Stainless steel cup,
Stainless steel cover &
NdFeB magnet, grade N42 - Plating/Coating: None (stainless steel construction)
- Weight: 2.3 oz. (65.24 g)
- Pull Force: 54 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

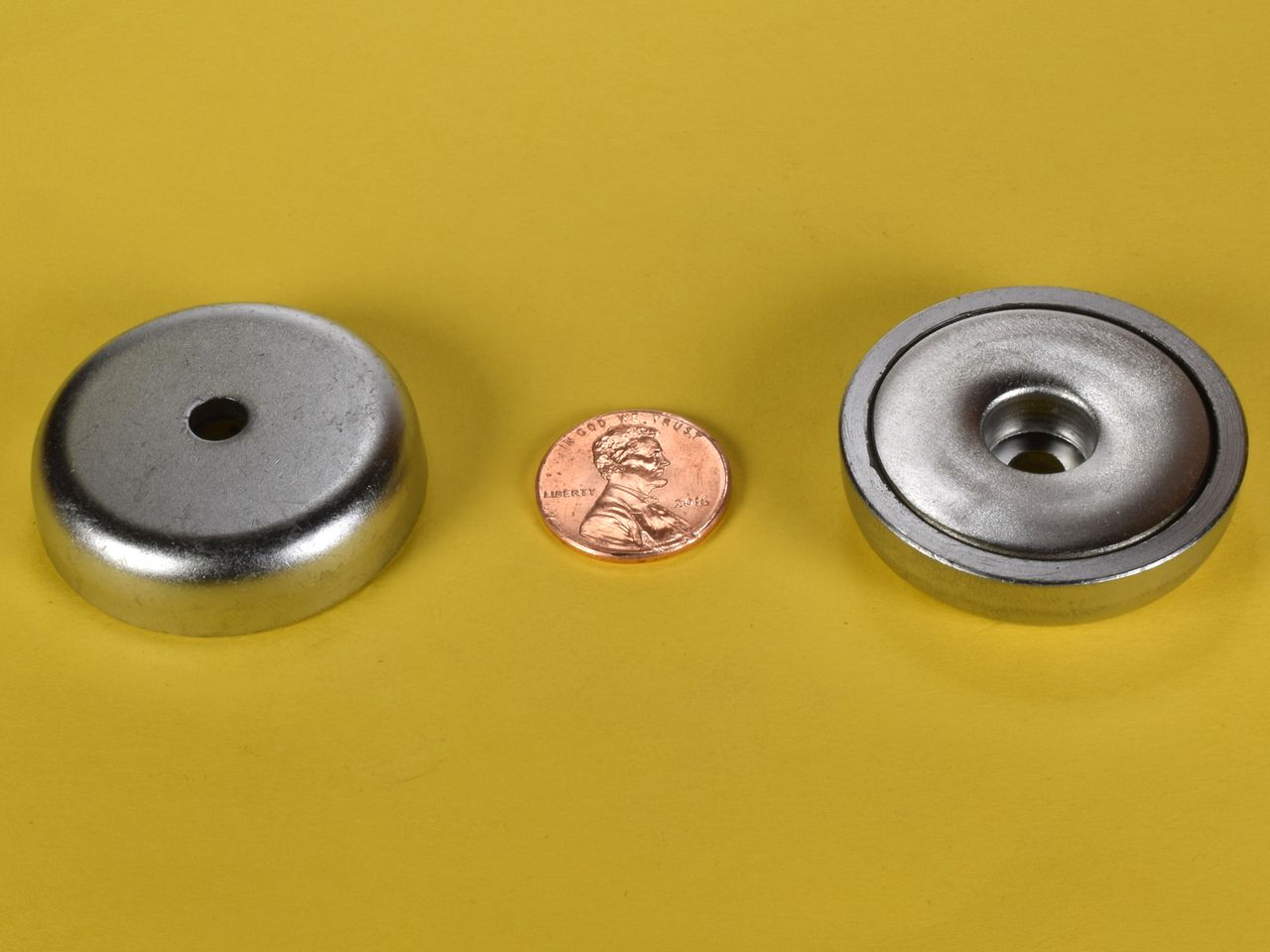

This stainless steel mounting magnet is a new, water resistant design available exclusively at K&J Magnetics. It allows neodymium mounting magnets to be used in wet environments, where occasional contact with moisture is expected.
Most of our other Mounting Magnets are made with nickel plated magnets that are exposed, with a nickel plated steel cup that the magnet sits in. In outdoor use where magnets can occasionally get wet, both the magnet and the steel cup can corrode or rust. The exposed portions of this sealed magnet are all stainless steel, which protects the internal magnet from corrosion.
While not quite as magnetically strong as non-stainless mounting magnets like the MMS-B-X8, this product is a great, water resistant solution.
Note that the appearance of these magnets is not as shiny as our nickel plated products.
Click here for a depiction of the magnetic field. | |
View B-H curves for this magnet. |
Click here to download a PDF Specification Sheet. | |
Click here to download a PDF drawing of this product. | |
Click here to download a Certificate of Compliance for this product. | |
Click here to download a RoHS Statement of Compliance for this product. | |
Click here to download a Conflict Minerals Reporting Template (CMRT). | |
Click here to download a Certificate of Origin for this product. | |
Click here for a REACH compliance statement. |
