NSW62 - Steel Cups and Washers

NSW62NSW62
$0.35
-
+

Quantity Discounts

Price ea.Qty
$0.35 1-9
$0.3210-24
$0.3025-49
$0.2850-99
$0.27100-249
$0.26250-499
$0.24500-999
$0.221000-2499
$0.212500-4999
For pricing at higher order quantities,
please email us!
  • product description icon   Description
  • product download icon   Downloads

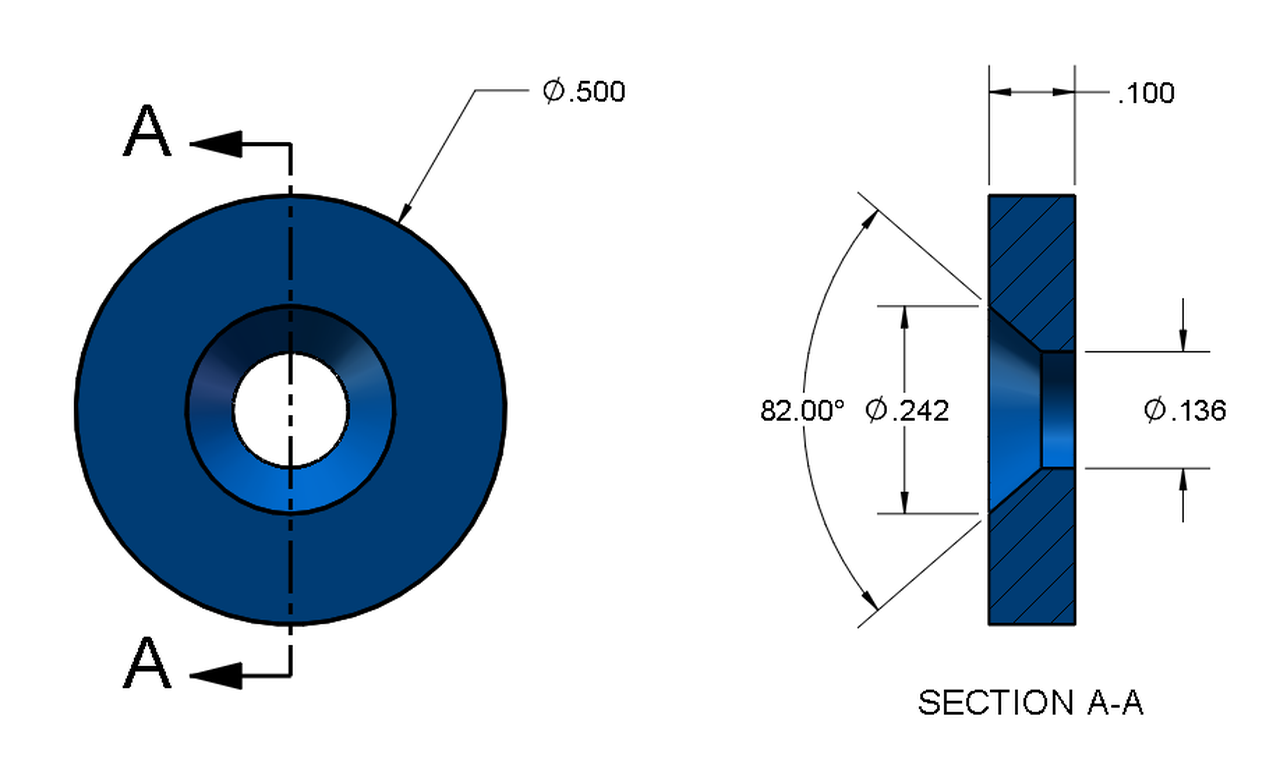

Steel Washer, Countersunk, Nickel Plated
1/2" diameter x 0.1" thick

These washers are designed for use with our NSC61 steel cups and D61 disc magnets. They can be used to create a clean, modern latch assembly for doors and hatches. The washer is countersunk to accept a wood or metal screw to provide a flat surface area for magnet contact.

These parts are not magnets. Magnets and mounting screws not included with this part. Magnets can be purchased separately.



DrawingClick here to download a PDF drawing of this product.
CertClick here to download a Certificate of Compliance for this product.
RoHSClick here to download a RoHS Statement of Compliance for this product.
CMRTClick here to download a Conflict Minerals Reporting Template (CMRT).
OriginClick here to download a Certificate of Origin for this product.
REACHClick here for a REACH compliance statement.
STEPClick here to download a .STEP file (3D model).
IGSClick here to download an .IGS file (3D model).
