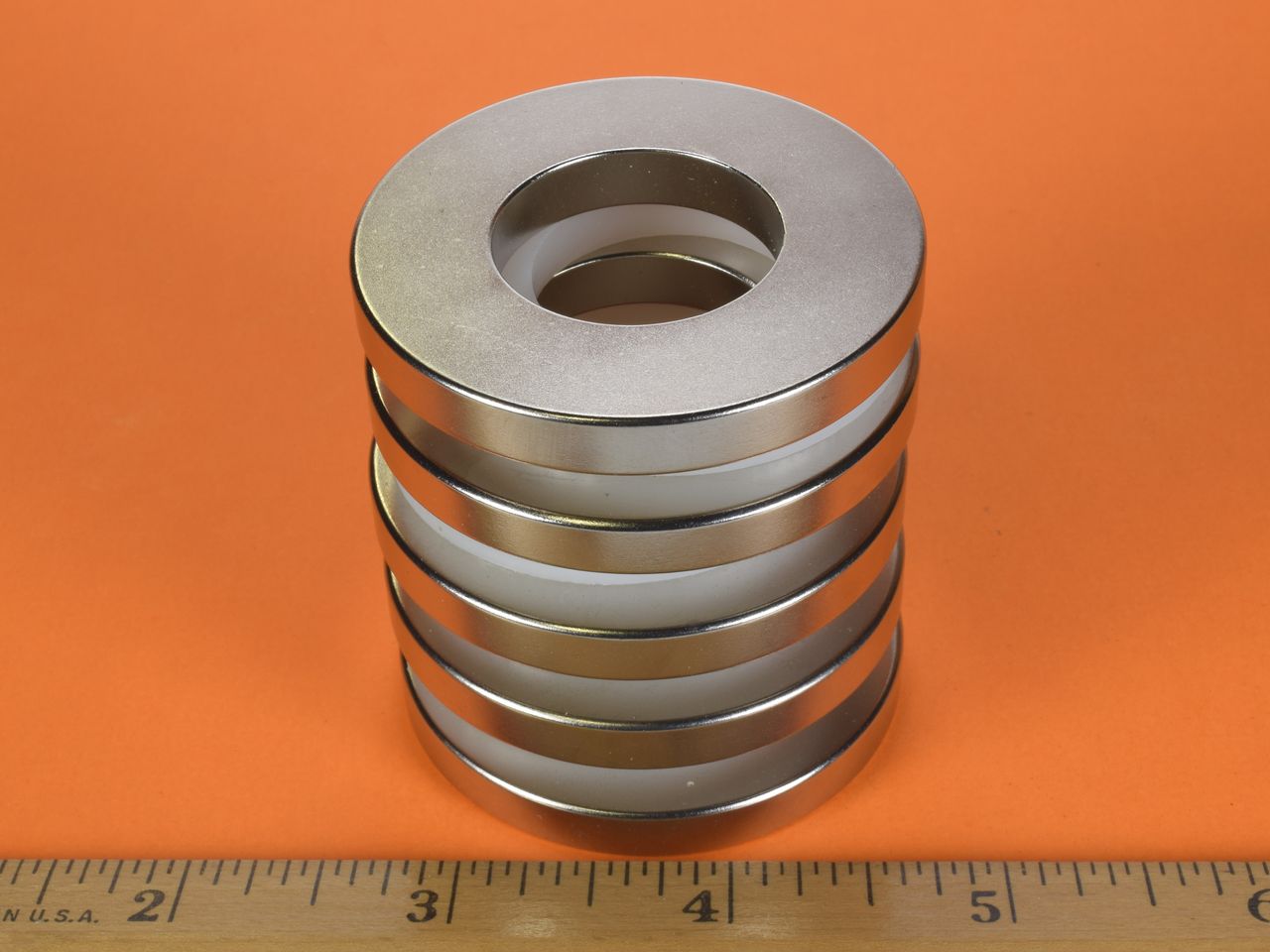

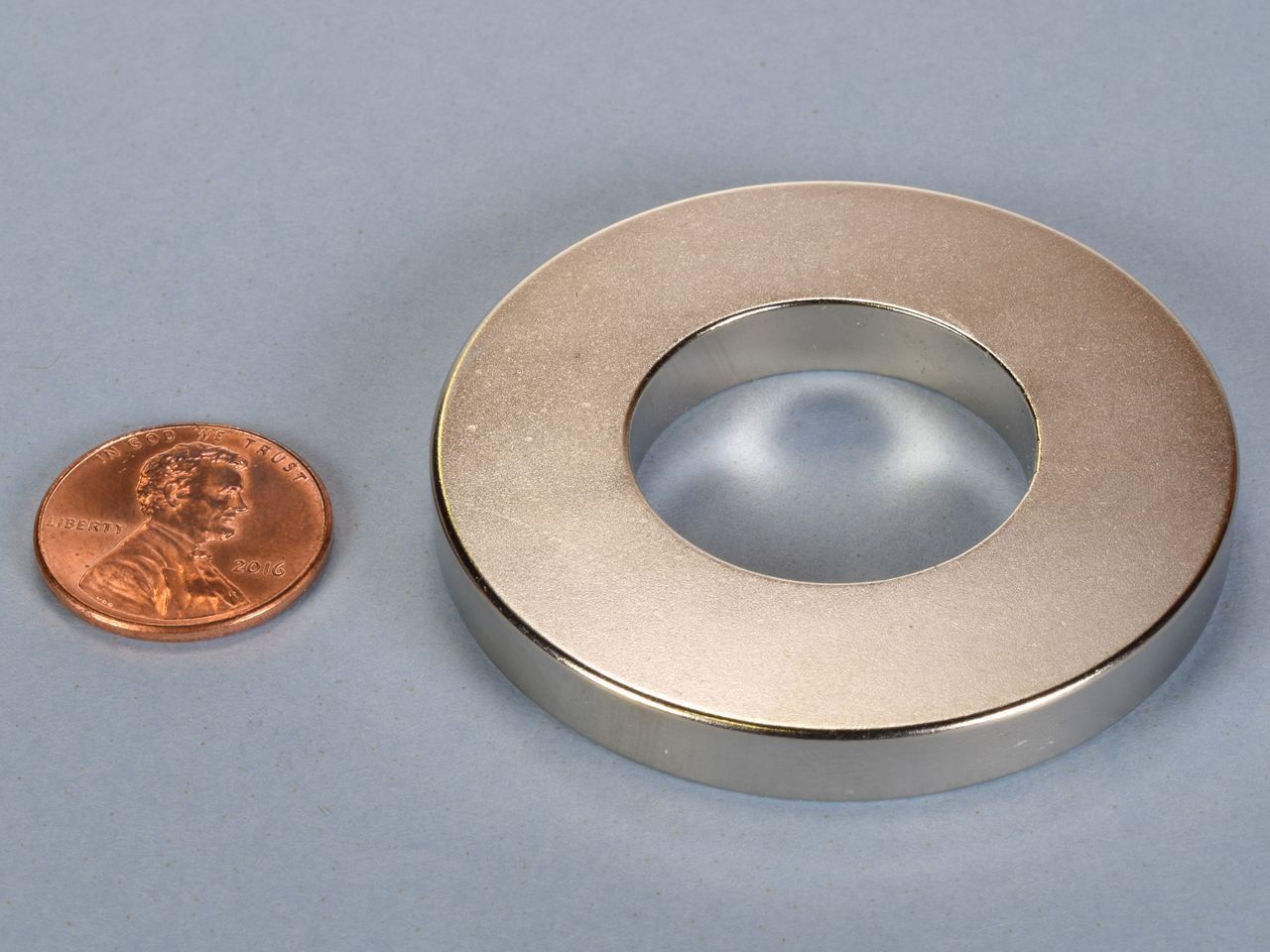

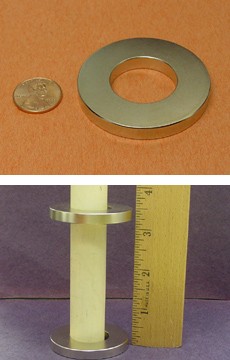

RY0X04 - Neodymium Ring Magnet

• Dimensions: 2" od x 1" id x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 2.55 oz. (72.4 g)
• Pull Force, Case 1: 39.61 lbs
• Pull Force, Case 2: 158.3 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These large rings are very strong and good for a variety of applications and experiments. They must be handled with care as they will pinch fingers and probably break if they are allowed to slam together.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
