SX8 - Neodymium Sphere Magnet

Description
Technical
Downloads

Dimensions: 1 1/2" diameter
Tolerances: ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 7.66 oz (217 g)
Pull Force, Case 1: 58.80 lbs
Pull Force, Case 2: 67.08 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

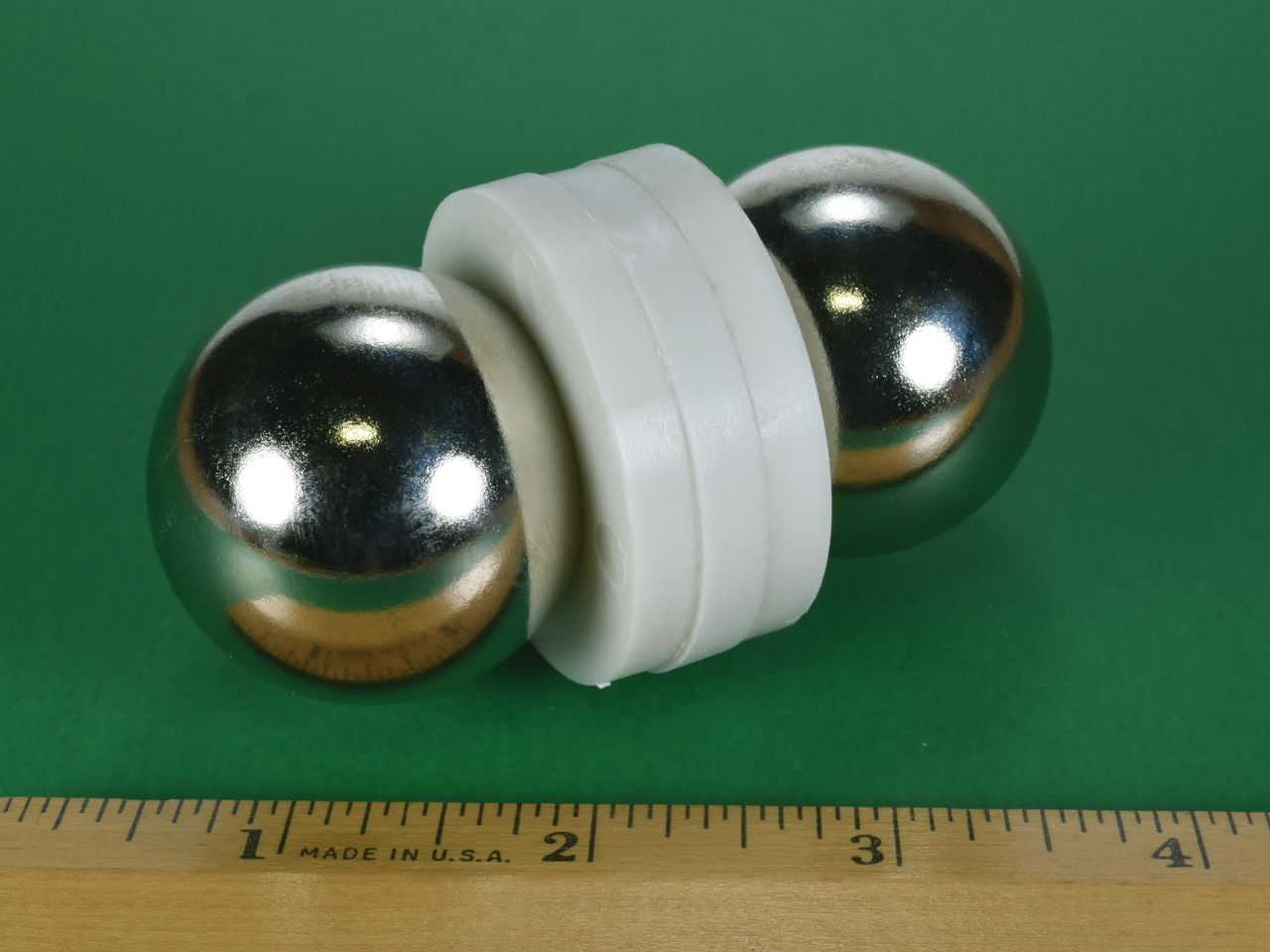

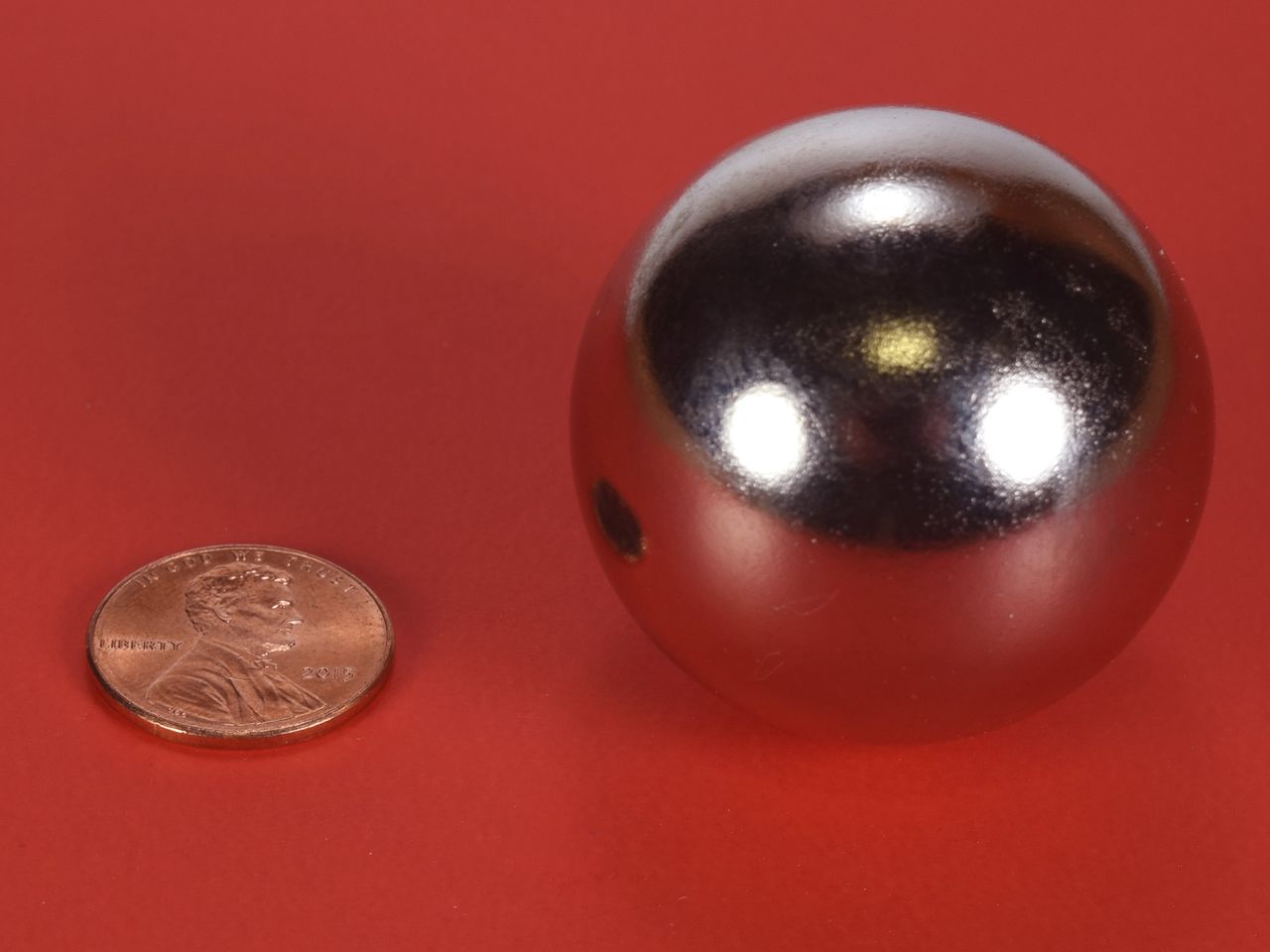

These 1 1/2" sphere magnets are incredibly powerful. The magnetic fields of sphere magnets are concentrated more at the poles than disc or block magnets. Please use extreme caution as these large spheres are super strong and can be dangerous.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $44.55

Quantity:

Qty:

Price ea.	Qty
$44.55	1
$43.56	2
$42.57	3-4
$41.58	5-6
$40.59	7-9
$39.60	10-24
$38.61	25-49
$37.62	50-99
$36.63	100-249
$35.64	250-499
For pricing at higher order quantities, please email us!
