BX888

Description
Technical
Downloads

Dimensions: 1 1/2" x 1/2" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.63 oz. (46.1 g)
Pull Force, Case 1: 42.63 lbs
Pull Force, Case 2: 58.28 lbs
Surface Field: 4998 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

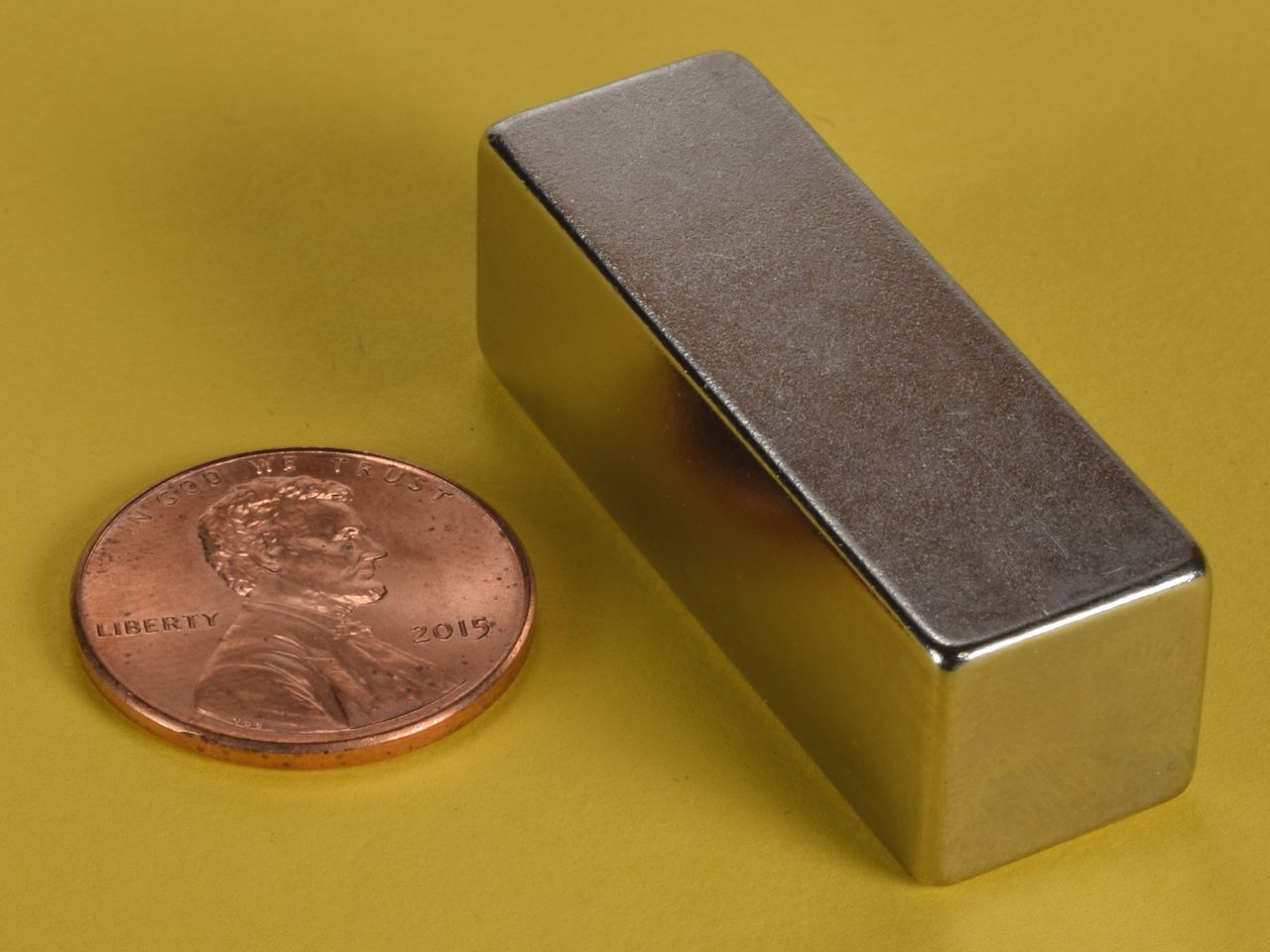

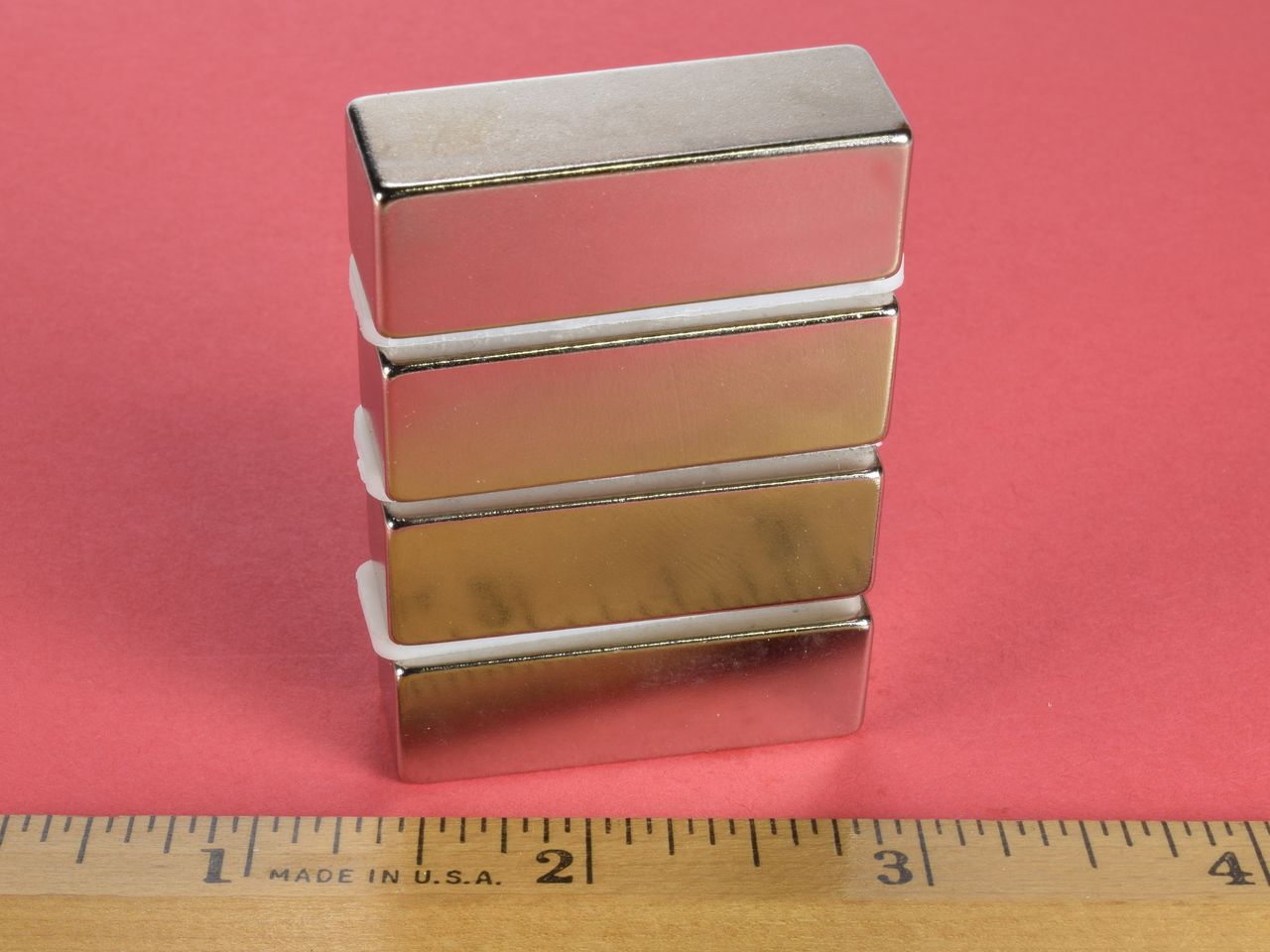

These 1.5" blocks are very strong and very sturdy. Lots of holding power in a fairly compact shape. Easy enough to handle for the experienced user but still easy enough to get pinched if you're not careful. Use caution when working with this mighty block.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $10.51

Quantity:

Qty:

Price ea.	Qty
$10.51	1
$10.28	2-4
$10.04	5-9
$9.81	10-24
$9.58	25-49
$9.34	50-99
$9.11	100-249
$8.88	250-499
$8.64	500-999
$8.41	1000-2499
For pricing at higher order quantities, please email us!
