Products › Neodymium Magnets › Disc Magnets & Cylinder Magnets › DA1 - Neodymium Disc Magnet

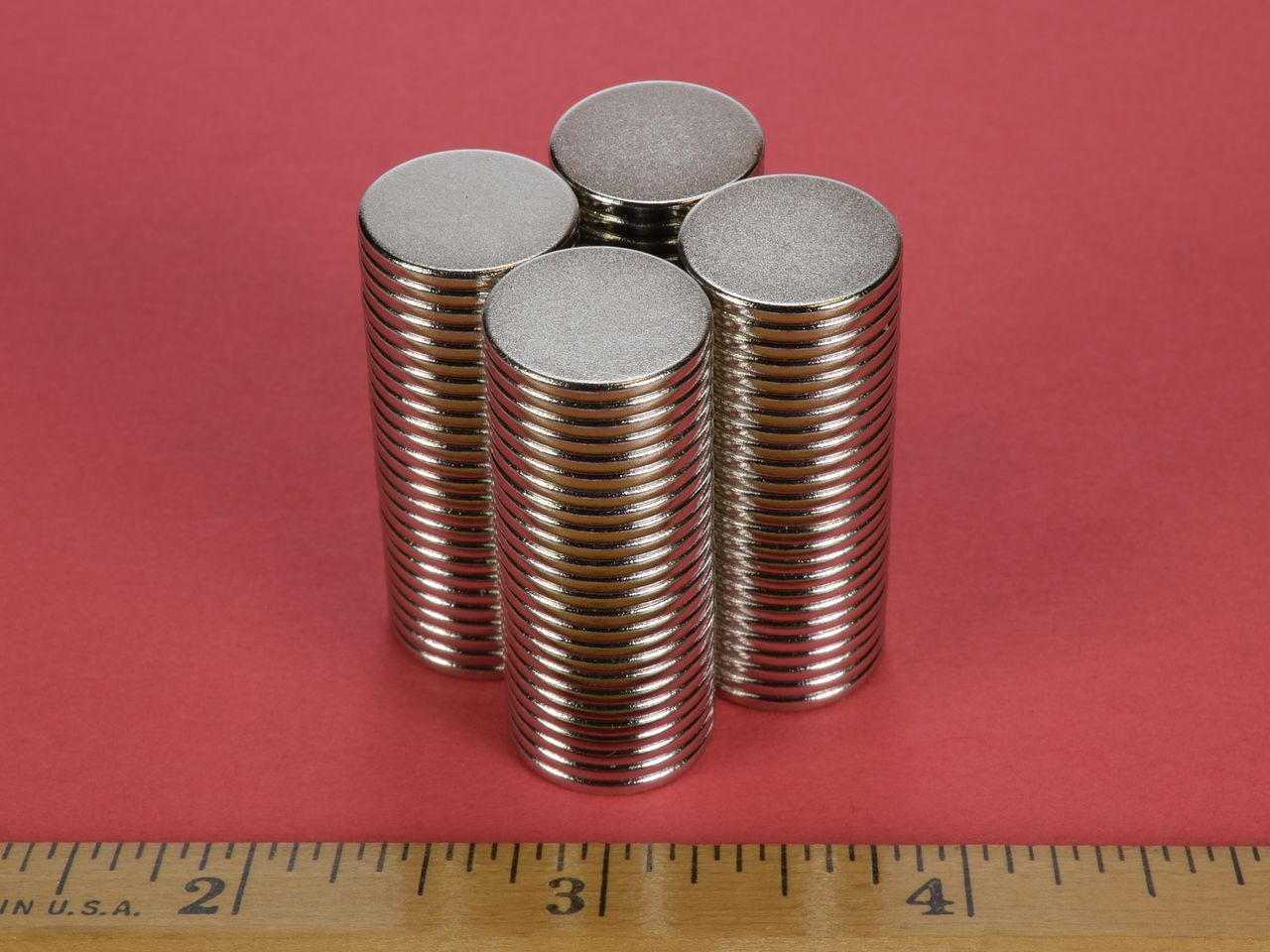

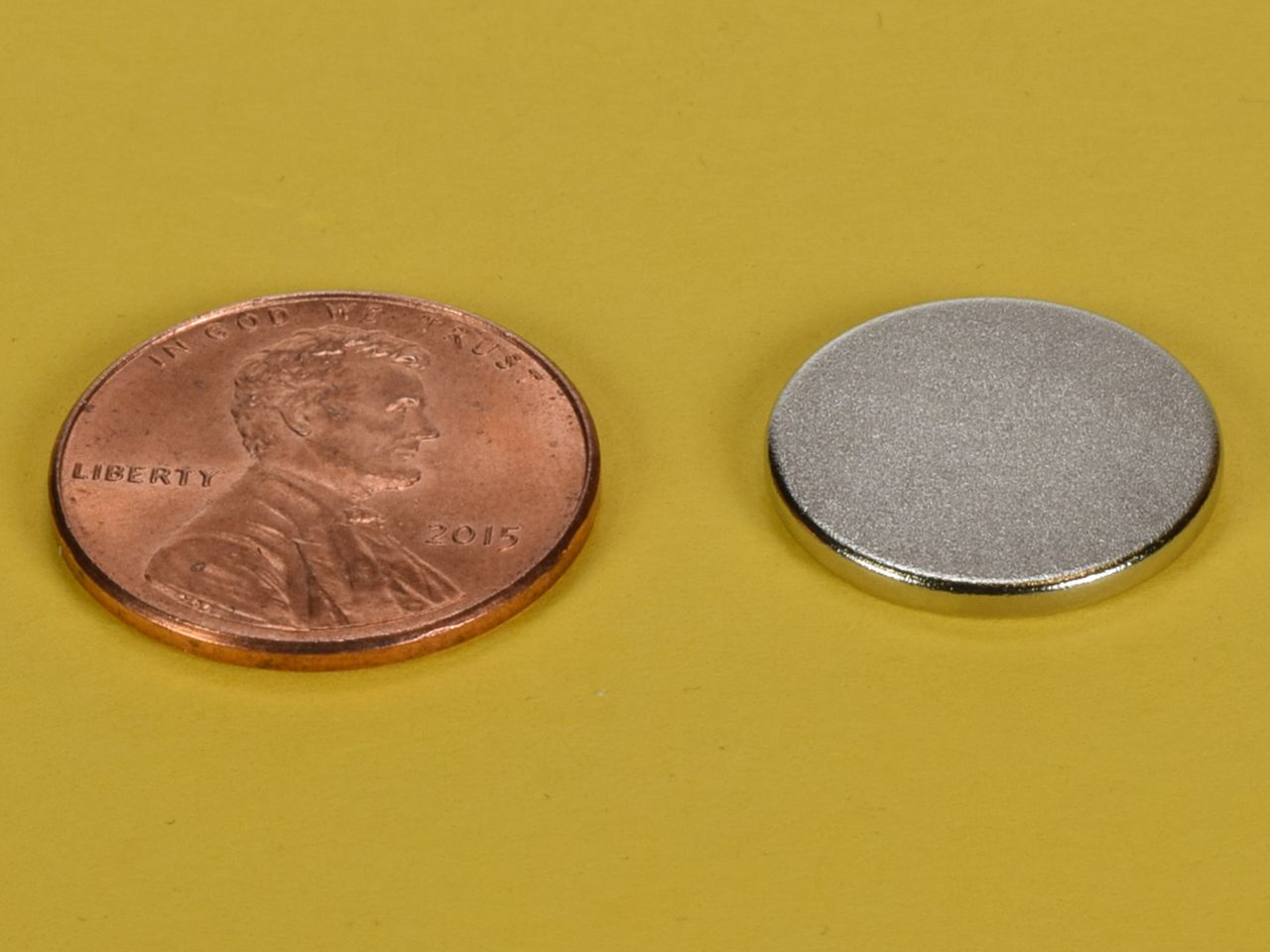

DA1 - Neodymium Disc Magnet

DA1

DA1

Description
Technical
Downloads

Dimensions: 5/8" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0831 oz. (2.36 g)
Pull Force, Case 1: 4.06 lbs
Pull Force, Case 2: 24.90 lbs
Surface Field: 1294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Thin, yet very strong for its size, the DA1 is a great general purpose magnet that can be used for a wide variety of magnetic applications.

This size is also available in grade N52 as part number DA1-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.90

Quantity:

Qty:

Price ea.	Qty
$0.90	1-24
$0.88	25-49
$0.86	50-99
$0.84	100-249
$0.82	250-499
$0.80	500-999
$0.78	1000-2499
$0.76	2500-4999
$0.74	5000-9999
$0.72	10000-24999
For pricing at higher order quantities, please email us!
