MM-B-25

Description
Technical
Downloads

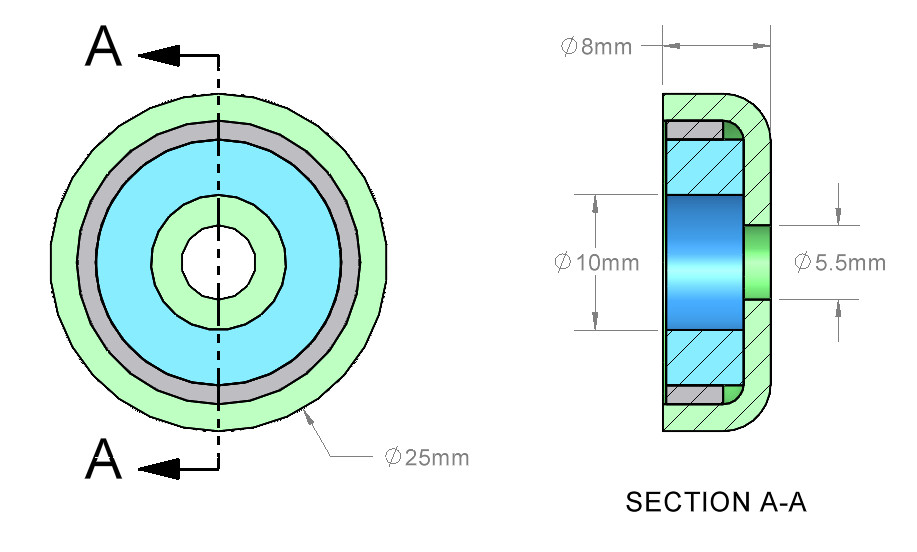

Dimensions:
    D=25mm (0.98")
    d1=5.5mm (0.22") (Sized for M5 screw)
    d2=10mm (0.39") (Straight counterbored hole)
    h=8mm (0.31")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.77 oz. (21.8 g)
Pull Force: 30.9 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

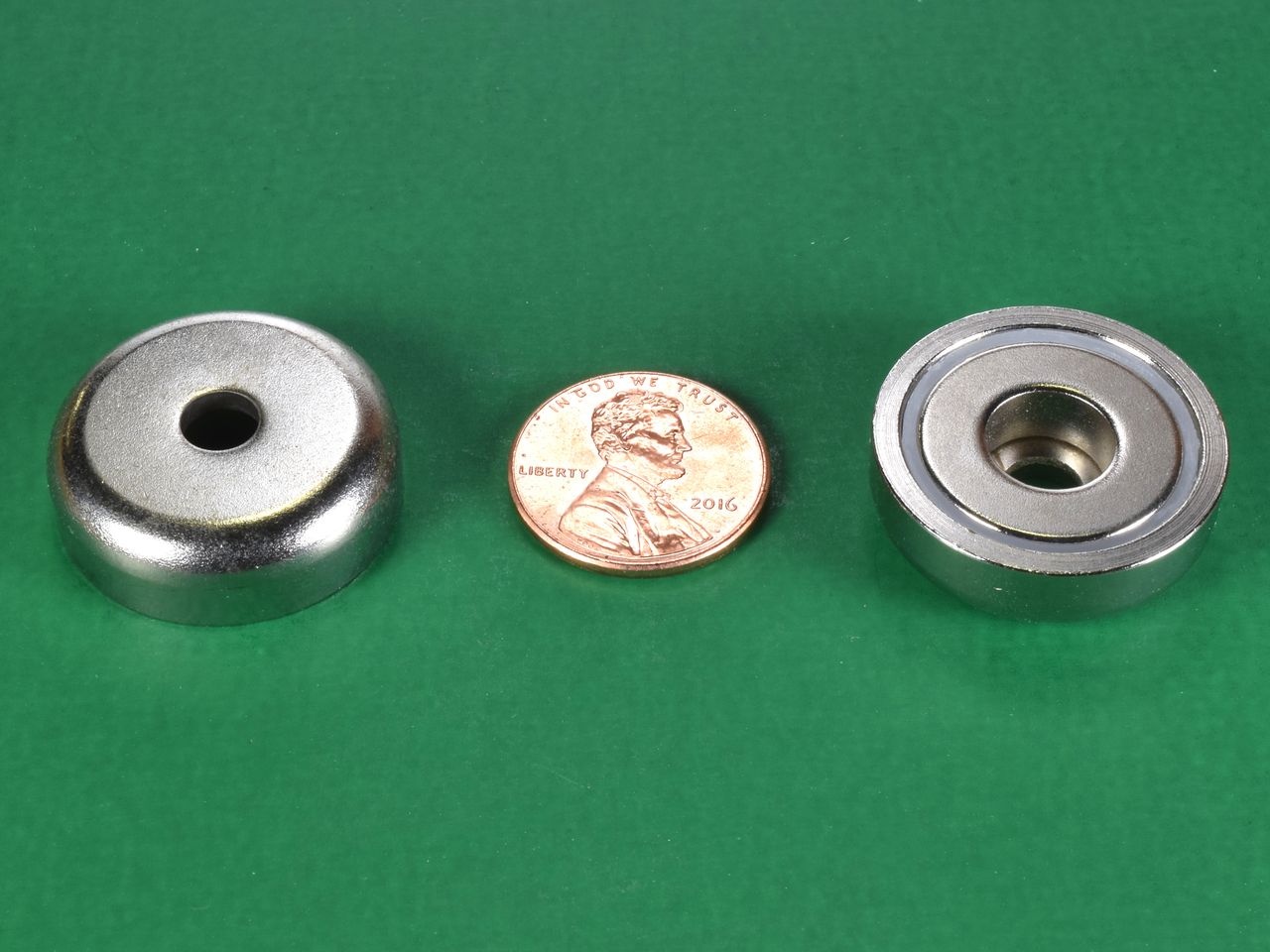

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $4.00

Quantity:

Qty:

Price ea.	Qty
$4.00	1-4
$3.91	5-9
$3.82	10-24
$3.73	25-49
$3.64	50-99
$3.56	100-249
$3.47	250-499
$3.38	500-999
$3.29	1000-2499
$3.20	2500-4999
For pricing at higher order quantities, please email us!
