RMB-B-X8 - Neodymium Rubber Coated Block Mounting Magnet

RMB-B-X8RMB-B-X8
$5.87
-
+

Quantity Discounts

Price ea.Qty
$5.87 1
$5.742-4
$5.615-9
$5.4810-24
$5.3525-49
$5.2250-99
$5.09100-249
$4.96250-499
$4.83500-999
$4.701000-2499
For pricing at higher order quantities,
please email us!
  • product description icon   Description
  • product download icon   Downloads

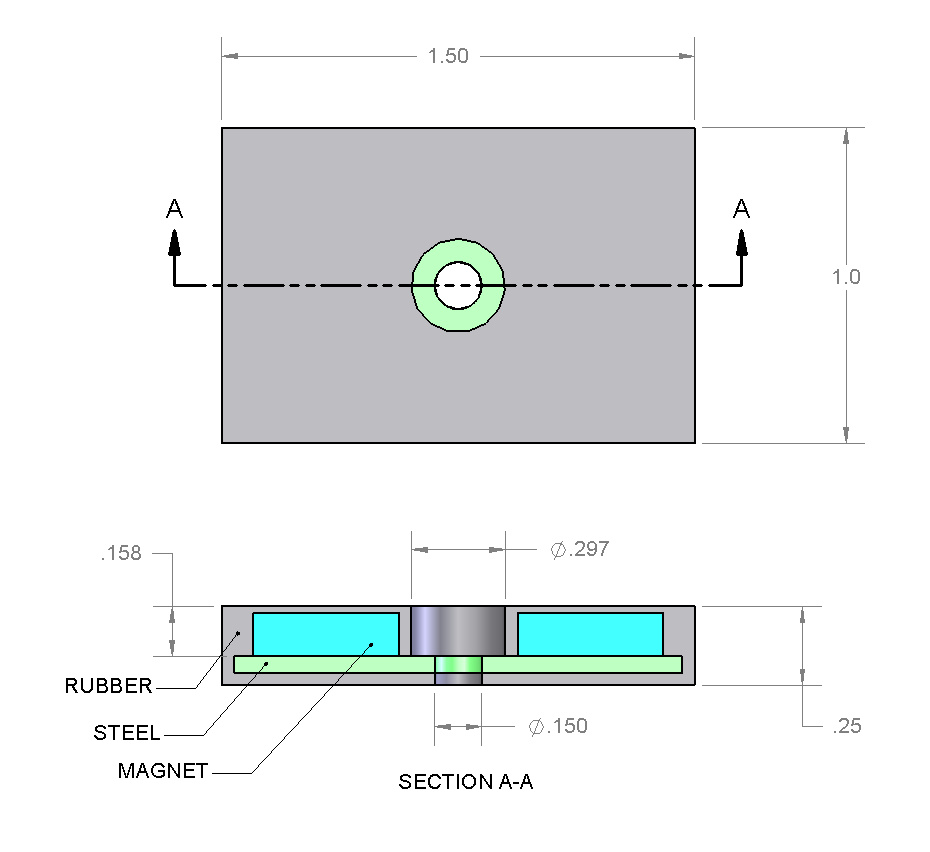

  • Dimensions:
        1 1/2" x 1" x 1/4" thick
        Hole Sized for #6 Screw
  • Material: Assembly of:
        Steel backplate,
        NdFeB magnet, grade N42, &
        Silicone Rubber Coating, Black
  • Plating/Coating: Silicone Rubber
  • Weight: 0.912 oz. (25.85 g)
  • Pull Force: 25 lbs
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

This silicone rubber coated mounting magnet is another new, water resistant design available exclusively at K&J Magnetics.  It allows for easy mounting with a common screw.

The best feature of these magnets is their high-friction silicone rubber coating.  When mounting objects to a vertical surface (i.e., a steel wall), these magnets are great for holding up objects without excessive or expensive magnetic strength.

These magnets are water resistant, but not strictly waterproof. The zinc plated magnets are encased in rubber, but a small area of steel is exposed. For more rust resistance, consider caulking the hole and your screw after installation.


SurfaceSupported Load [lb]
Thick (1") steel plate, cold rolled steel17.2
Steel Door, Painted12.2
Refrigerator (painted steel)5.0
Filing Cabinet10.6
Magnet-to-magnet thru 1/8" glass5.4


SpecSheetClick here to download a PDF Specification Sheet.
DrawingClick here to download a PDF drawing of this product.
CertClick here to download a Certificate of Compliance for this product.
RoHSClick here to download a RoHS Statement of Compliance for this product.
CMRTClick here to download a Conflict Minerals Reporting Template (CMRT).
