> MMS-B-Z0 - Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet

3 x 3/4 Inch Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet N42 PN: MMS-B-Z0

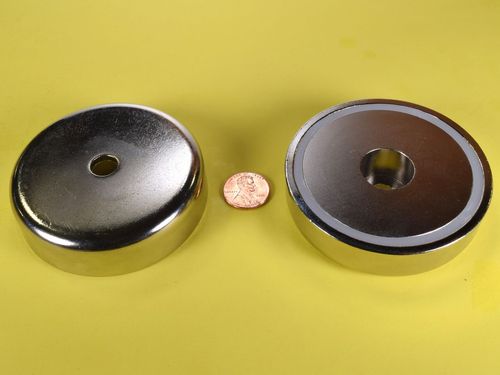

3 x 3/4 Inch Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet N42 --thumbnail-1

3 x 3/4 Inch Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet N42 --thumbnail-2

$112.82

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$112.82	1
$110.32	2	2%
$107.81	3-4	4%
$105.30	5-9	7%
$102.79	10-14	9%
$100.30	15-19	11%
$97.79	20-24	13%
$95.28	25-49	16%
$92.77	50-99	18%
$90.26	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

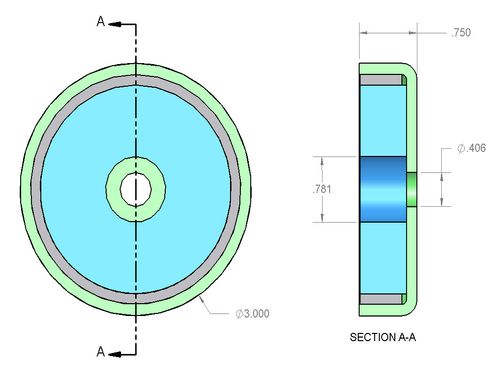

Dimensions:
    Diameter = 3" (3.00")
    Hole Size = 3/8" Screw
    Height = 3/4" (0..750")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 19.60 oz. (555.7 g)
Pull Force: 343.6 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
