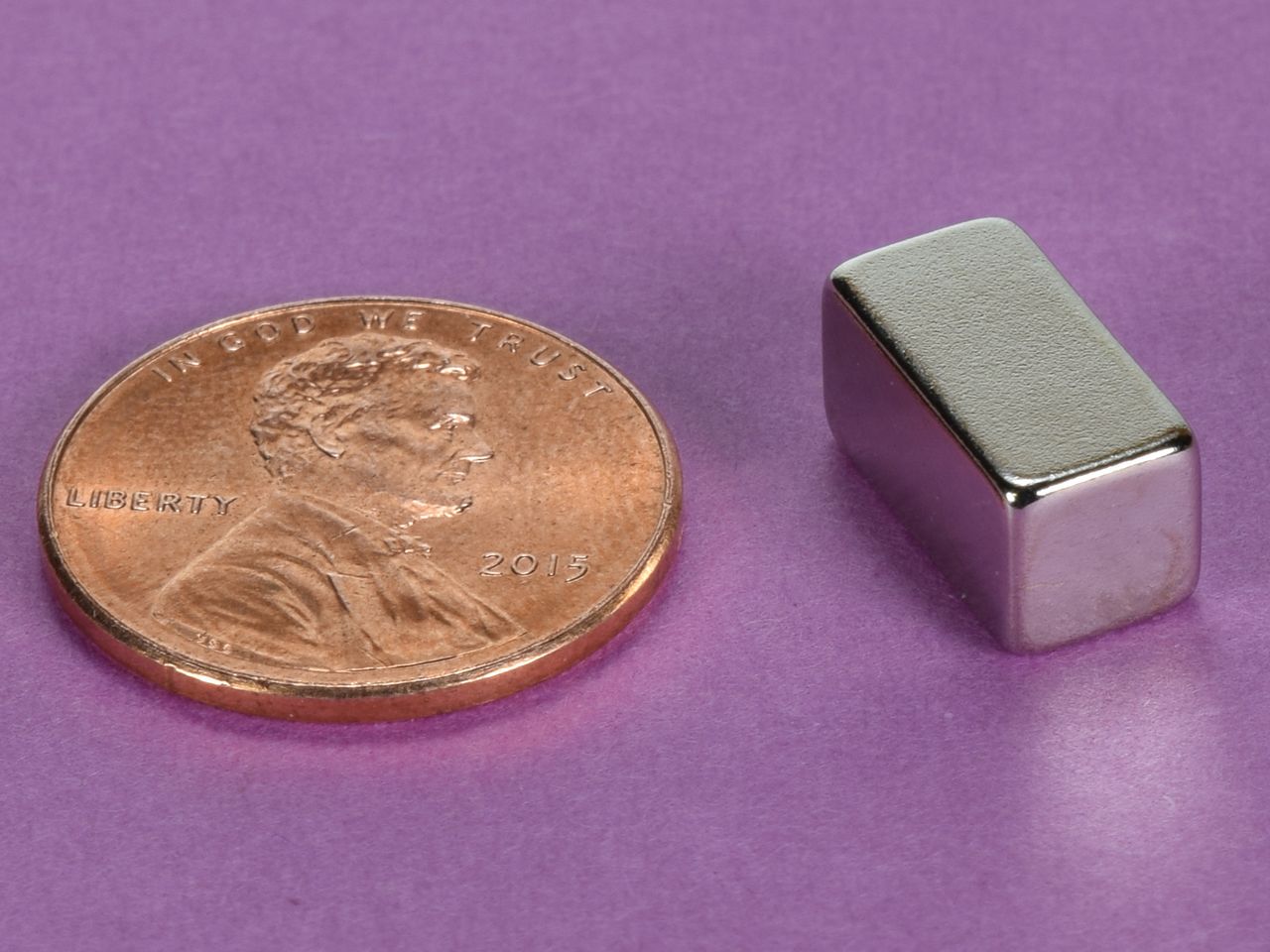

B844 - Neodymium Block Magnet

• Dimensions: 1/2" x 1/4" x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.135 oz. (3.84 g)
• Pull Force, Case 1: 7.63 lbs
• Pull Force, Case 2: 10.46 lbs
• Surface Field: 5248 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

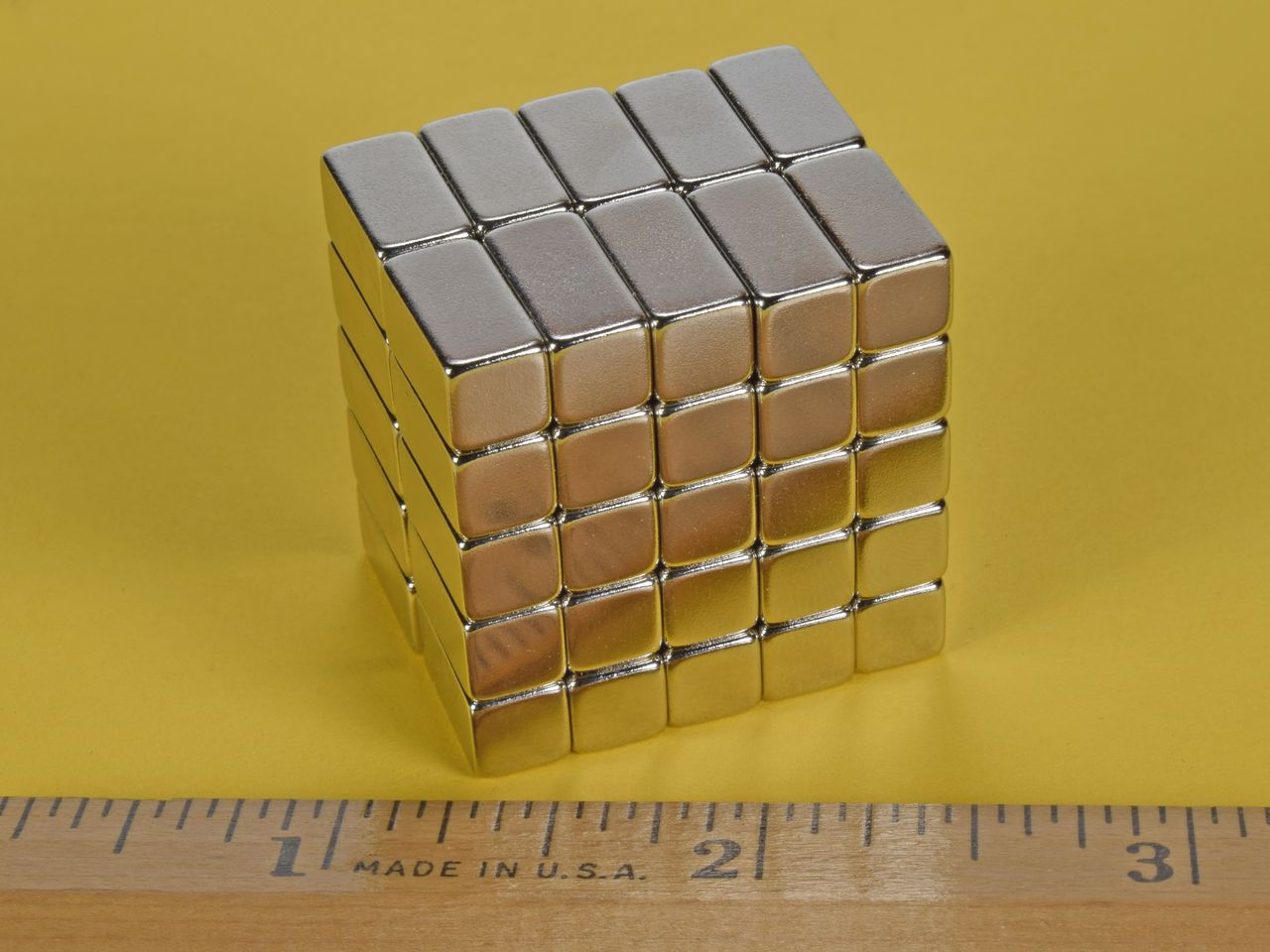

These little blocks are very handy. Not too big, not too small. They are great for hanging papers, posters and just anything else you can think of.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
