NSW82 - Steel Cups and Washers

NSW82NSW82
$0.45
-
+

Quantity Discounts

Price ea.Qty
$0.45 1-9
$0.4110-24
$0.3925-49
$0.3650-99
$0.35100-249
$0.33250-499
$0.31500-999
$0.291000-2499
$0.272500-4999
For pricing at higher order quantities,
please email us!
  • product description icon   Description
  • product download icon   Downloads

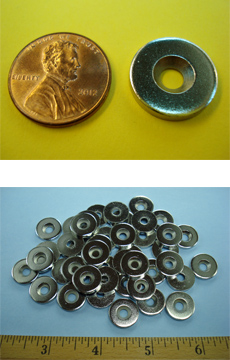

Steel Washer, Countersunk, Nickel Plated
5/8" diameter x 0.1" thick

These washers are designed for use with our NSC82 steel cups and D82 disc magnets. They can be used to create a clean, modern latch assembly for doors and hatches. The washer is countersunk to accept a wood or metal screw to provide a flat surface area for magnet contact.

These parts are not magnets. Magnets and mounting screws not included with this part. Magnets can be purchased separately.

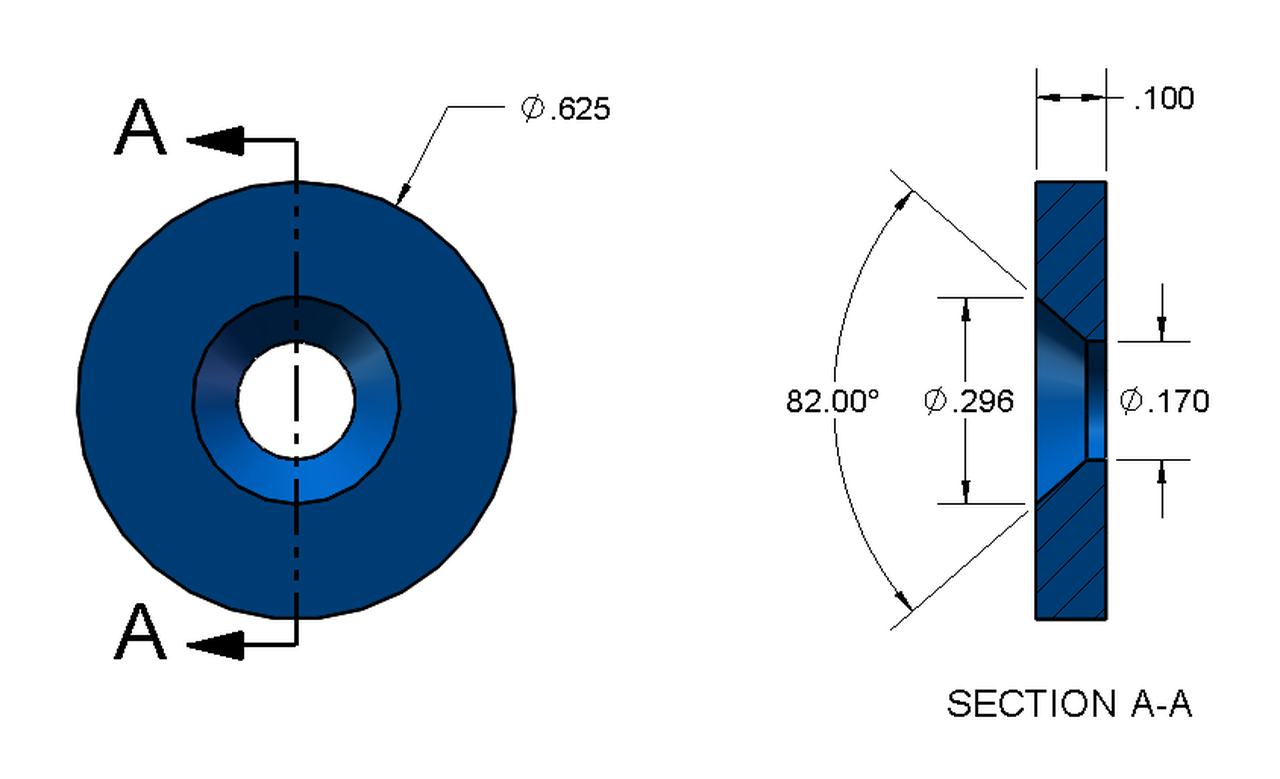

DrawingClick here to download a PDF drawing of this product.
CertClick here to download a Certificate of Compliance for this product.
RoHSClick here to download a RoHS Statement of Compliance for this product.
CMRTClick here to download a Conflict Minerals Reporting Template (CMRT).
OriginClick here to download a Certificate of Origin for this product.
REACHClick here for a REACH compliance statement.
STEPClick here to download a .STEP file (3D model).
IGSClick here to download an .IGS file (3D model).
