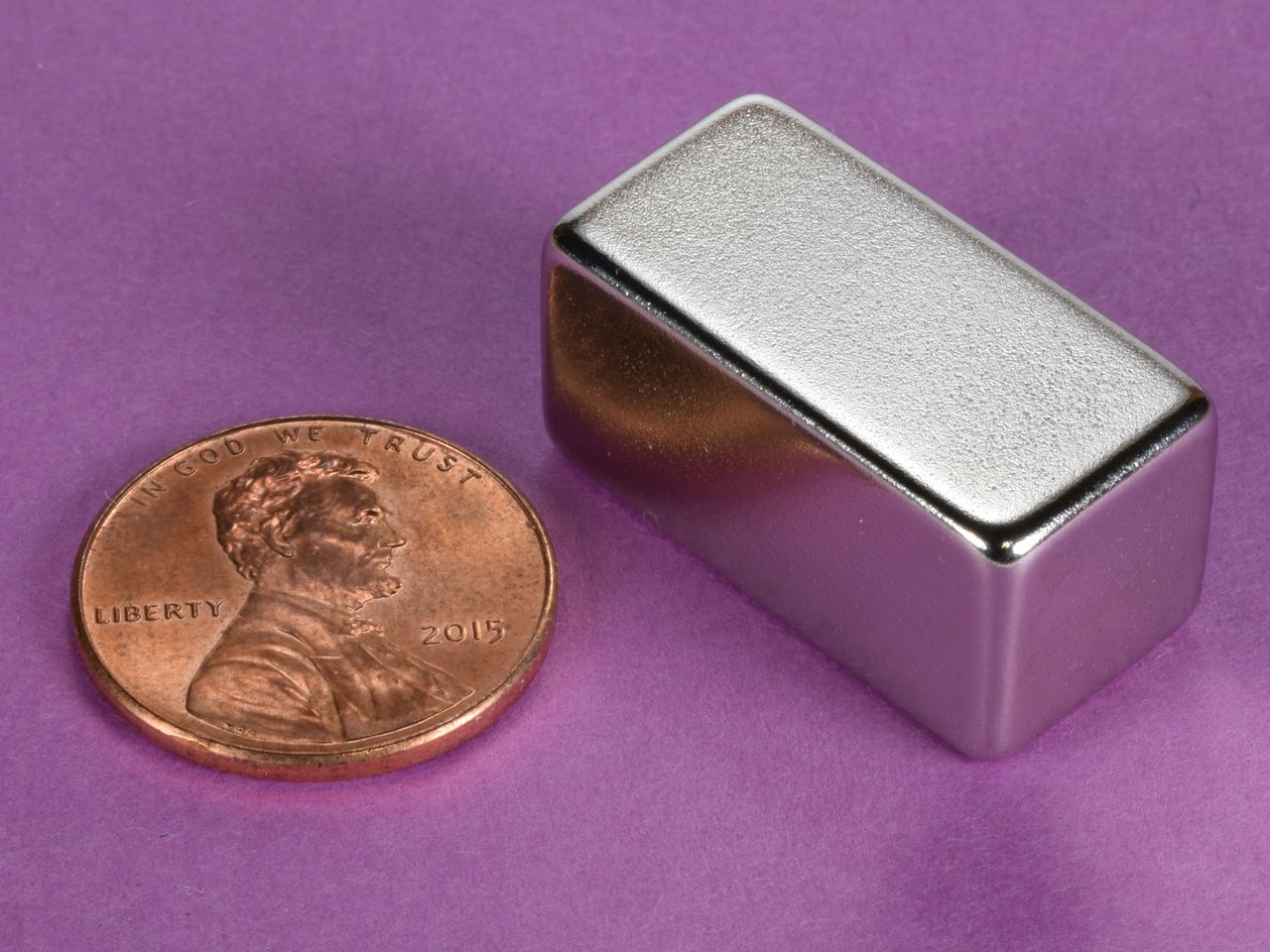

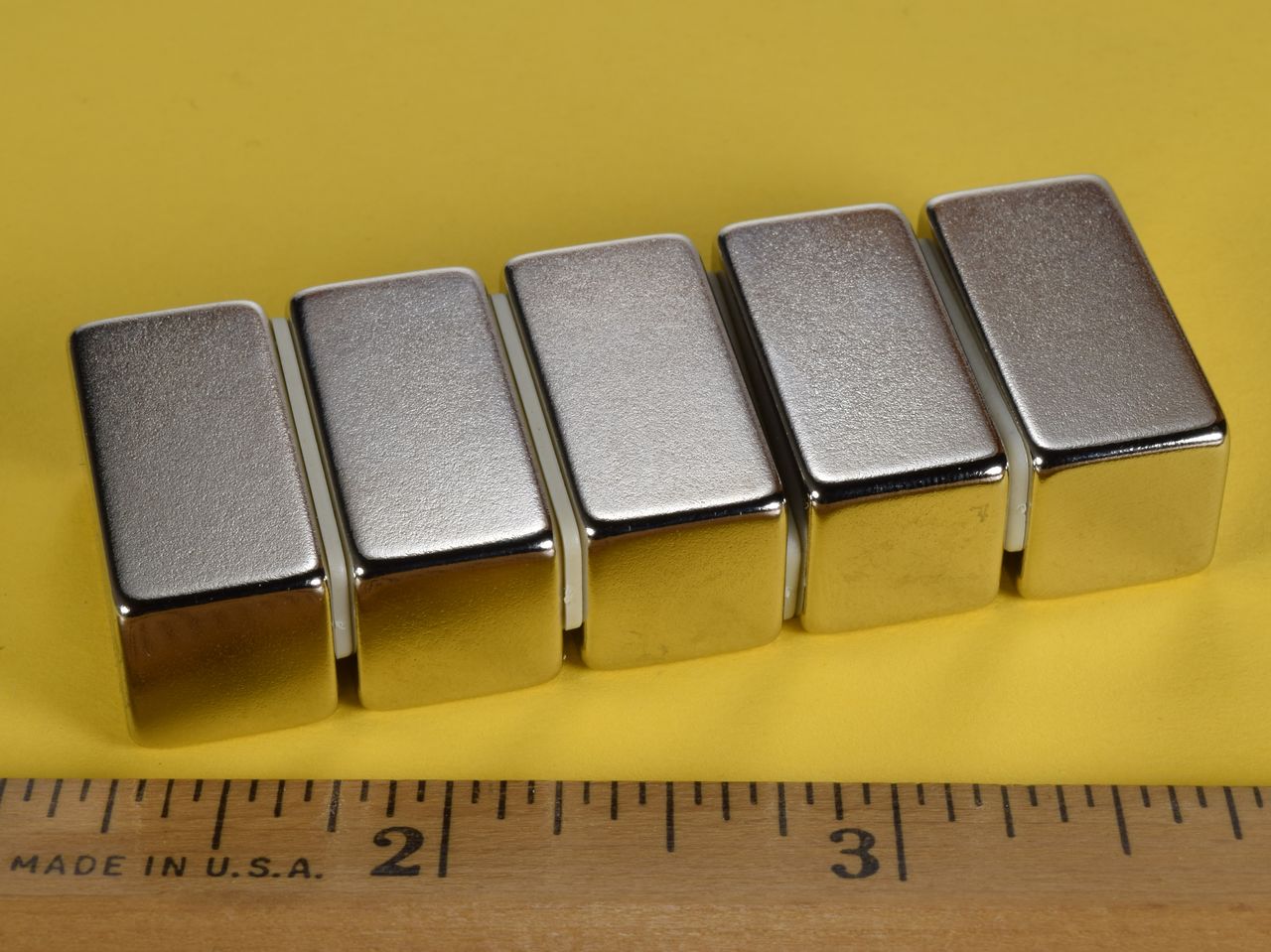

BX088-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1" x 1/2" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.08 oz. (30.7 g)
Pull Force, Case 1: 38.39 lbs
Pull Force, Case 2: 50.09 lbs
Surface Field: 5884 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These sturdy blocks are very strong for their size and must be handled with care to avoid being pinched between two of them. This size is useful for a wide range of magnetic applications.

This size is also available in grade N42, with 2 countersunk holes, as part number BX088DCS.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $9.43

Quantity:

Qty:

Price ea.	Qty
$9.43	1
$9.22	2-4
$9.01	5-9
$8.80	10-24
$8.59	25-49
$8.38	50-99
$8.17	100-249
$7.96	250-499
$7.75	500-999
$7.54	1000-2499
For pricing at higher order quantities, please email us!
