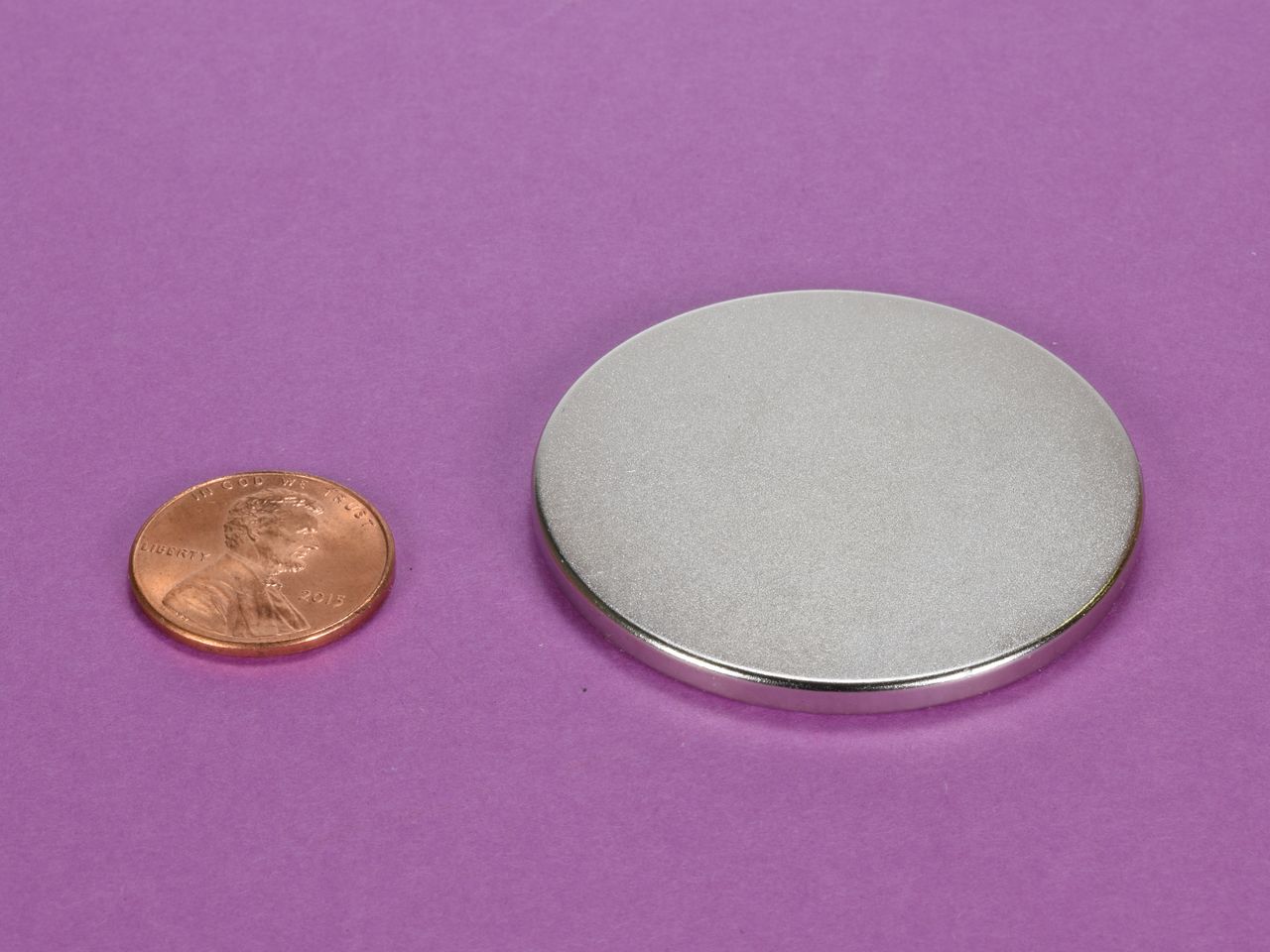

DXC2 - Neodymium Disc Magnet

Description
Technical
Downloads

Dimensions: 1 3/4" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.30 oz. (37.0 g)
Pull Force, Case 1: 24.22 lbs
Pull Force, Case 2: 154.4 lbs
Surface Field: 933 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

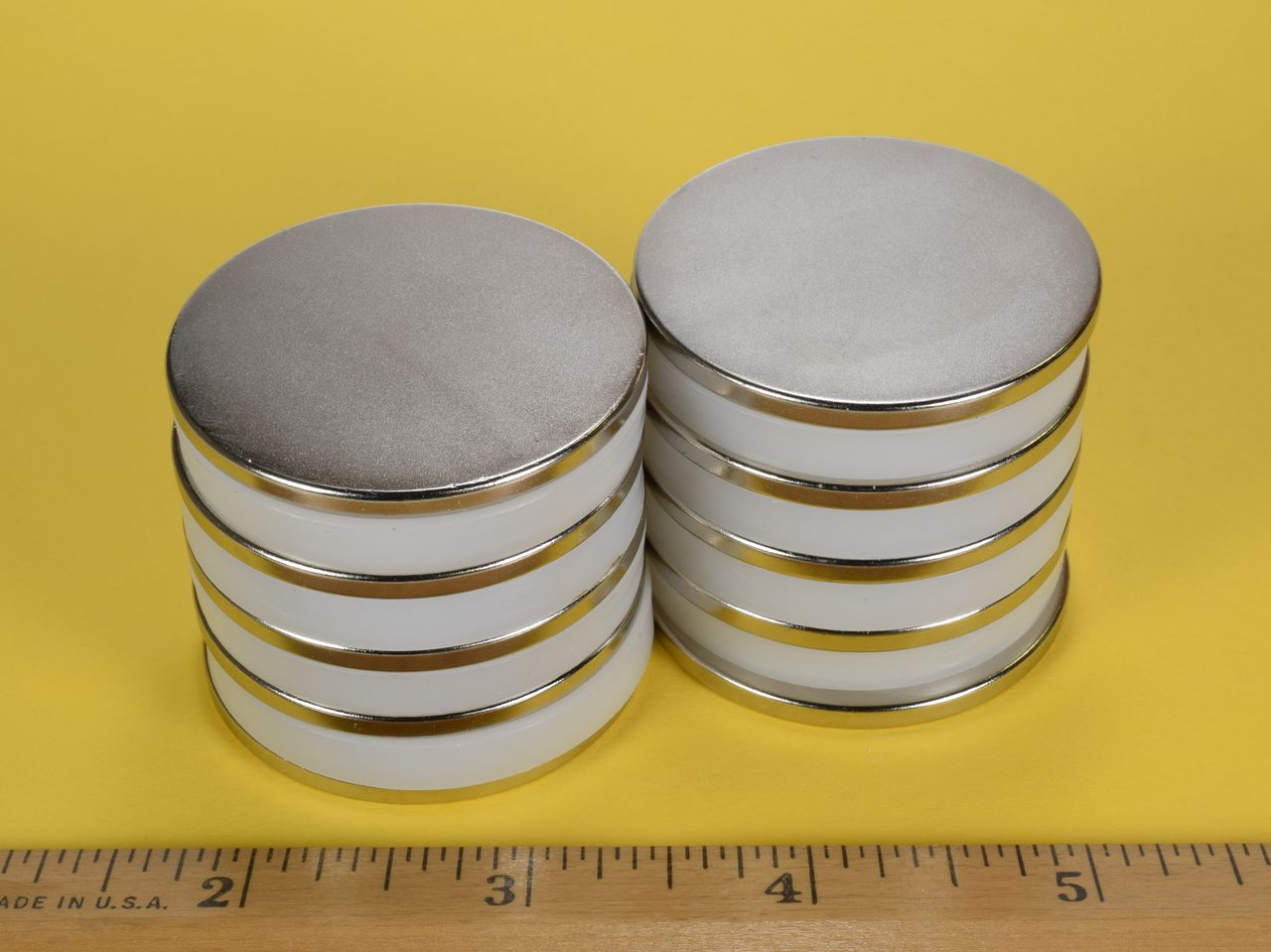

These large thin discs are amazing. With a spacer in between them (as they are shipped), they are only moderately difficult to separate. Remove the spacer and good luck separating them by hand! The DXC2 is a very powerful disc.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $9.45

Quantity:

Qty:

Price ea.	Qty
$9.45	1
$9.24	2-4
$9.03	5-9
$8.82	10-24
$8.61	25-49
$8.40	50-99
$8.19	100-249
$7.98	250-499
$7.77	500-999
$7.56	1000-2499
For pricing at higher order quantities, please email us!
