MM-B-36

Description
Technical
Downloads

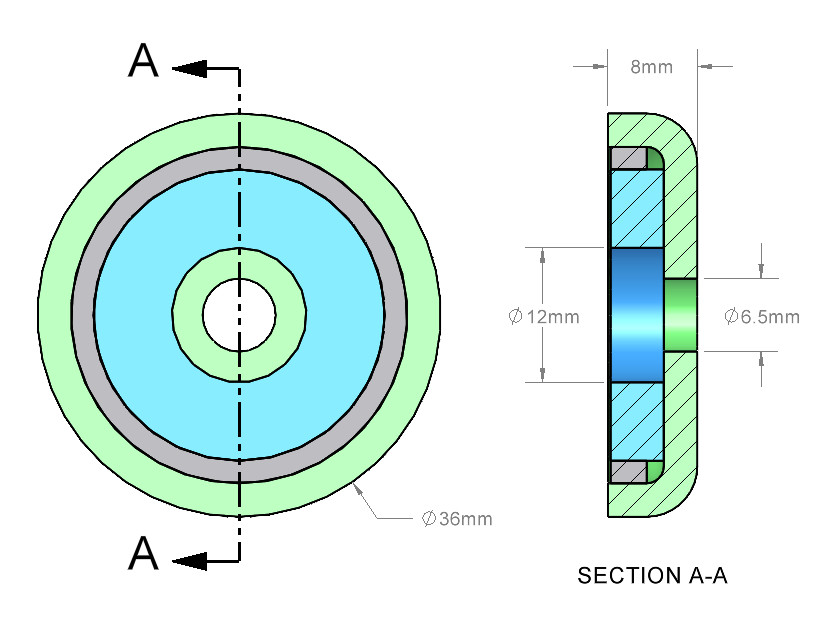

Dimensions:
    D=36mm (1.42")
    d1=6.5mm (0.26") (Sized for M6 screw)
    d2=12mm (0.472") (Straight counterbored hole)
    h=8mm (0.31")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.68 oz. (47.6 g)
Pull Force: 59.5 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

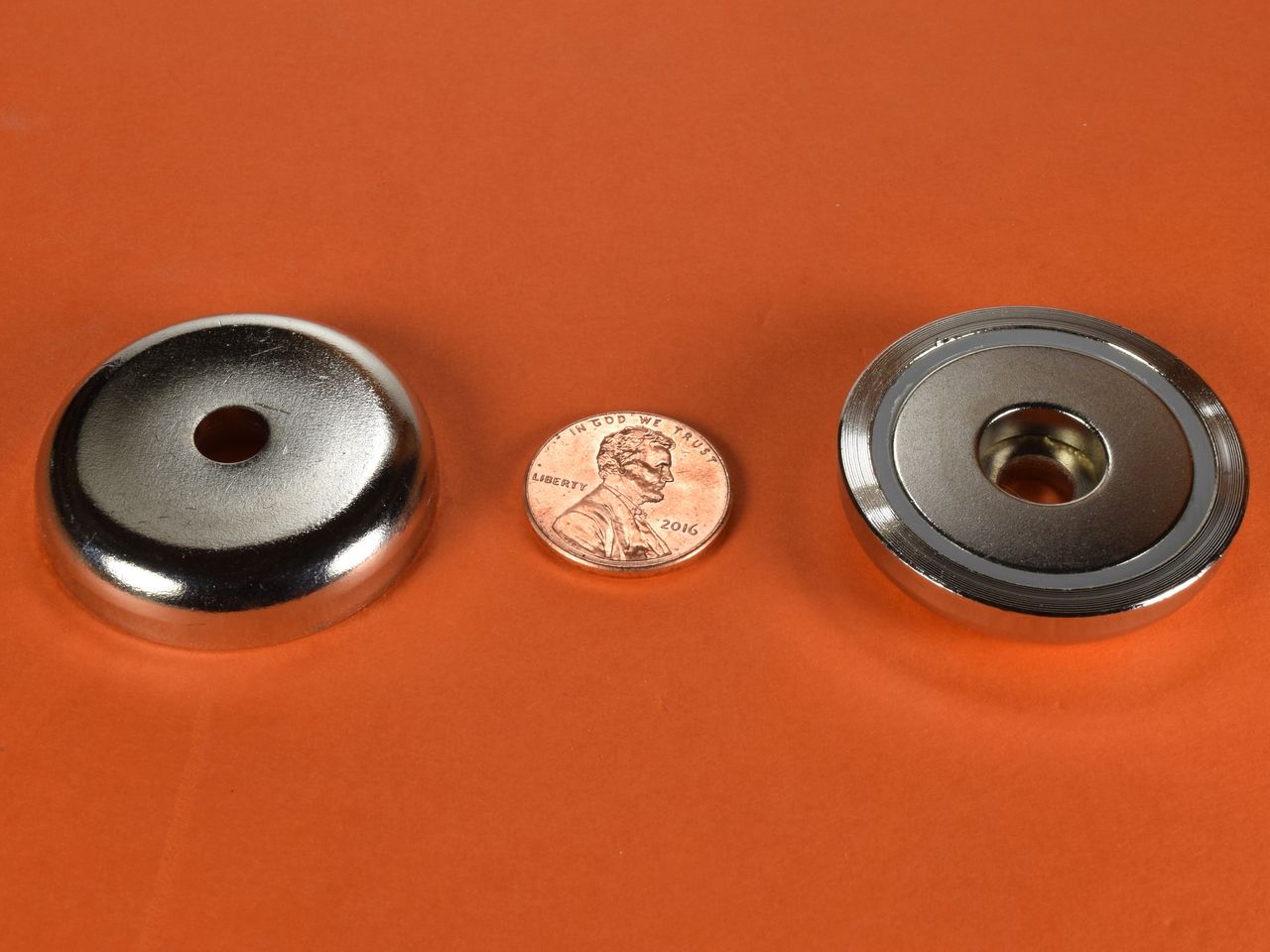

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $7.90

Quantity:

Qty:

Price ea.	Qty
$7.90	1
$7.72	2-4
$7.55	5-9
$7.37	10-24
$7.20	25-49
$7.02	50-99
$6.85	100-249
$6.67	250-499
$6.50	500-999
$6.32	1000-2499
For pricing at higher order quantities, please email us!
