RMD-B-Y0 - Rubber Coated Mounting Magnet

RMD-B-Y0

RMD-B-Y0
  • Description
  • Downloads

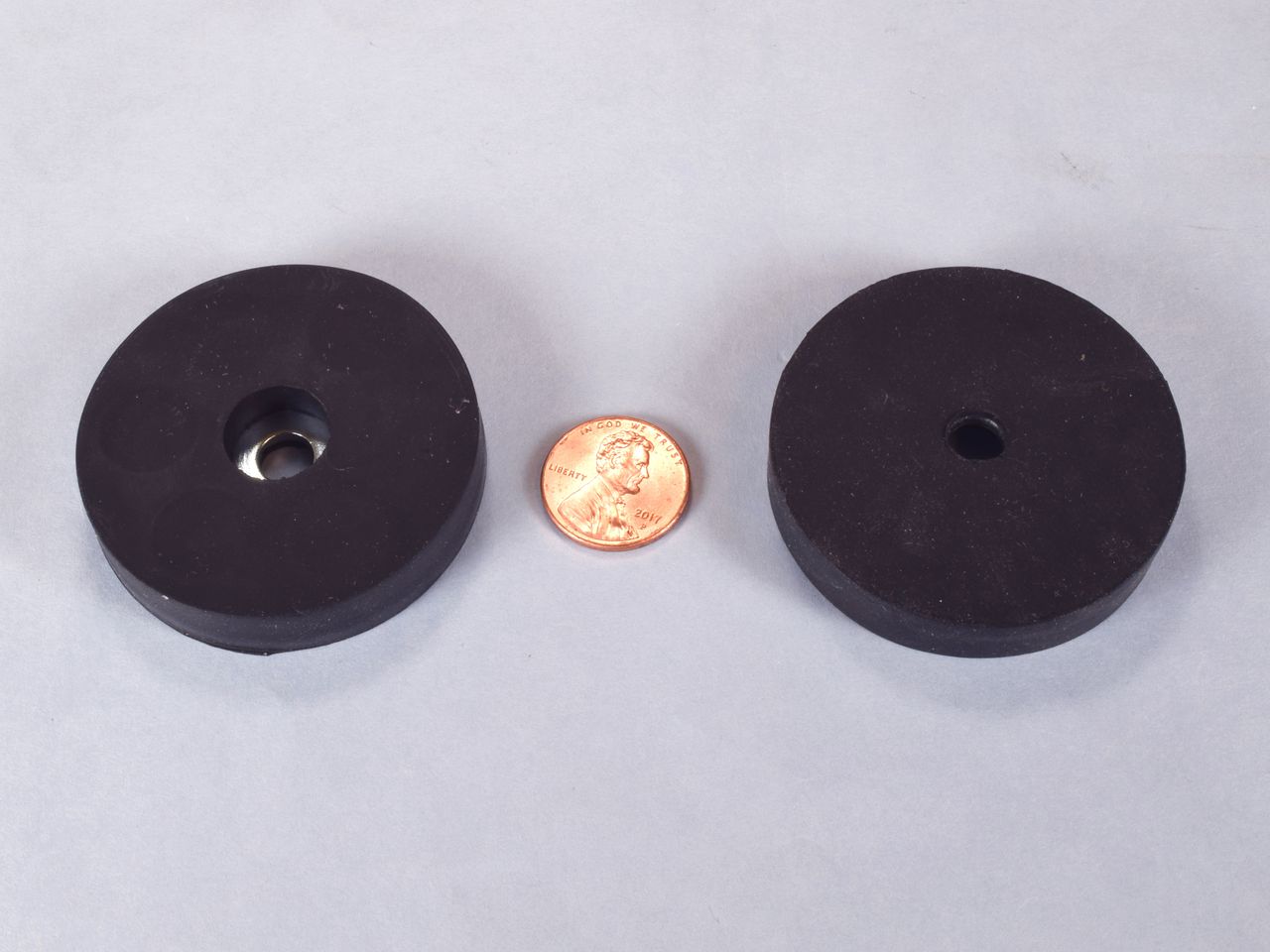

This silicone rubber coated mounting magnet is another new, water resistant design available at K&J Magnetics.  It allows for easy mounting with a common screw.

The best feature of these magnets is their high-friction silicone rubber coating.  When mounting objects to a vertical surface (i.e., a steel wall), these magnets are great for holding up objects without excessive or expensive magnetic strength.

These magnets are water resistant, but not strictly waterproof. The zinc plated magnets are encased in rubber, but a small area of steel is exposed. For more rust resistance, consider caulking the hole and your screw after installation.


SurfaceSupported Load [lb]
Thick (1") steel plate, cold rolled steel48.6
Steel Door, Painted45.4
Refrigerator (painted steel)25.4
Filing Cabinet38.4
Magnet-to-magnet thru 1/8" glass16.4




SpecSheetClick here to download a PDF Specification Sheet.

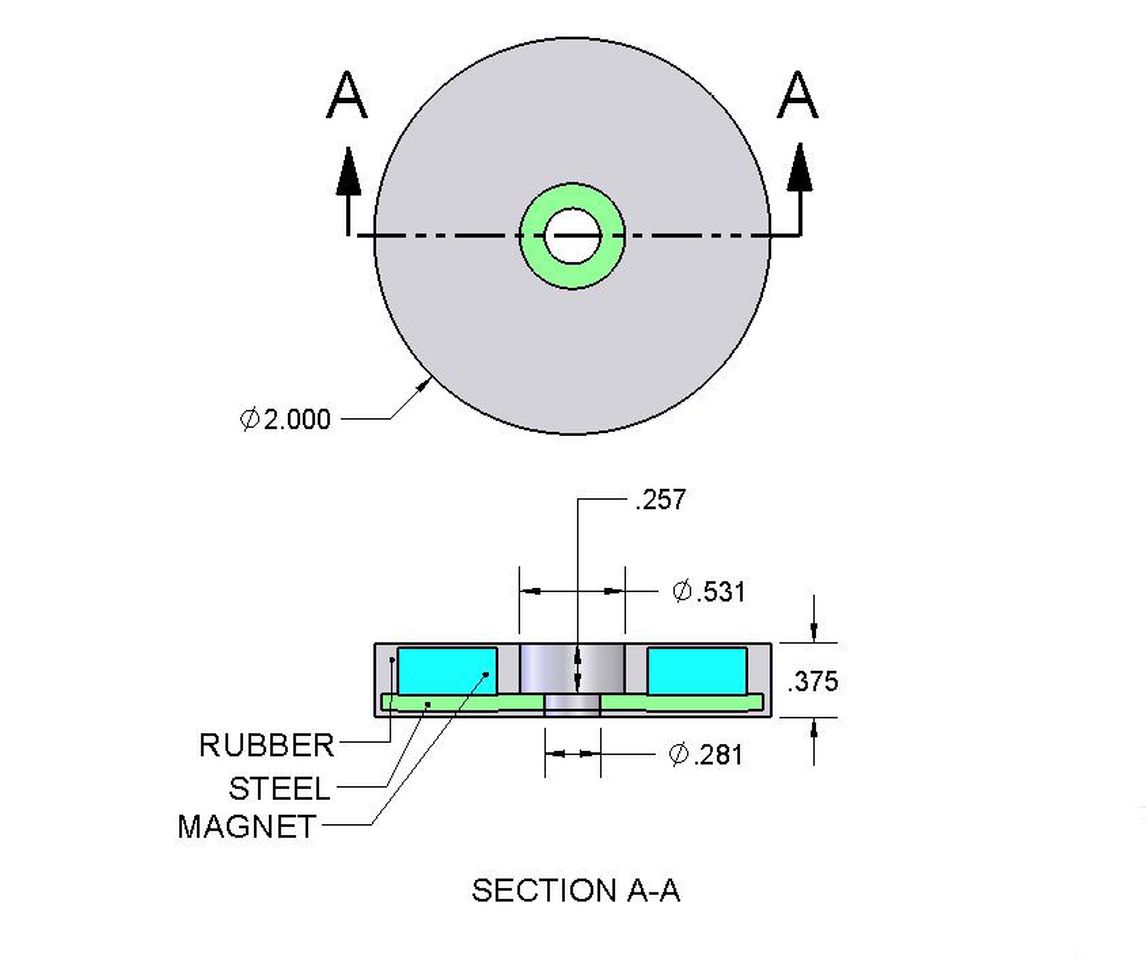

DrawingClick here to download a PDF drawing of this product.
CertClick here to download a Certificate of Compliance for this product.
RoHSClick here to download a RoHS Statement of Compliance for this product.









   Download the free Adobe Acrobat Reader







 Price: $11.93

Quantity:
Qty:


Price ea.Qty
$11.93 1
$11.66 2
$11.40 3-4
$11.13 5-9
$10.87 10-24
$10.60 25-49
$10.34 50-99
$10.07 100-249
$9.81 250-499
$9.54 500-999
